Low Temperature Fire Resistant Heat Shrink Tubing Low Voltage Auxiliary Heat Shrink Sleeve
Low Temperature Fire Resistant Heat Shrink Tubing Low Voltage Auxiliary Heat Shrink Sleeve
Low Temperature Fire Resistant Heat Shrink Tubing Low Voltage Auxiliary Heat Shrink Sleeve
Low Temperature Fire Resistant Heat Shrink Tubing Low Voltage Auxiliary Heat Shrink Sleeve
Low Temperature Fire Resistant Heat Shrink Tubing Low Voltage Auxiliary Heat Shrink Sleeve
Low Temperature Fire Resistant Heat Shrink Tubing Low Voltage Auxiliary Heat Shrink Sleeve
Specifications
Certification :
RoHS, ISO, CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
D/P, D/A, L/C,T/T,
Supply Ability :
500000 Set/Sets per Month
Delivery Time :
7weeks
Packaging Details :
10*10*160
Material :
PE
Function :
Insulation Sleeve
Shrunk Ratio :
2:1 3:1 4:1
Specification :
100X0.1X0.1 cm
Maximum Voltage :
≤1kv
Color :
Red, Green, Yellow, Blue, Black and White
Shrinkage Temperature :
80ºC
Tensile Strength :
10.4MPa
Description

Low Temperature Fire Resistant Heat Shrink Tubing Low-Voltage Auxiliary Materials

Product Description

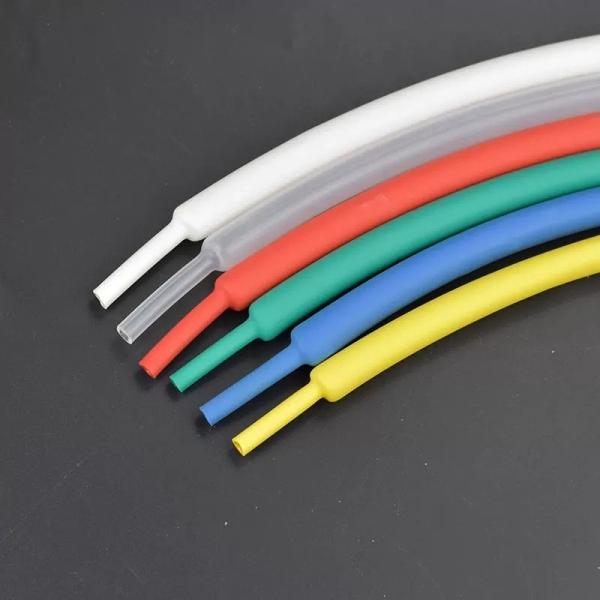

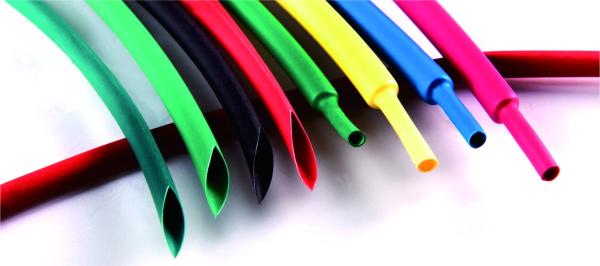

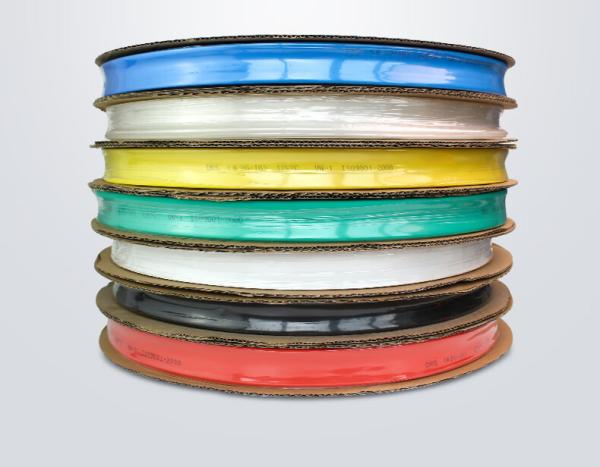

The heat shrink tube is made of the high quality polymer layer with hot melt adhesive(inner layer),when exposed to heat source,the inner layer begin to melt and flow.
When it cools down,inner layer begin to melt and flow.When it cools down,inner layer forms an adhesive layer between the tubing and the component or wire.This provides a water-tight seal and protection for the connectors or wire.

Application
It is widely used in electrical insulation, termination, splicing, cable bundling, color coding, strain relief,
wire marking, identification, wire bundling, mechanical protection, corrosion protection, abrasion
protection, strain relief, wire and cable management and moisture and weather sealing.

Product Parameters

Property Specification Requirement Test Method Typical Value
Tensile strength (Room temp.) Min. 10.4Mpa UL224 12Mpa
Elongation at break (Room temp.) Min. 200% UL224 400%
Tensile strength after aging (158ºC 168hrs) Min. 7.3Mpa UL224 10.4Mpa
Elongation after aging (158ºC 168hrs) Min. 100% UL224 300%
Voltage withstand (Un-aged) Withstand 2.5kV for 1 minute and breakdown UL224 Pass
Voltage withstand (Aged) Withstand at least half of un-aged breakdown UL224 Pass
voltage for 1 minute and breakdown
Corrosion (158ºC 168hrs) No corrosion UL224 No sign of deg.
Longitudinal shrinkage ≤10% UL224 ≤5%
Low-temperature flexibility (-55ºC 4hrs) No cracking UL224 Pass

FAQ

Q:How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.
Q:What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral boxes and brown cartons. we can also pack the goods in your branded boxes after getting your authorization letters.
Q: What is your terms of payment ?
A: Payment≤2000USD, 100% in advance. Payment>2000USD, 50% T/T in advance ,balance before shippment.
