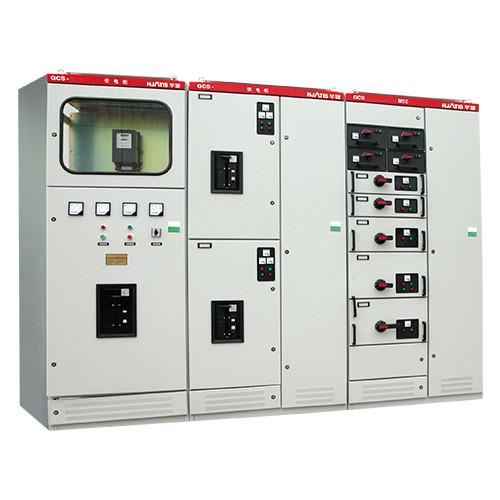

GCS Type Drawer Type Switch Cabinet Low-Voltage Flexible Electrical Equipment

Description

GCS type low-voltage drawer switch cabinet, suitable for power conversion of low-voltage power distribution system, power distribution and motor control center, capacitor compensation and so on in power plants, substations, petrochemical departments,factories and mines, high-rise buildings, allocation and control.

GCS type low-voltage drawer switchgear has high connecting and breaking capacity, good dynamic thermal stability, advanced structure, reasonable structure, flexible electrical equipment scheme, high protection grade, safe and reliable, convenient maintenance,and has high technical performance index.

This product conforms to IEC 60439.1-2004, GB7251.1-2005, GB7251.3-2006, JB/t9661- 1999 and other standards.

Normal Use Environment Condition

The ambient air temperature is not higher than 40 ℃, not less than -5 ℃, and the average temperature is not higher than 35 ℃ in 24 hours.

Weather conditions, clean air, a relative humidity of not more than 50 per cent at a maximum temperature of 40 ℃ and a higher relative humidity at a lower temperature, such as 90 per cent at 20 ℃, taking into account changes in temperature, It is possible to occasionally produce moderate condensation. The altitude does not exceed 2000 meters.

This product is suitable for transportation and storage at temperatures ranging from -25 ℃ to 55 ℃, up to 70 °C in a short period of time (not exceeding 24 hours), at which the device shall not be subjected to any unrecoverable damage, And under normal conditions should be able to work properly.

If the above conditions of use cannot be satisfied, they should be put forward by the user to the manufacturer at the time of ordering, and settled through consultation.

Technical Parameter:

Advantage:

Each functional room is strictly separated, and its compartment is mainly divided into functional unit room, cable room, and the function of each unit is independent of each other and does not affect each other.

The horizontal main bus is arranged on the back of the cabinet, which enhances the ability of the bus to resist the electric force generated by the short circuit current.

Drawer types are divided into 1 / 2 unit, 1 unit, 3 / 2 unit, 2 unit, 3 unit five dimensional series,circuit rated current is 400a and below.

Each device can install up to 11 unit drawers or 22 1 / 2 unit drawers.

Drawers have five points, closing, testing, drawing, isolating, and marked.

The drawer is provided with mechanical linkage device and emergency unlock device.

FAQ:

Q:What's your MOQ?

A:Our MOQ is 1 pc.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:Whether you could make our brand on your products?

A:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

Q: What is the shipping method?

A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

Q:What is your terms of packing?

A:Generally, we pack our goods in neutral boxes and brown cartons. we can also pack the goods in your branded boxes after getting your authorization letters.
