Centrifugal Pump 1.0Mpa Burgmann BIA-16 Mechanical Seal
Centrifugal Pump 1.0Mpa Burgmann BIA-16 Mechanical Seal
Specifications
Brand Name :
ZOZHI
Model Number :
BIA-16
Certification :
CE,ISO
Place of Origin :
FUAN CHINA
MOQ :
1pc
Price :
$0.18-2.0/PCS
Supply Ability :
10000pcs/month
Delivery Time :
2-5 days if in stock,7-15 days if not stock
Packaging Details :
PE bag+paper box+outer carton+wooden box+pallet
Temperature :
-20~150℃
Pressure :
≤ 1.0MPa
Speeds :
≤10m/sec
Rotating ring :
Carbon /Sic/TC
Stationary ring :
Ceramic/Sic/TC
Auxiliary seal :
NBR/Viton/EPDM
Spring&Other parts :
SUS304/SUS316/S.S
Description

Burgmann BIA-16 Mechanical Seal 1.0Mpa Pressure For Centrifugal Pump

Design Features

- Internally mounted inward leakage, singe face, single spring, unbalanced, rubber bellows structure.
- The rotary ring is driven by rubber bellows, good floating

Materials(to DIN24960)

- Rotary Ring: B, U1, U2, Q1, Q2
- Stationary Ring: U1, U2,Q1,Q2, V1,V2
- Auxiliary Seal: P, E, V
- Spring and Other Parts: F, G

Operating limits

- Pressure: ≤ 1.0MPa
- Temperature: -20~150℃
- Speeds: ≤10m/sec

Applications

Used in auto-cooling pumps, centrifugal pumps, submersible pumps, and general industrial pumps

Medium

Oil, water, and other weak corrosive fluid

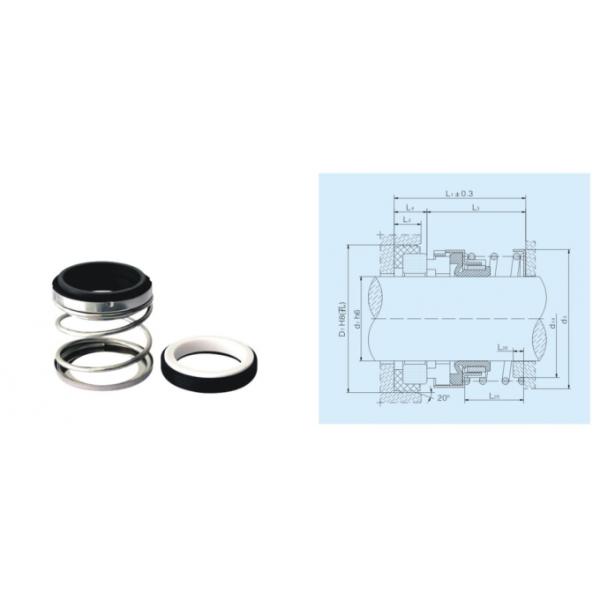

Size Information
Centrifugal Pump 1.0Mpa Burgmann BIA-16 Mechanical Seal

Model d1 d3 D7 d14 L1 L2 L3 L4 L25 L26
BIA-14 14 27.0 30 22.4 23.7 4.5 18.7 5.0 9.7 2.5
BIA-16 16 28.5 32 23.0 26.0 4.5 21.0 5.0 12.0 2.5
BIA-18 18 30.5 35 25.5 30.0 6.0 22.5 7.5 13.0 2.5
BIA-20 20 31.8 35 26.0 29.0 6.5 21.0 8.0 11.5 3.0
BIA-25 25 39.0 40 34.0 33.5 6.5 25.5 8.0 15.0 3.0
BIA-28 28 42.0 43 36.5 33.5 6.5 25.5 8.0 15.0 3.0
BIA-30 30 44.0 45 38.5 34.5 7.5 25.5 9.0 15.0 3.0
BIA-32 32 46.0 48 40.0 42.5 7.5 33.5 9.0 21.0 4.5
BIA-33 33 47.0 48 40.5 42.5 7.5 33.5 9.0 21.0 4.5
BIA-35 35 49.0 50 42.5 42.5 7.5 33.5 9.0 21.0 4.5
BIA-38 38 54.0 56 46.5 42.5 7.5 33.5 9.0 21.0 4.5
BIA-40 40 56.0 58 48.0 42.5 7.5 33.5 9.0 21.0 4.5
BIA-43 43 59.0 61 51.0 46.0 8.0 36.5 9.5 24.0 5.5
BIA-45 45 61.0 63 52.5 47.5 8.0 38.0 9.5 24.0 5.5
BIA-48 48 64.0 66 55.5 47.5 8.0 38.0 9.5 24.0 5.5
BIA-50 50 66.0 70 57.0 47.5 8.0 38.0 9.5 24.0 5.5
BIA-53 53 69.0 73 60.0 50.5 8.0 41.0 9.5 26.0 6.0
BIA-55 55 71.0 75 62.0 50.5 8.0 41.0 9.5 26.0 6.0
BIA-58 58 78.0 78 68.0 51.5 8.0 42.0 9.5 26.0 6.0
BIA-60 60 80.0 80 70.0 51.5 8.0 42.0 9.5 26.0 6.0
BIA-70 70 90.0 92 80.0 56.0 9.5 45.0 11.0 28.0 6.0
BIA-80 80 104.0 104 90.0 67.0 10.0 55.0 12.0 37.0 8.0
BIA-85 85 108.0 109 95.0 76.2 10.0 64.2 12.0 48.0 8.0
BIA-90 90 113.0 114 100.0 78.2 10.2 66.2 12.0 50.0 8.0

Centrifugal Pump 1.0Mpa Burgmann BIA-16 Mechanical Seal

Centrifugal Pump 1.0Mpa Burgmann BIA-16 Mechanical Seal

Centrifugal Pump 1.0Mpa Burgmann BIA-16 Mechanical Seal

Centrifugal Pump 1.0Mpa Burgmann BIA-16 Mechanical Seal

Centrifugal Pump 1.0Mpa Burgmann BIA-16 Mechanical Seal
