Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal
Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal
Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal
Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal
Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal
Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal
Specifications
Brand Name :
ZOZHI
Model Number :
CN2100
Certification :
CE,ISO
Place of Origin :
FUAN CHINA
MOQ :
1pc
Price :
$0.18-2.0/PCS
Supply Ability :
10000pcs/month
Delivery Time :
2-5 days if in stock,7-15 days if not stock
Packaging Details :
PE bag+paper box+outer carton+wooden box+pallet
Pressure :
≤ 2.0MPa
Speeds :
≤15m/sec
Rotating ring :
Carbon /Sic/TC
Stationary ring :
Ceramic/Sic/TC
Auxiliary seal :
NBR/Viton/EPDM
Spring&Other parts :
SUS304/SUS316/S.S
Description

Burgmann CN2100 Mechanical Seal For Water Pump

Mechanical Seal CN2100 Design Features

- Single face, single spring, unbalanced, rubber bellows structure.
- The seal face is driven through the spring seat, rubber bellows design to avoid torsion

- The installation size conforms to the standard for ISO3069 and DIN24960

Mechanical Seal CN2100 Materials(to DIN24960)

- Rotary Ring: B, U1, U2, Q1, Q2
- Stationary Ring: U1, U2,Q1,Q2, V1,V2
- Auxiliary Seal: P, E, V
- Spring and Other Parts: F, G

Mechanical Seal CN2100 Operating limits

- Pressure: ≤ 2.0MPa
- Temperature: -40~150℃
- Speeds: ≤15m/sec

Mechanical Seal CN2100 Applications

Used in different pumps, mixers, compressors, and other rotating equipment. which apply to oil, water, and other weak corrosive

Mechanical Seal CN2100 Medium

Oil, water, and other weak corrosive fluid

Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal

Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal

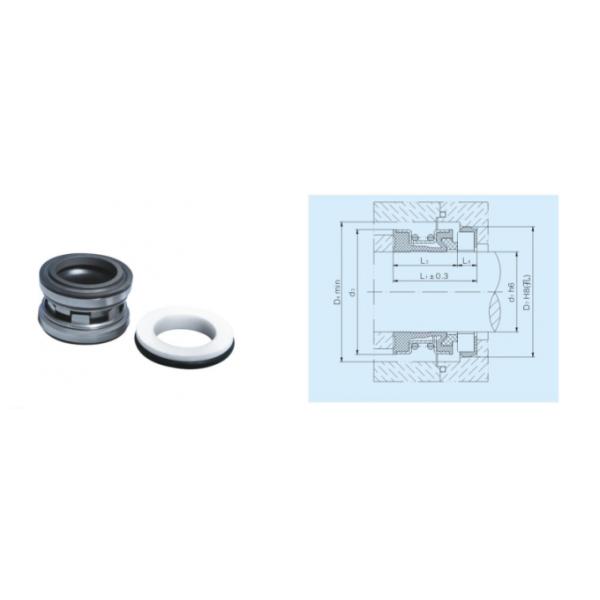

Mechanical Seal CN2100 Size Information
Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal

Model d1 d3 D4 D7 L1K L3 L4
CN2100-10 10 20 22 21 20 15 5
CN2100-12 12 22 24 23 21 15 6
CN2100-14 14 24 26 25 21 15 6
CN2100-15 15 25 27 26 21 15 6
CN2100-16 16 26 28 27 21 15 6
CN2100-18 18 32 34 33 26 20 6
CN2100-20 20 34 36 35 26 20 6
CN2100-22 22 36 38 37 26 20 6
CN2100-24 24 38 40 39 26 20 6
CN2100-25 25 39 41 40 26 20 6
CN2100-28 28 42 44 43 32 26 6
CN2100-30 30 44 46 45 33 26 7
CN2100-32 32 46 48 48 33 26 7
CN2100-33 33 47 49 48 33 26 7
CN2100-35 35 49 51 50 34 26 8
CN2100-38 38 54 58 56 38 30 8
CN2100-40 40 56 60 58 38 30 8
CN2100-43 43 59 63 61 38 30 8
CN2100-45 45 61 65 63 38 30 8
CN2100-48 48 64 68 66 40 30 10
CN2100-50 50 66 70 70 40 30 10
CN2100-53 53 69 73 73 40 30 10
CN2100-55 55 71 75 75 40 30 10
CN2100-58 58 78 83 78 43 33 10
CN2100-60 60 80 85 80 45 33 12
CN2100-63 63 83 88 83 45 33 12
CN2100-65 65 85 90 85 45 33 12
CN2100-68 68 88 93 90 45 33 12
CN2100-70 70 90 94 92 45 33 12
CN2100-75 75 99 104 97 52 40 12

Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal

Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal

Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal

Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal

Water Pump 2.0MPa Burgmann CN2100 Mechanical Seal
