Description
The inner shaft motor is a unique hydraulic component in the hydraulic system. The rotor speed of the internal shaft motor is lower than that of the rotating magnetic field. The rotor windings induce electromotive force and current due to the relative movement between the magnetic fields and interact with the magnetic field to generate electromagnetic Torque, realizing energy conversion. Compared with the output shaft motor, the inner shaft motor can be highly concentrically matched with the oil pump, with good running performance, ensuring the stable pressure output of the hydraulic oil pump to the hydraulic system. Because of the inner shaft motor's reliable operation, the overall structure is streamlined and light in weight. It is widely used in hydraulic system equipment.
Advantage
1. Matching oil pump installation has high concentricity, low operating noise, and long service life
2. The one-time high-precision rotor is a high-quality alloy and runs smoothly.
3. All copper core coils ensure high-speed operation of the motor. A variety of power specifications are available. In addition, the installation dimensions of the oil pump can be customized to meet the supporting installation of the hydraulic oil pump.

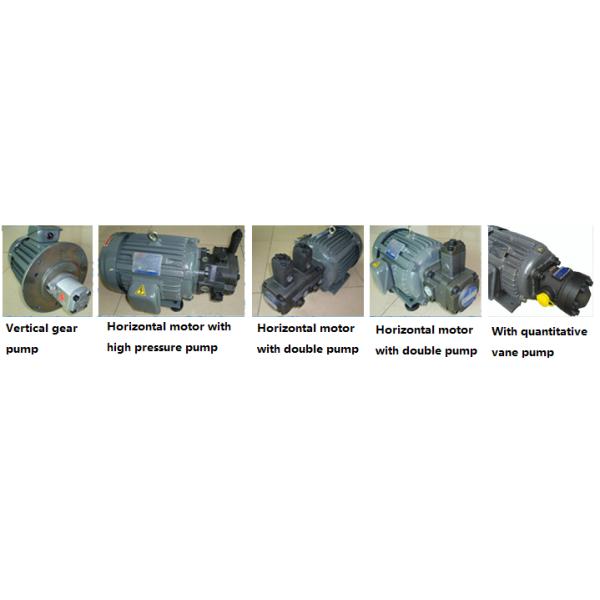

4. The installation methods include vertical installation and horizontal installation, adapting to the installation needs of various occasions.
Product details (technical advantage)
1. The all-copper core stator coil ensures the motor power, is not easy to generate heat, and prolongs the service life of the motor.
2. Brand new electronics, no reinforcement, enough power, not easy to heat up. Cold-rolled silicon steel sheets have better toughness, endurance, and wear resistance. Extend motor life
3. High-strength stainless steel bearings have a long service life and low work friction coefficient, achieving highly flexible joints.
4. The used casting material has higher hardness than ordinary jack, lighter weight, better heat dissipation, stable operation, and reliable quality.
Installation steps
1. Align the half-circle key with the key slot and insert it into the motor. Pay attention to whether the half-circle key is loose or dropped. Otherwise, the oil pump cannot pump oil. You can put some butter on the semicircular keys when installing.
2. After installing the oil pump, tighten the screws, do not lock them too tightly. Rotate the oil pump to a suitable position and then pull the screws. It is better to close the locking screw diagonally.
3. After tightening the screws, use a screwdriver to make the rotor blades seem smooth. If it is too tight, adjust the screws.
Data
Model | Rated Output | Rated Current | Rated Speed | Eff | Power Factor | Starting Current | Ts/tn | Tmax/Tn | Axis Bore | Axis Key height | Bore Depth | Front Cover | Oil Pump Fixed Position | Oil Pump Model | |
HP | KW | A | r/min | % | cosΦ | times | times | Φx键宽 | C | E | halt止口Φ | Screw Hole Distance | Model | ||
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20,VP12,VP12/20 |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 10.15x7齿 | Φ13.65 | 35 | 82.55 | 106.3 M10 | VP20,7齿花键 tooth key |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12.4x9齿 | Φ16.35 | 35 | 82.55 | 106.3 M10 | VP20,9齿花键 tooth key |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12x4 | 13.7 | 28 | 50.8 | 82.55M8 | HGP-1A |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 15.875x4 | 17.7 | 32 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY,HGP-2A |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12x4 | 13.7 | 28 | 50.8 | 82.55 M8 | HGP-1A |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20, VP12/15 |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 10.15x7齿 | Φ13.65 | 35 | 82.55 | 106.3 M10 | VP20,7齿花键 tooth key |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.4x9齿 | Φ16.35 | 35 | 82.55 | 106.3 M10 | VP20,9齿花键 tooth key |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 16x5 | 18 | 37 | 38 | 70x100 MB | CBN CBT |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90x90 M10 | VP30, VP40 |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1 |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90X90 M10 | VP30, VP40 |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 16X5 | 18 | 37 | 38 | 70X100 MB | CBN CBT |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20, VP12/15 |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 18x6 | 18 | 37 | 38.00 | 70X100 MB | CBN CBT |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1 |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 16x5 | 18 | 37 | 38.00 | 70x100 MB | CBN CBT |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1, FA1 |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90x90 M10 | VP-30 VP-40 |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 22x5 | 24 | 50 | 96 | 90x90 M10 | 50T |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 11.4x4 | Φ15-4齿 | 37 | 38.00 | 70x100 MB | CBN 4齿花键 |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 22x5 | 24 | 50 | 96 | 90x90 M10 | 50T-F |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 16x5 | 18 | 37 | 38.00 | 70x100 MB | CBN CBT |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1, FA1 |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 25.4x6.35 | 28.2 | 50 | 101.6 | Φ146 M12 | T6B PV2R2 |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 30x8(7) | 33 | 48 | 160 | Φ187 M12 | 150T |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.5 | 38 | 82.55 | 106 M10 | PV2R1 FA |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 22.23x6.35 | 25.08 | 35 | 101.6 | 146 M12 | T6C |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 25.4x6.35 | 28.2 | 50 | 101.6 | 146 M12 | T6B PV2R2 |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 30x8(7) | 33 | 48 | 160 | Φ187 M12 | 150T |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 22.23x4.76 | 24.5 | 52 | 101.6 | 146 M12 | S25V(S20V)25VQ |

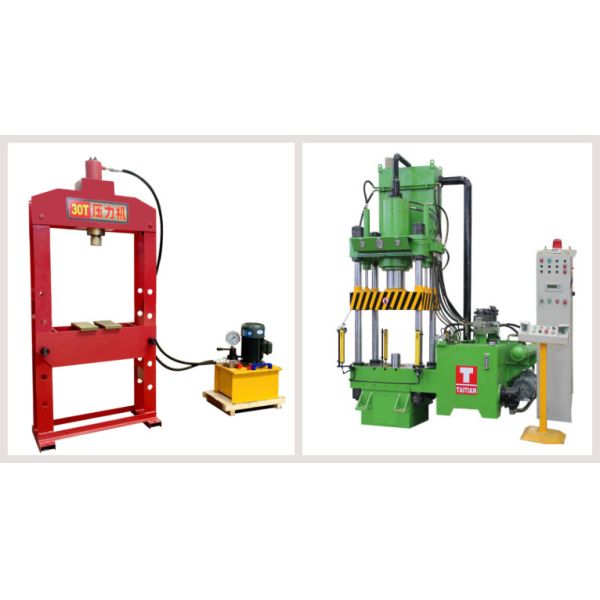

Application
Our Services:
1. Customized Production is available.
2. Supply for OEM and ODM, OTM solutions
3. 100% tested before shipment
4. Certificate and Guarantee: ISO 9001 and CE.
5. package: carton, wooden case, plywood case, or pallet
6. IE1,IE2,IE3 motors
7. Motor frame housing aluminum.
8. Most reasonable price
9.12-18 months Guarantee period
10. Special motors can be designed according to customers' requirements
11. All copper wire windings
