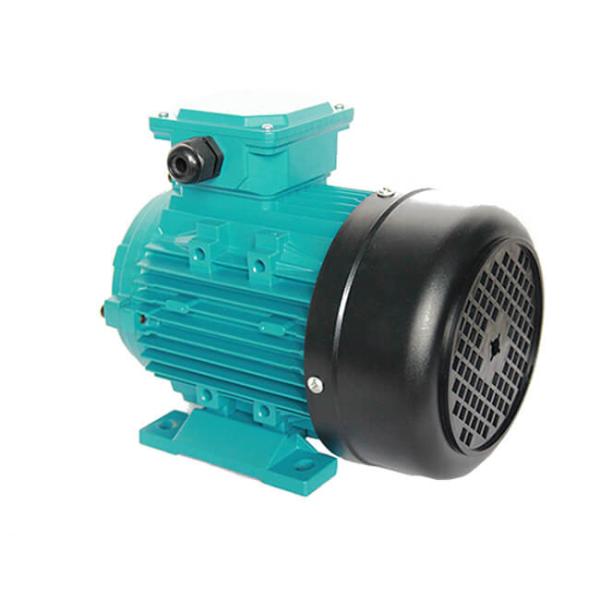

MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
Specifications
Brand Name :
ZOZHI
Model Number :
MS100L2-4
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
3 Phase Induction Motor
Application :
woodworking machinery
Output :
0.75KW/1HP
Pole :
4
Efficiency :
IE1,IE2,IE3
Performance :
High Reliability
Capacitor Type :
Capacitor Running
Phase :
THREE Phase
Description

Woodworking Machinery Motor Three Phase Electric Asynchronous Motor 5.5KW

3 Phase Induction Motor

Motors are widely used in metal processing machine tools, packaging machinery, woodworking machinery, food machinery, chemical machinery, textile machinery, construction machinery, and gear reducers.


Conditions of Use:


This series of motors can run continuously at rated power under the following conditions:


① Altitude: not exceeding 1000 meters;


② The ambient air temperature varies with the season but does not exceed + 40 ° C.


Voltage, frequency, and working mode:
Frequency: 50 Hz, 60 Hz
Voltage: 220 / 380V, 380 / 660V
Connection method: Y connection method for the power of 3 kW and below, △ connection method for 4 kW and above
Working method: Class B, Class F
Protection level: IP44, IP54 or IP55


MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer

The revised standard includes the following line-motors
Number of Poles 2,4,6,8
Power range 0.75-11KW
Level

IE1-Standard Efficiency

IE2-High Efficiency

IE3-Premium Efficiency
Voltage 230/400V/60Hz
Degree of protection all
Operating mode

S1(permanent operation with constant load); motors that are

designed for different operating modes but can still be operated

permanently with rated output.
Degree of temperature -20. C- + 60.C
Altitude Up to 4000m above sea level
Geared motors yes
Validity Standard IEC

IE3 Premium Efficiency

Model Power (V) (A)

Spee

d r/min

 Eff. (%) P.F. Tstart/Tn Ist/In
Kw HP 50% 75% 100%
IE3 MS801-2 0.75 1 230/400 2.82/1.63 2820 79.7 81.0 80.7 0.831 2.3 6.0
IE3 MS802-2 1.1 1.5 4.0/2.3 2820 81.5 82.9 82.7 0.836 2.3 7.5
IE3 MS90S-2 1.5 2 5.23/3.02 2840 84.0 85.0 84.2 0.857 2.4 7.5
IE3 MS90L-2 2.2 3 7.44/4.3 2840 86.0 86.5 85.9 0.865 2.4 7.5
IE3 MS100L-2 3 4 9.9/5.72 2850 88.2 87.3 87.1 0.873 2.4 8.0
IE3 MS112M-2 4 5.5 400/690 7.48/4.32 2870 88.0 88.4 88.1 0.880 2.4 8.5
IE3 MS132S1-2 5.5 7.5 10/5.8 2900 89.1 89.6 89.2 0.890 2.2 7.5
IE3 MS132S2-2 7.5 10 13.5/7.8 2900 90.0 90.5 90.1 0.892 2.2 7.5
IE3 MS160M1-2 11 15 19.5/11.3 2920 89.8 91.3 91.2 0.896 2.2 8.5
IE3 MS160M2-2 15 20 26.2/15.1 2920 91.6 92.0 91.9 0.805 2.2 8.5
IE3 MS160L-2 18.5 25 31.9/18.4 2920 92.1 92.5 92.4 0.910 2.2 8.5
IE3 MS802-4 0.75 1 230/400 2.97/1.72 1400 81.0 82.7 82.5 0.770 2.4 7.0
IE3 MS90S-4 1.1 1.5 4.25/2.45 1420 82.6 84.3 84.1 0.775 2.4 7.5
IE3 MS90L-4 1.5 2 5.68/3.28 1420 83.8 85.4 85.3 0.778 2.4 8.0
IE3 MS100L1-4 2.2 3 8.0/4.62 1440 84.3 86.7 86.7 0.798 2.4 8.0
IE3 MS100L2-4 3 4 10.8/6.2 1440 86.0 87.6 87.7 0.801 2.4 8.0
IE3 MS112M-4 4 5.5 400/690 7.97/4.6 1450 88.3 88.8 88.6 0.821 2.4 7.5
IE3 MS132S-4 5.5 7.5 10.8/6.2 1450 89.0 89.7 89.6 0.825 2.3 7.5
IE3 MS132M-4 7.5 10 14.4/8.32 1450 90.1 90.6 90.4 0.834 2.3 7.5
IE3 MS160M-4 11 15 20.8/12.0 1460 90.5 91.5 91.4 0.838 2.2 7.0
IE3 MS160L-4 15 20 27.9/16.1 1460 91.5 92.5 92.1 0.847 2.2 7.0
IE3 MS90S-6 0.75 1 230/400 3.42/1.97 910 77.5 94.4 78.9 0.700 2 4.0
IE3 MS90L-6 1.1 1.5 4.8/2.78 910 80.2 81.3 81.0 0.710 2 4.0
IE3 MS100L1-6 1.5 2 6.35/3.66 930 81.3 82.6 82.5 0.720 2 5.0
IE3 MS112M-6 2.2 3 8.98/5.2 940 83.2 85.0 84.3 0.730 2 5.0
IE3 MS132S-6 3 4 11.9/6.87 960 84.5 85.8 85.6 0.740 2.2 6.5
IE3 MS132M1-6 4 5.5 400/690 9.0/5.2 960 85.3 86.9 86.8 0.745 2.2 7.0
IE3 MS132M2-6 5.5 7.5 12.1/7.0 960 86.9 88.2 88.0 0.750 2.2 7.0
IE3 MS160M-6 7.5 10 16.1/9.3 970 87.5 89.0 89.1 0.760 2.2 7.0
IE3 MS160L-6 11 15 22.9/13.2 970 89.0 90.2 90.3 0.770 2.2 7.0

IE2 High Efficiency

Model Power (V) (A) (r/min) Eff. (%) P.F. Ist/In Tmax/Tn
Kw HP 50% 75% 100%
IE2 MS801-2 0.75 1 230/400 3.0/1.73 2800 76.5 77.3 77.4 0.813 2.2 2.3
IE2 MS802-2 1.1 1.5 4.2/2.43 2800 79.0 80.0 79.6 0.825 2.2 2.3
IE2 MS90S-2 1.5 2 5.53/3.19 2820 80.2 81.5 81.3 0.837 2.2 2.3
IE2 MS90L-2 2.2 3 7.93/4.58 2820 82.2 83.5 83.2 0.837 2.2 2.3
IE2 MS100L-2 3 4 10.5/6.06 2830 84.0 85.1 84.6 0.848 2.2 2.3
IE2 MS112M-2 4 5.5 400/690 7.97/4.6 2850 85.4 86.8 85.8 0.848 2.2 2.3
IE2 MS132S1-2 5.5 7.5 10.65/6.15 2870 86.7 87.3 87.0 0.860 2 2.3
IE2 MS132S2-2 7.5 10 14.35/8.28 2870 87.6 88.3 88.1 0.860 2 2.3
IE2 MS160M1-2 11 15 20.74/11.97 2900 89.0 89.8 89.4 0.860 2 2.3
IE2 MS160M2-2 15 20 27.99/16.16 2900 90.0 90.5 90.3 0.860 2 2.3
IE2 MS160L-2 18.5 25 33.83/19.53 2900 90.3 91.0 90.9 0.872 2 2.2
IE2 MS802-4 0.75 1 230/400 3.28/1.9 1380 77.3 79.8 79.6 0.720 2.3 2.3
IE2 MS90S-4 1.1 1.5 4.57/2.64 1400 79.9 81.7 81.4 0.743 2.3 2.3
IE2 MS90L-4 1.5 2 6.02/3.48 1400 82.1 83.5 82.8 0.755 2.3 2.3
IE2 MS100L1-4 2.2 3 8.42/4.86 1420 82.6 84.5 84.3 0.778 2.2 2.3
IE2 MS100L2-4 3 4 11.32/6.54 1420 84.2 85.7 85.5 0.778 2.2 2.3
IE2 MS112M-4 4 5.5 400/690 8.47/4.89 1430 85.8 87.0 86.6 0.790 2.2 2.3
IE2 MS132S-4 5.5 7.5 11.18/6.45 1450 87.4 88.3 87.7 0.813 2.2 2.3
IE2 MS132M-4 7.5 10 14.85/8.58 1450 88.2 89.0 88.7 0.825 2.2 2.3
IE2 MS160M-4 11 15 21.84/12.61 1460 89.1 90.0 89.8 0.813 2.2 2.3
IE2 MS160L-4 15 20 29.08/16.79 1460 90.2 91.1 90.6 0.825 2.2 2.3
IE2 MS90S-6 0.75 1 230/400 3.82/2.2 910 73.4 76.3 75.9 0.650 2 2.2
IE2 MS90L-6 1.1 1.5 5.25/3.03 910 77.0 78.8 78.1 0.673 2 2.2
IE2 MS100L-6 1.5 2 6.77/3.91 940 79.6 80.8 79.8 0.697 2 2.2
IE2 MS112M-6 2.2 3 9.69/5.59 940 80.4 81.6 81.8 0.697 2 2.2
IE2 MS132S-6 3 4 12.56/7.25 960 81.0 83.4 83.3 0.720 2 2.2
IE2 MS132M1-6 4 5.5 400/690 9.36/5.4 960 82.7 84.5 84.6 0.732 2 2.2
IE2 MS132M2-6 5.5 7.5 12.47/7.2 960 84.8 86.2 86.0 0.743 2 2.2
IE2 MS160M-6 7.5 10 16.78/9.69 970 86.4 87.5 87.2 0.743 2 2
IE2 MS160L-6 11 15 24.19/13.97 970 88.2 89.2 88.7 0.743 2 2

IE1 Standard Efficiency

Model Power
(V)
(A)		 P.F. Eff.(%) Speed
(r/min)		 Tstart/Tn Tmax/Tn Ist/In(A)
kW HP
MS561-2 0.09 0.12 220/380 0.57/0.33 0.68 62 2800 2.3 2.4 6
MS562-2 0.12 0.16 220/380 0.67/0.38 0.71 67 2800 2.3 2.4 6
MS631-2 0.18 0.24 220/380 0.91/0.53 0.75 69 2800 2.2 2.4 6
MS632-2 0.25 0.33 220/380 1.17/0.68 0.78 72 2800 2.2 2.4 6
MS711-2 0.37 0.5 220/380 1.65/0.95 0.80 73.5 2800 2.2 2.4 6
MS712-2 0.55 0.75 220/380 2.33/1.35 0.82 75.5 2800 2.2 2.4 6
MS801-2 0.75 1 220/380 3.03/1.75 0.85 76.5 2800 2.2 2.4 6
MS802-2 1.1 1.5 220/380 4.42/2.55 0.85 77 2800 2.2 2.4 6
MS90S-2 1.5 2 220/380 6.01/3.84 0.85 77 2800 2.2 2.4 6
MS90L-2 2.2 3 220/380 8.61/4.98 0.86 78 2800 2.2 2.4 6
MS100L-2 3 4 220/380 11.1/6.4 0.87 82 2870 2.2 2.3 7
MS112M-2 4 5.5 380/660 8.2/4.7 0.87 85.5 2890 2.2 2.3 7
MS132S1-2 5.5 7.5 380/660 11/6.4 0.88 85.5 2900 2.0 2.2 7
MS132S2-2 7.5 10 380/660 15/8.6 0.88 86.2 2900 2.0 2.2 7
MS160M1-2 11 15 380/660 21.3/12.2 0.88 88 2930 2.0 2.2 7
MS160M2-2 15 20 380/660 28.7/16.4 0.89 89 2930 2.0 2.2 7
MS160L-2 18.5 25 380/660 34.6/19.8 0.90 90 2930 2.0 2.2 7
MS180M-2 22 30 380/660 40.9/23.4 0.90 90.5 2930 2.0 2.2 7
MS561-4 0.06 0.08 220/380 0.49/0.28 0.58 56 1400 2.3 2.4 6
MS562-4 0.09 0.12 220/380 0.67/0.39 0.61 58 1400 2.3 2.4 6
MS631-4 0.12 0.16 220/380 0.84/0.48 0.63 60 1400 2.2 2.4 6
MS632-4 0.18 0.24 220/380 1.12/0.65 0.66 64 1400 2.2 2.4 6
MS711-4 0.25 0.33 220/380 1.44/0.83 0.68 67 1400 2.2 2.4 6
MS712-4 0.37 0.5 220/380 0.94/1.12 0.72 69.5 1400 2.2 2.4 6
MS801-4 0.55 0.75 220/380 2.69/1.56 0.73 73.5 1400 2.2 2.4 6
MS802-4 0.75 1 220/380 3.48/2.01 0.75 75.5 1400 2.2 2.4 6
MS90S-4 1.1 1.5 220/380 4.74/2.75 0.78 78 1400 2.2 2.4 6
MS90L-4 1.5 2 220/380 6.31/3.65 0.79 79 1400 2.2 2.3 7
MS100L1-4 2.2 3 220/380 8.6/5.0 0.82 81 1430 2.2 2.3 7
MS100L2-4 3 4 220/380 11.7/6.8 0.81 82.5 1430 2.2 2.3 7
MS112M-4 4 5.5 380/660 8.8/5.1 0.82 84.5 1440 2.2 2.2 7
MS132S-4 5.5 7.5 380/660 12/6.9 0.84 85.5 1440 2.2 2.2 7
MS132M-4 7.5 10 380/660 15/8.6 0.85 87 1440 2.2 2.2 7
MS160M-4 11 15 380/660 22.3/12.7 0.85 88 1460 2.2 2.2 7
MS160L-4 15 20 380/660 30/17.1 0.85 89 1460 2.0 2.2 7
MS180M-4 18.5 25 380/660 36.4/20.8 0.85 90.5 1470 2.2 2.2 7.5
MS180L-4 22 30 380/660 43.1/24.6 0.85 91 1470 2.2 2.2 7.5
MS90S-6 0.75 1 220/380 4.0/2.3 0.70 72.5 910 2.2 2.2 5.5
MS90L-6 1.1 1.5 220/380 5.5/3.2 0.72 73.5 910 2.2 2.2 5.5
MS100L-6 1.5 2 220/380 6.9/4.0 0.74 77.5 940 2.2 2.2 6
MS112M-6 2.2 3 220/380 9.7/5.6 0.74 80.5 940 2.2 2.2 6
MS132S-6 3 4 220/380 12.4/7.2 0.76 83 960 2.2 2.0 6.5
MS132M1-6 4 5.5 380/660 9.4/5.4 0.77 84 960 2.0 2.0 6.5
MS132M2-6 5.5 7.5 380/660 13/7.5 0.78 85.3 960 2.0 2.0 6.5
MS160M-6 7.5 10 380/660 16.5/9.43 0.80 87.5 970 2.0 2.0 6.5
MS160L-6 11 15 380/660 24.1/13.8 0.79 89 970 2.0 2.0 6.5
MS180L-6 15 20 380/660 31.5/18 0.81 86 970 2.0 2.0 7.0
MS132S-8 2.2 3 220/380 10/5.8 0.71 85.5 710 2.0 2.0 5.5
MS132M-8 3 4 220/380 13.3/7.7 0.72 82 710 2.0 2.0 5.5
MS160M1-8 4 5.5 380/660 10.2/5.8 0.73 81 720 2.0 2.0 6.0
MS180M2-8 5.5 7.5 380/660 13.6/7.8 0.74 83 720 2.0 2.0 6.0
MS160L-8 7.5 10 380/660 17.7/10.1 0.75 85.5 720 2.0 2.0 6.0
MS180L-8 11 15 380/660 25.1/14.3 0.76 87.5 730 2.0 2.0 6.5

MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer


Precautions for motor maintenance and maintenance

During the long-term use of the motor, the user should pay attention to its maintenance and maintenance to improve life and better serve the mechanical equipment. The following describes the issues to be paid attention to in daily care:


Routine maintenance includes removing external dust and oil, monitoring abnormal noise and regularly changing the lubricant. The oil change interval is generally 1kh for sliding bearings and 5kh for rolling bearings.

When maintaining and repairing the motor, pay attention to environmental protection so that the maintenance site is free from pollution, and the motor coil must not be removed by burning. For motors that have been used for more than one year, pay attention to checking the oil seals, shaft seal rings on the outer side of the motor end cover, and the rubber parts such as the terminal box seat and the sealing ring on the terminal box cover for cracks, deformation, severe wear, etc. Replace the parts that can not reach the sealing performance and requirements in time.

Product tags

motor for cement mixer

,

3 phase indution motor

,

abb 3 phase motor
Send your message to this supplier
Send Now

MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer

Ask Latest Price
Product Detail
Brand Name :
ZOZHI
Model Number :
MS100L2-4
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Contact Supplier
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer
MS100L2-4 3kw 1440rpm 4hp 3 Phase Induction Motor For Concrete Mixer

Fuan Zhongzhi Pump Co., Ltd.

Verified Supplier
9 Years
fujian
Since 2006
Business Type :
Manufacturer, Exporter
Main Products :
Electric Motor Water Pump, Hollow Shaft Motor, 3 Phase Induction Motor
Total Annual :
10000000-15000000
Employee Number :
100~150
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products 3 Phase Induction Motor
MachineU China Products Machinery Engineering & Construction Machinery Concrete Machinery Concrete Mixers
Contact Supplier
Submit Requirement
