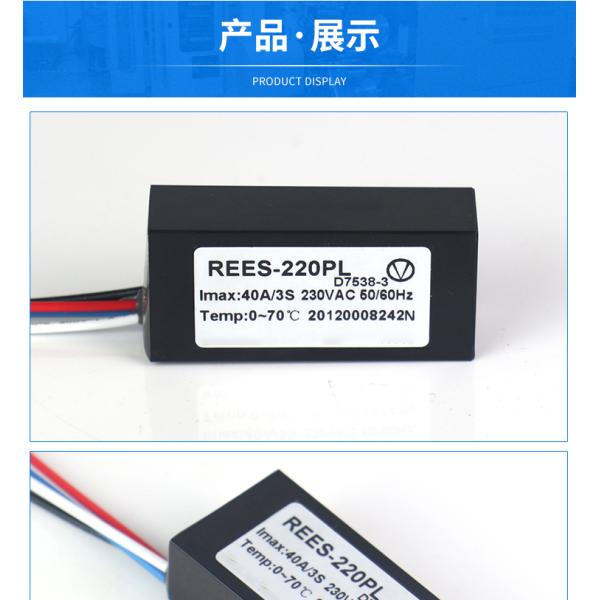

REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
Specifications
Brand Name :
ZOZHI
Model Number :
REES-220PL
Certification :
ISO
Place of Origin :
FUAN CHINA
MOQ :
10pcs
Price :
$4-$15
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
2 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Voltage :
230V
Frequency :
50/60HZ

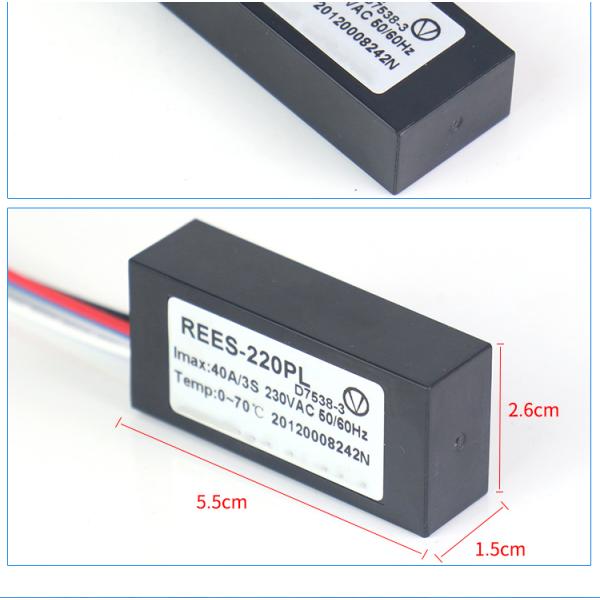

Plastic Case :
72L*31W*23H
Max. Current :
40A/3S
Description

REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump

Product model: REES-220PL
Motor voltage: 230Vac 50Hz/60Hz
Motor power: 550 - 2200W
Maximum current: 40A /3S
Applicable models: Single-phase AC motors of YL, YC, ML, and MC series
The setting of the motor's disconnecting rotating speed (namely, the set of RECS series electronic centrifugal switch):
Please ensure that the electronic centrifugal switch is connected correctly, the details of which are shown in the above corresponding wiring diagram of an electronic centrifugal switch;
Please make sure that the motor is provided with the rated voltage and rated frequency, which shall conform to the chosen voltage range of the electronic centrifugal switch;
Please make sure that the pressure drop when the motor starts is not over 5% (it is better to use a high-power variable-frequency power source);
Please make sure that the motor has no load;
Power the motor on to run it for 5 seconds to complete the setting (which means the electronic centrifugal switch can automatically read the electrical parameters of the motor, set the motor's disconnecting rotating speed as about 75%, and save it permanently). During the setting process, it is expected that the motor vibrates obviously. Please do not power it off;
After the above setting process is finished, the motor can usually be used.

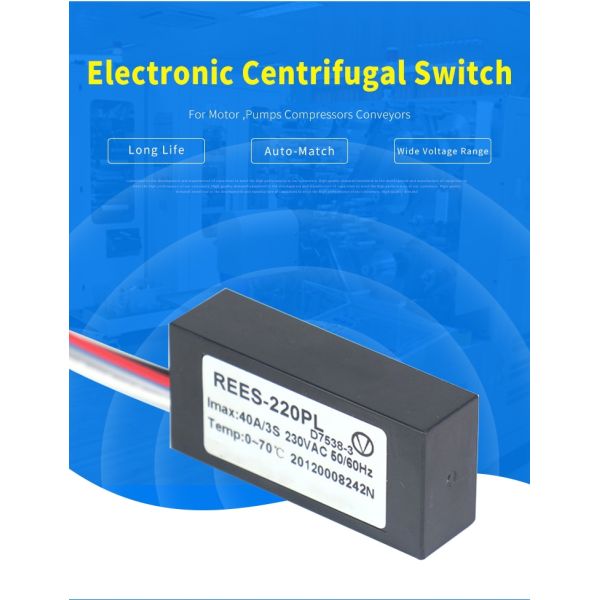

Features
Small Package
Long Life(1M cycle)
General Switch,
Auto-Match different Motor
Wide Voltage Range 115V(90V-137V) 230V(198V-264V)
50Hz/60Hz applicable
Neither switching noise nor trembling of contacts
High compatibility with general-purpose motors as well as application-specific motors
Easy installation and maintenance, mounted on inside/outside standard motor frames.
Sealed with epoxy resin or silicon rub, insensitive to dirt, dust, moisture, and vibration
Discharges starting capacitors
ROHS/CE/UL
Applications
Refrigerators
Pumps
Shredders
Grinders
Hoists
Washing machines
Ice makers
Mixers
Sprayers
Drill/Tapping machines
Description:
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
 Item No.: REES-220PL
Commodity: Electric Centrifugal Switch
Max A: 40A/3S
Vol&Hz 230VAC 50/60hz
Carton Size: 20x10x20 cm
Gross/Net Weight: 1/0.05 kgs
Ex-work Price: USD4.5
Suit for Electric Motor: 230V 600-2000W
Packing: CTNS
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
Product List
P/N Voltage(V) Max Start Current (3s TC=25) (A) Package
RECS-105P 115 30 Plastic Case 72L*31W*23H
RECS-120P 115 60 Plastic Case 72L*31W*23H
RECS-120S 115 60 Plastic Case 52L*50W*24H
RECS-140P 115 120 Plastic Case 72L*31W*23H
RECS-160C 115 180 CAP Case 46Dia*86long
RECS-205P 230 30 Plastic Case 72L*31W*23H
RECS-220P 230 60 Plastic Case 72L*31W*23H
RECS-240P 230 120 Plastic Case 72L*31W*23H
RECS-260C 230 180 CAP Case 46Dia*86long
