Specifications
Brand Name :
ZOZHI
Model Number :
SCM2-68
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
30000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons , overall size:480x290x350mm/pc, N.W.: 315kgs
Type :
Multistage Centrifugal Pump
Application :
watering
Output :
3HP /2.2KW
Flow Max :
150L/Min
Head Max :
65M
Suction Max :
9M
Phase :
single phase/3phase
Voltage :
220-240v
Description

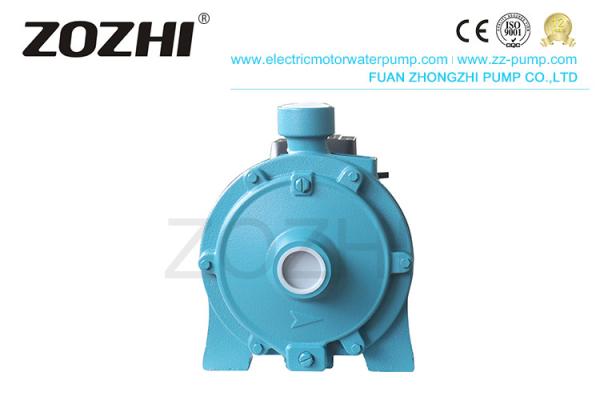

SCM2 Double Impeller Centrifugal Water Pumps For Civil / Industrial Fittings

Multistage Centrifugal Pump

Applications

Twin impeller centrifugal water pumps to lift clean water and non-aggressive liquid. The main feature is the two opposite impellers which allow higher lifts than in the single-impeller model.

They are qualified for civil and industrial fittings, water distribution by tank pressure groups, and irrigation in gardening and agriculture.

Operating Limits

-Suction lift to 6-8m with foot valve.

-Maximum operating pressure: 8 bar.

-Maximum ambient temperature:+40℃.

-Liquid temperature up to +90℃.

-Maximum altitude +1000m.

Design Features

-Pump body/motor support: cast iron.

-Impeller: Brass or PPO or “General Electric”

-Ejector union: PPO or “General Electric”.

-Internal thermal protector.

-Motor shaft: AISI1045.

-Mechanical seal: NBR/Graphite/Ceramic.

Motor

-Single-phase power supply with capacitor permanently activated.

-Insulation class: B -Protection: IP44

-Speed of rotation: 2850rpm

-Continuous duty: S1

Special Features on request

-Stainless steel welding shaft.

-AISI420/AISI304/AISI316 stainless steel shaft.

-FPM/EPDM/SIC/WC mechanical seal.

-Other voltage and frequency.

-Three-phase power.



Double Impeller Centrifugal Water Pumps SCM2 For Civil / Industrial Fittings





TECHNICAL DATA

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
SCM2-45 1 / 0.75 5.2 2850 90 40 9 1"x1" 380x210x240 18.8
SCM2-52 1.5 / 1.1 7 2850 105 50 9 1.25"x1" 415x255x320 23.5
SCM2-60 2.0 / 1.5 9.6 2850 130 55 9 1.25"x1" 415x255x320 24.5
SCM2-68 3.0 / 2.2 13.5 2850 150 65 9 1.5"x1.25" 480x290x350 31

Other voltages and frequencies available on request

Double Impeller Centrifugal Water Pumps SCM2 For Civil / Industrial Fittings


STRUCTURAL CHARACTERISTICS

Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Stator&Rotor 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK,SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC




Multistage Centrifugal Pump ADVANTAGE

100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty



GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ

1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
