Specifications
Brand Name :
ZOZHI
Model Number :
Y2-160M-4
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden cases
Product Name :
3 Phase Induction Motor
Application :
Biomass Pellet Machine
Power :
11KW /15HP
Pole :
4
Phase :
3 Phase
Insulation Classtion Class :
F
Voltage :
380v
Type :
Asynchronous Motor
Description

3 Phase Induction Motor

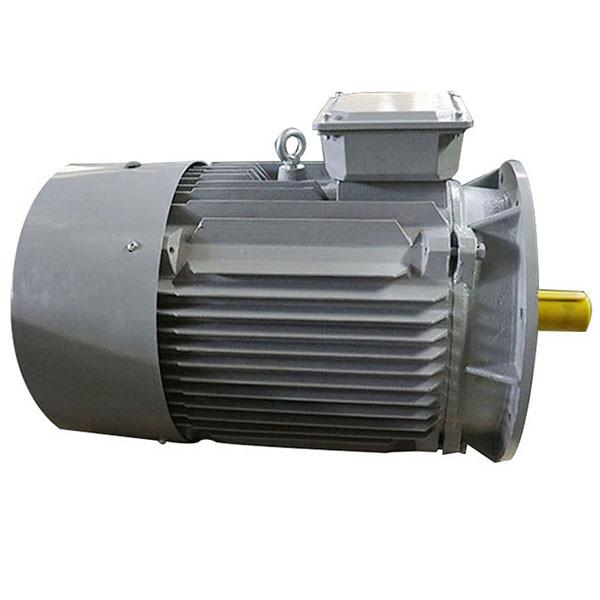

Y2 Series Three Phase AC Electric Motor For Biomass Pellet Machine

Y2 series three-phase ac electric motor, developed with new techniques, are renewal and upgrading products of Y series. Y2 series three-phase ac electric motor are defined as totally enclosed, fan-cooled, squirrel cage type and noted for their novel design, beautiful modeling, compact structure, low noise, high efficiency, ample torque, excellent starting performance, easy serving, etc. According to international practice, the motors are adopted with F class insulation and designed with assessing methods for the insulation System. It dramatically enhances the motor's safety and reliability. Therefore, these motors have reached an advanced international level of such kind products in the initial days of the 90s. Y2 series electric motor can be widely used as driving equipment of various machinery, such as biomass pellet machines, machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.

Data

380V 5OHz Synchronous Speed 1500r/min (4 Poles)
Model Output Current Speed EFF(%) Power Factor EFF(%) Power Factor EFF(%) Power Factor Tstart/Tn Ist/In Tmax/Tn
HP KW (A) (r/min)
Y2-631-4 0.16 0.12 0.42 1310 57 0.72 56.1 0.69 51.9 0.55 2.1 5.2 2.2
Y2-632-4 0.25 0.18 0.62 1310 60 0.73 58.5 0.7 56.7 0.59 2.1 5.2 2.2
Y2-711-4 0.34 0.25 0.79 1330 65 0.74 62.4 0.73 59.3 0.59 2.1 5.2 2.2
Y2-712-4 0.5 0.37 1.12 1330 67 0.75 65.3 0.74 60.1 0.63 2.1 5.2 2.2
Y2-801-4 0.75 0.55 1.57 1390 71 0.75 69.2 0.74 68.6 0.64 2.4 5.2 2.3
Y2-802-4 1 0.75 2.03 1390 73 0.76 71.7 0.75 70 0.67 2.3 6 2.3
Y2-90S-4 1.5 1.1 2.89 1400 75 0.77 73.1 0.75 72 0.67 2.3 6 2.3
Y2-90L-4 2 1.5 3.7 1400 78 0.79 76.1 0.76 74.1 0.69 2.3 6 2.3
Y2-100L1-4 3 2.2 5.16 1430 80 0.81 78 0.79 75.5 0.69 2.3 7 2.3
Y2-100L2-4 4 3 6.78 1430 82 0.82 79.9 0.78 78.5 0.7 2.3 7 2.3
Y2-112M-4 5.5 4 8.8 1440 84 0.82 82.9 0.79 81.1 0.7 2.3 7 2.3
Y2-132S-4 7.5 5.5 11.7 1440 85 0.83 83.8 0.81 82.2 0.73 2.3 7 2.3
Y2-132M-4 10 7.5 15.6 1440 87 0.84 85.6 0.82 83.6 0.74 2.3 7 2.3
Y2-160M-4 15 11 22.3 1460 88 0.84 86.8 0.83 85.9 0.75 2.2 7.5 2.3
Y2-160L-4 20 15 30.1 1460 89 0.85 88.9 0.83 88.5 0.75 2.2 7.5 2.3
Y2-180M-4 25 18.5 36.5 1470 90.5 0.86 90 0.82 89.5 0.77 2.2 7.5 2.3
Y2-180L-4 30 22 43.2 1470 91 0.86 90.2 0.84 89.9 0.76 2.2 7.2 2.3
Y2-200L-4 40 30 57.6 1470 92 0.86 91.5 0.84 90.8 0.77 2.2 7.2 2.3
Y2-225S-4 50 37 69.9 1480 92.5 0.87 91.9 0.87 90.3 0.8 2.2 7.2 2.3
Y2-225M-4 60 45 84.7 1480 92.8 0.87 92.4 0.87 90.9 0.8 2.2 7.2 2.3
Y2-250M-4 75 55 103 1480 93 0.87 92.7 0.89 91.2 0.81 2.2 7.2 2.3
Y2-280S-4 100 75 140 1480 93.8 0.87 92.4 0.86 91.6 0.8 2.2 7.2 2.3
Y2-280M-4 125 90 167 1490 94.2 0.87 93 0.86 92.8 0.78 2.2 7.2 2.3
Y2-315S-4 150 110 201 1490 94.5 0.88 93.3 0.87 92.8 0.81 2.1 6.9 2.2
Y2-315M-4 180 132 240 1490 94.8 0.88 93.8 0.87 93 0.81 2.1 6.9 2.2
Y2-315L1-4 220 160 287 1490 94.9 0.89 93.9 0.88 93.1 0.81 2.1 6.9 2.2
Y2-315L2-4 270 200 359 1490 95 0.89 94.1 0.88 93.8 0.82 2.1 6.9 2.2
Y2-355M-4 340 250 443 1485 95.3 0.9 94.3 0.88 94 0.83 2.1 6.9 2.2
Y2-355L-4 430 315 556 1485 95.6 0.9 94.5 0.89 94 0.84 2.1 6.9 2.2

Application

Biomass Pellet Machine Three Phase AC Electric Motor F Insulation Classtion Class

Biomass Pellet Machine Main performance characteristics:

1. Simple structure, wide applicability, small footprint, and low noise.

2, powdered feed grass powder can be granulated without (or a little) liquid addition. Therefore, the moisture content of pellet feed is the moisture content of the material before pelleting, which is more conducive to storage.

3. The granules made by this machine have high hardness, a smooth surface, and sufficient internal maturity, which can improve the digestion and absorption of nutrients and kill general pathogenic microorganisms and parasites. As a result, it is suitable for raising rabbits, fish, ducks, and experimental animals—with higher economic benefits than mixed powdered feed.

4. This model is equipped with 1.5 ---- 20 kinds of aperture dies, which can adapt to the granulation of different materials and achieve excellent results.

5. Adapt to different materials to ensure the binding effect. The compression molding of wood chips and corn stalks requires a lot of pressure. In similar granulation equipment, the roller component is the central component of the entire kit, and high-quality alloy steel is used to increase the service life of the roller.
