Specifications
Brand Name :
ZOZHI
Model Number :
MS100L1-4
Certification :
ISO
Place of Origin :
China
MOQ :
10PCS
Price :
negotiated
Payment Terms :
T/T, L/C, Western Union, E-checking
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Output :
2.2kw/3hp
Pole :
4
Motor Bearing: :
C&U (SKF for Choice)
Efficiency: :
IE1/IE2
Motor Housing: :
Aluminum
Protection class: :
IP54/IP55
Insulation Class: :
F class
Color :
customizable
Application :
Food processing equipment
Product Name :
3 Phase Induction Motor
Description

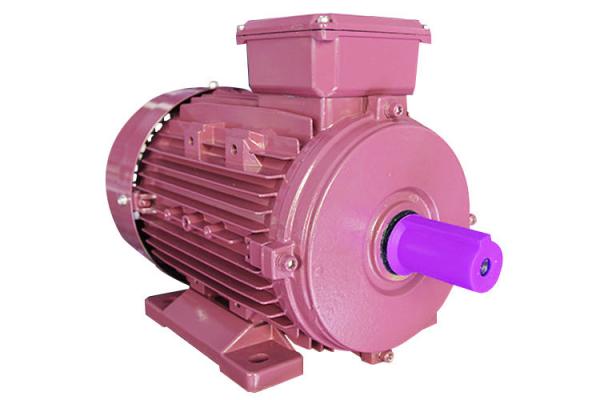

MS100L1-4 2.2KW Three Phase Induction Motor For Corn Grits Milling Machine

3 Phase Induction Motor

MS100L1-4 asynchronous induction motor good performance, safety, and reliable operation, nice appearance, and can be maintained very conveniently while with low noise. Little vibration, at the same time, lightweight and simple construction. These motors can be used for general drive.

1. Customized Production is available.

2. Supply for OEM and After Markets.

3. 100% tested for quality before shipment

4. Certificate and Guarantee: ISO 9001:2008 / one year

5. package: carton&pallet

BRAND ZOZHI PRODUCT CATEGORY ASYNCHRONOUS MOTOR
MODEL MS100L1-4 OUTPUT 2.2KW/3KW
RATED VOLTAGE: 380V RATED FREQUENCY 60HZ
PROTECTION CLASS IP54(IP55) INSULATION CLASS: B, F, H
AMBIENT TEMPERATURE -15 ℃ <θ<40 ℃ WORK SYSTEM S1
APPLICATION CORN GRITS MILLING MACHINE

Technical data

Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5

3 Phase Induction Motor Quality Standard

100% tested for the quality before shipment:


a) Mechanical inspection: Check whether the motor rotates steadily, check whether the parts are complete, correct, and free from knocking and rust, and the surface of the motor is dry and complete, even, free from fouling, bumps, cracks, etc.
b) Determination of the insulation resistance of the stator winding to the casing and the windings

c) Measurement of DC resistance of stator windings under actual cold conditions

d) Determination of no-load current and loss

What is corn grits milling machine?

The corn grits milling machine uses corn kernels as raw materials, which can clean, peel, remove embryos, remove roots, remove black navel, crush, take grits, classify, polish all the processes at once, and produce different grain sizes. The corn grits of different sizes and cornmeal of different meshes produce the finished corn kernels with bright color and no navel, which can be directly entered into supermarkets and grain and oil wholesale markets.

2.2KW Three Phase Induction Motor IE1/IE2 MS100L1-4 For Corn Grits Milling Machine

Our service

1. Directly factory sale

2. Customized production is available

3. Supply for OEM and After Markets.

4. Quick response TO 2-8hours, response rates over 92%

5. 24 hours phone call is available. Feel free to contact us.
6 . We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and the sample making. Also, we can advise how to make the products according to customers' target prices.
