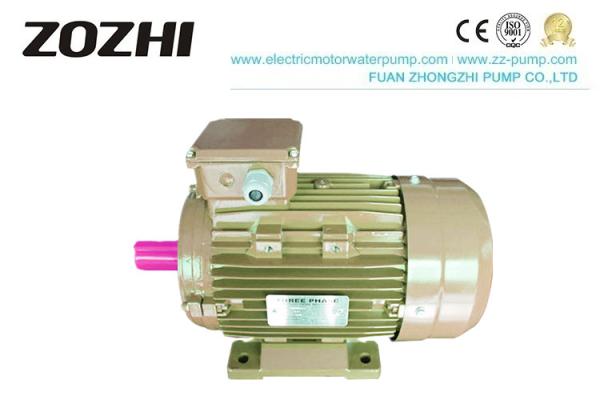

Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency
Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency
Specifications
Brand Name :
ZOZHI
Model Number :
MS802-4
Certification :
ISO
Place of Origin :
China
MOQ :
10PCS
Price :
negotiated
Payment Terms :
T/T, L/C, Western Union, E-checking
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Output :
0.75KW/1HP
Pole :
4
Motor Bearing: :
C&U (SKF for Choice)
Efficiency: :
IE1 IE2 IE3
Motor Housing: :
Aluminum
Protection class: :
IP54/IP55
Insulation Class: :
F class
Color :
customizable
Product Name :
3 Phase Induction Motor
Description

IE2 High-Efficiency Three Phase Asynchronous Ac Motor 1400 0.5kw 0.75kw 2kw 5.5kw 7.5kw

3 Phase Induction Motor

MS series three-phase asynchronous motor. It is a new generation of high-reliability and low-voltage high-power wound rotor three-phase asynchronous motor. To meet the domestic use of various large and medium-sized cranes, overload capacity, high mechanical strength. It can be used in the hoisting and metallurgy field.


And the ventilation structure is a simple, simple shape, smooth lines, good performance, reliable use, easy maintenance, etc.

Main Features


· ICE standard design
· High efficiency, IE-2 and China Efficiency Class 3
· High quality of starting performance
· Fit for full-load starting machine and equipment application
· Mounting:B3,B14,B34,B5,B35

Application

Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency

Technical data

Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5

Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency

Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency
Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency
Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency

Aluminum Three Phase Asynchronous Motor 1400rpm 0.5kw-7.5kw IE2 High Efficiency

3 Phase Induction Motor Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
