4HP 1400RPM Hollow Shaft Motor Aluminum For Piston 200 Bar Pump Vehicle Washer
4HP 1400RPM Hollow Shaft Motor Aluminum For Piston 200 Bar Pump Vehicle Washer
Specifications
Brand Name :
ZOZHI
Model Number :
100L2-4
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
Hollow Shaft Motor
Application :
Pressure Washers /Vehicle Wahser
Output :
3kw/4HP
Pole :
4
Phase :
three phase
Speed :
1400rpm
Description

4HP 1400RPM Hollow Shaft Motor Aluminum For Piston 200 Bar Pump Vehicle Washer

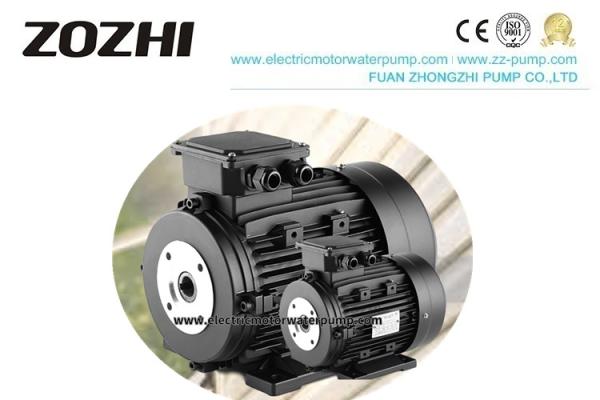

Hollow Shaft Motor

Three-phase HS100L2-4 3KW 4HP 1400RPM aluminum housing hollow shaft motor,100% wire copper, NSK bearing.

Empty metal tube design, direct mounting to the pump, in just a few minutes.

Beautiful appearance, easy operation, low noise, slight vibration, lightweight, simple structure

Operating conditions:

Output 3kw/4HP Model HS100L2-4
Duty S1 Speed 1400RPM
Ambient temperature -15℃≤θ≤60℃ Rated voltage 380V
Frequency 60HZ Protection class IP55/54
Phase 3 Pole 4
Insulation Class F Efficiency IE3/IE2

4HP 1400RPM Hollow Shaft Motor Aluminum For Piston 200 Bar Pump Vehicle Washer

Application

3kw 4hp 1400RPM three-phase hollow shaft motor can be direct-connected with 200bar plug pumps

t is a perfect choice for fitting on compact professional high-pressure washers as well as washing systems for motor vehicles on account of the excellent duration of its seals

4HP 1400RPM Hollow Shaft Motor Aluminum For Piston 200 Bar Pump Vehicle Washer

Data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

4HP 1400RPM Hollow Shaft Motor Aluminum For Piston 200 Bar Pump Vehicle Washer


4HP 1400RPM Hollow Shaft Motor Aluminum For Piston 200 Bar Pump Vehicle Washer



Hollow Shaft Motor GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods are produced by ourselves. We provide one-stop services from designing and printing to processing. Customers can provide the design according to your request and sample making; also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C.
