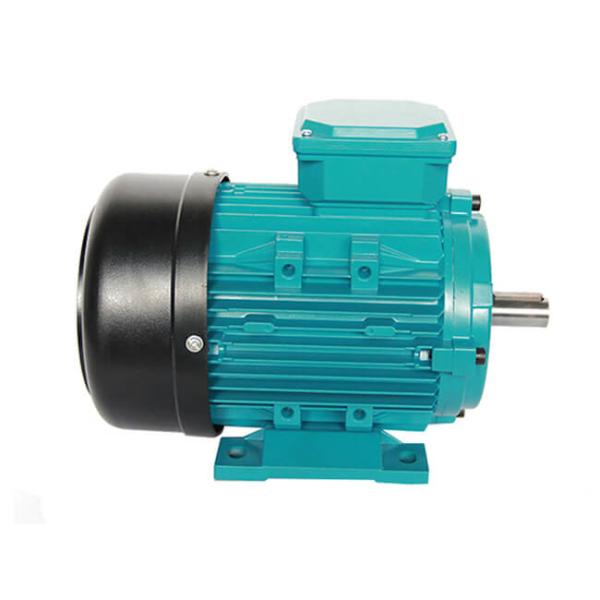

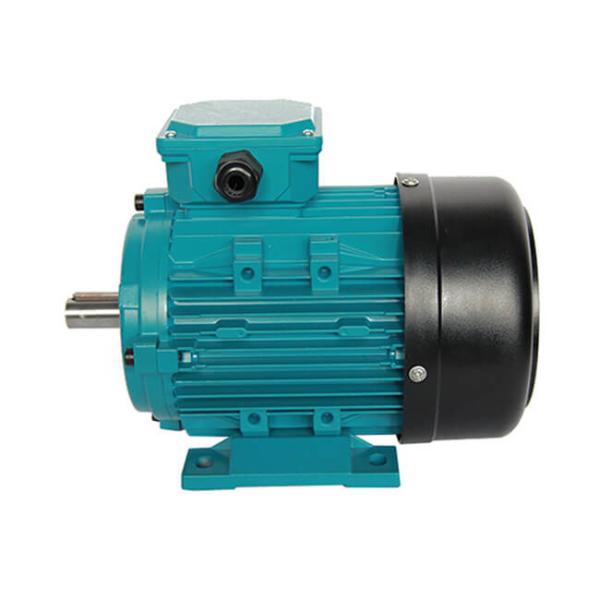

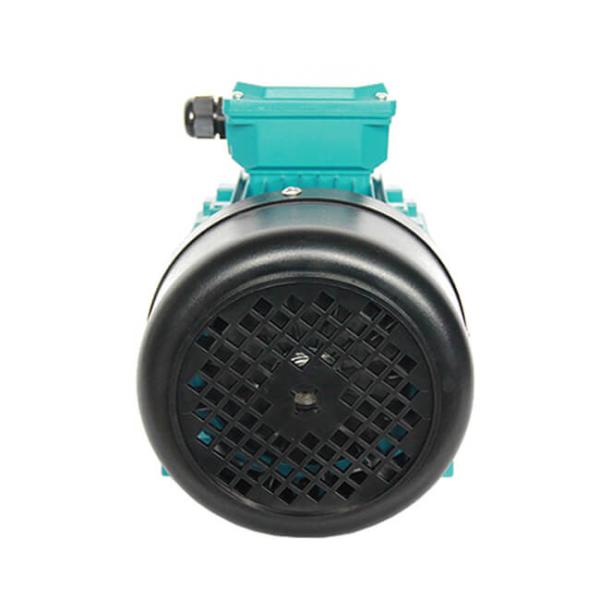

1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2
Specifications
Brand Name :
ZOZHI
Model Number :
MY802-2
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
USD 15-20 piece
Payment Terms :
L/C, T/T
Supply Ability :
1000 piece per month
Delivery Time :
30 work days
Packaging Details :
Plywood box
Power :
0.75KW
Application :
Industry Machine
Standard or nonstandard :
Standard
Voltage :
220V-240V
Warranty :
One Year
Material :
Aluminum
Product name :
Electric Motor Water Pump
Color :
Customer Specifications
Motor :
Single Phase
Feature :
High Efficiency
Frequency :
50HZ 60 Hz
Description

1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2

MY high-speed ac motor :

1, Electrical motor with the latest design in entirety, is made of quality materials and meets the IEC standard's relative rules.
2, MY electrical motors have good performance, safe and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration, lightweight and simple construction.
3, MY electrical motors can be used on household appliances, pumps, fans, recording meters, etc.
The technical date at 50 Hz
Model Power Voltage
(V)		 Current
(A)		 Speed
(r.p.m)		 Eff
(%)		 Power
factor		 Locked rotor
torque Rated
torque		 Locked rotor
current
rated current		 Start
current
(A)
KW HP
MY631-2 0.18 1/4 220 1.48 2800 60 0.92 0.4 1.7 5
MY632-2 0.25 1/3 220 1.96 2800 63 0.92 0.4 1.7 7
MY711-2 0.37 1/2 220 2.73 2800 67 0.92 0.35 1.7 10
MY712-2 0.55 3/4 220 3.88 2800 70 0.92 0.35 1.7 15
MY801-2 0.75 1 220 5.15 2800 72 0.92 0.33 1.7 20
MY802-2 1.1 1.5 220 7.02 2800 75 0.95 0.33 1.7 30
MY90S-2 1.5 2 220 9.44 2800 76 0.95 0.3 1.7 45
MY90L-2 2.2 3 220 13.67 2800 77 0.95 0.3 1.7 65
MY631-4 0.12 1/6 220 1.1 1400 55 0.9 0.4 1.7 3.5
MY632-4 0.18 1/4 220 1.62 1400 56 0.9 0.4 1.7 5
MY711-4 0.25 1/3 220 2.02 1400 61 0.92 0.35 1.7 7
MY712-4 0.37 1/2 220 2.95 1400 62 0.92 0.35 1.7 10
MY801-4 0.55 3/4 220 4.25 1400 64 0.92 0.35 1.7 15
MY802-4 0.75 1 220 5.45 1400 68 0.92 0.32 1.7 20
MY90S-4 1.1 1.5 220 7.45 1400 71 0.95 0.32 1.7 30
MY90L-4 1.5 2 220 9.83 1400 73 0.95 0.3 1.7 45

1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2

1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2

1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2

1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2

1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2

1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2

1HP 0.75KW 230V Single Phase Electric Motor 2800RPM Aluminum Housing MY802-2

Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
