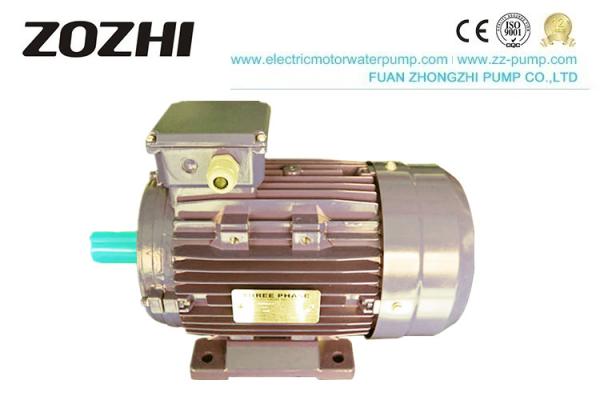

MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive
MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive
Specifications
Brand Name :
ZOZHI
Model Number :
IE2 MS132S2-2
Certification :
CE,ISO
Place of Origin :
FUAN CHINA
MOQ :
10pcs
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Name :
IE2 Motor
Output :
7.5kw/10Hp
Voltage :
230/400V/60HZ
Winding Material :
100% Copper Wire
Standard :
IEC 2
Housing :
Aluminum
Pole :
4
Phase :
3 Phase
Description

Aluminum Housing MS Motor 7.5kw Three-Phase Asynchronous Electric Motor For General Drive

IE2 Motor Description

MS series aluminum housing three-phase asynchronous motors with the latest design entirely is made of selected quality materials and conform to the IEC standard,

M.S. motors have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently.

M.S. series motors with low noise, slight vibration, and at the same time lightweight and simple construction.

M.S. motors can be used for general drive.

Operating Conditions:

Ambient temperature:-15C-40C

Altitude: not exceed 1000M

Rated voltage:380V

rated frequency;50HZ or 60HZ

Protection type: Ip54 or IP55

Insulation class: B or F

Cooling method: IC411 Duty: S1(continuous)

IE2 Motor Operating Limits

  • Ambient temperature:-15℃≦0≦40℃

  • Protection:IP44/IP54/IP55

  • Insulation Class: B/F/H

  • Rated voltage:380V or any voltage between 220-760V

  • Frequency:50HZ/60HZ

  • Duty: S1(continuous)

  • Above sea level: not exceed 1000m

  • Cooling method: ICO141

  • Connection:star-connection for up to 4HP,

  • delta-connection for 5HP and above.

IE2 Motor Application

Suitable for all kinds of machinery, such as quick stop, accurate positioning, reciprocating operation, frequent start, and prevent sliding. Such as water pump, transport machinery, fan blower, mixer, food machinery, construction machinery, CNC machinery, mining machinery, compressor, forging machinery, etc

MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive

Production Line
MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive



IE2 Motor Technical Data

Model Power (V) (A) (r/min) Eff. (%) P.F. Ist/In Tmax/Tn
Kw HP 50% 75% 100%
IE2 MS801-2 0.75 1 230/400 3.0/1.73 2800 76.5 77.3 77.4 0.813 2.2 2.3
IE2 MS802-2 1.1 1.5 4.2/2.43 2800 79 80 79.6 0.825 2.2 2.3
IE2 MS90S-2 1.5 2 5.53/3.19 2820 80.2 81.5 81.3 0.837 2.2 2.3
IE2 MS90L-2 2.2 3 7.93/4.58 2820 82.2 83.5 83.2 0.837 2.2 2.3
IE2 MS100L-2 3 4 10.5/6.06 2830 84 85.1 84.6 0.848 2.2 2.3
IE2 MS112M-2 4 5.5 400/690 7.97/4.6 2850 85.4 86.8 85.8 0.848 2.2 2.3
IE2 MS132S1-2 5.5 7.5 10.65/6.15 2870 86.7 87.3 87 0.86 2 2.3
IE2 MS132S2-2 7.5 10 14.35/8.28 2870 87.6 88.3 88.1 0.86 2 2.3
IE2 MS160M1-2 11 15 20.74/11.97 2900 89 89.8 89.4 0.86 2 2.3
IE2 MS160M2-2 15 20 27.99/16.16 2900 90 90.5 90.3 0.86 2 2.3
IE2 MS160L-2 18.5 25 33.83/19.53 2900 90.3 91 90.9 0.872 2 2.2
IE2 MS802-4 0.75 1 230/400 3.28/1.9 1380 77.3 79.8 79.6 0.72 2.3 2.3
IE2 MS90S-4 1.1 1.5 4.57/2.64 1400 79.9 81.7 81.4 0.743 2.3 2.3
IE2 MS90L-4 1.5 2 6.02/3.48 1400 82.1 83.5 82.8 0.755 2.3 2.3
IE2 MS100L1-4 2.2 3 8.42/4.86 1420 82.6 84.5 84.3 0.778 2.2 2.3
IE2 MS100L2-4 3 4 11.32/6.54 1420 84.2 85.7 85.5 0.778 2.2 2.3
IE2 MS112M-4 4 5.5 400/690 8.47/4.89 1430 85.8 87 86.6 0.79 2.2 2.3
IE2 MS132S-4 5.5 7.5 11.18/6.45 1450 87.4 88.3 87.7 0.813 2.2 2.3
IE2 MS132M-4 7.5 10 14.85/8.58 1450 88.2 89 88.7 0.825 2.2 2.3
IE2 MS160M-4 11 15 21.84/12.61 1460 89.1 90 89.8 0.813 2.2 2.3
IE2 MS160L-4 15 20 29.08/16.79 1460 90.2 91.1 90.6 0.825 2.2 2.3
IE2 MS90S-6 0.75 1 230/400 3.82/2.2 910 73.4 76.3 75.9 0.65 2 2.2
IE2 MS90L-6 1.1 1.5 5.25/3.03 910 77 78.8 78.1 0.673 2 2.2
IE2 MS100L-6 1.5 2 6.77/3.91 940 79.6 80.8 79.8 0.697 2 2.2
IE2 MS112M-6 2.2 3 9.69/5.59 940 80.4 81.6 81.8 0.697 2 2.2
IE2 MS132S-6 3 4 12.56/7.25 960 81 83.4 83.3 0.72 2 2.2
IE2 MS132M1-6 4 5.5 400/690 9.36/5.4 960 82.7 84.5 84.6 0.732 2 2.2
IE2 MS132M2-6 5.5 7.5 12.47/7.2 960 84.8 86.2 86 0.743 2 2.2
IE2 MS160M-6 7.5 10 16.78/9.69 970 86.4 87.5 87.2 0.743 2 2
IE2 MS160L-6 11 15 24.19/13.97 970 88.2 89.2 88.7 0.743 2 2


Performance comparison chart:

ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM
Power(kw) eff2 (nominal) eff1 (nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 79.6 82.5
1.1 76.2 83.8 81.4 84.1
1.5 78.5 85.0 82.8 85.3
2.2 81 86.4 84.3 86.7
3.0 82.6 87.4 85.5 87.7
4.0 84.2 88.3 86.6 88.6
5.5 85.7 89.2 87.7 89.6
7.5 87 90.1 88.7 90.4
11 88.4 91.0 89.8 91.4
15 89.4 91.8 90.6 92.1
18.5 90 92.2 91.2 92.6
22 90.5 82.6 91.6 93.0
30 91.4 93.2 92.3 93.8
37 92 93.6 92.7 93.9
45 92.5 93.9 93.1 94.2
55 93 94.2 93.5 94.6
75 93.6 94.7 94.0 95.0
90 93.9 95.0 94.2 95.2
110 94.5 95.4
132 94.7 95.6
160 94.9 95.8
200...375 95.1 96.0

MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive

MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive
