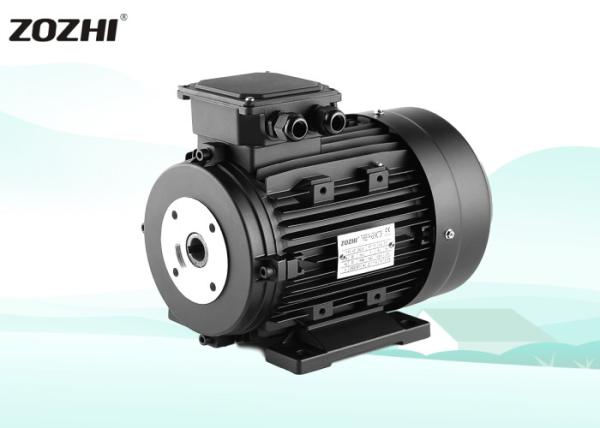

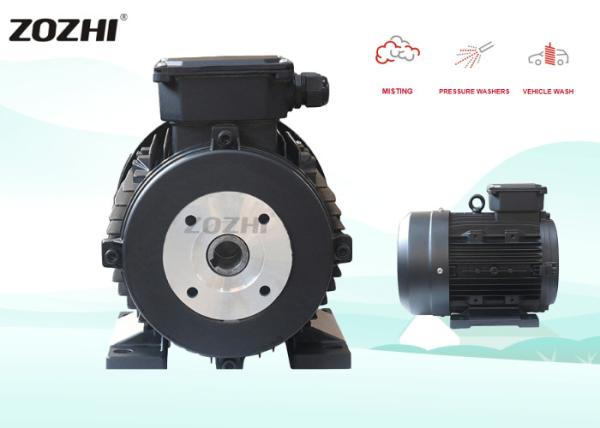

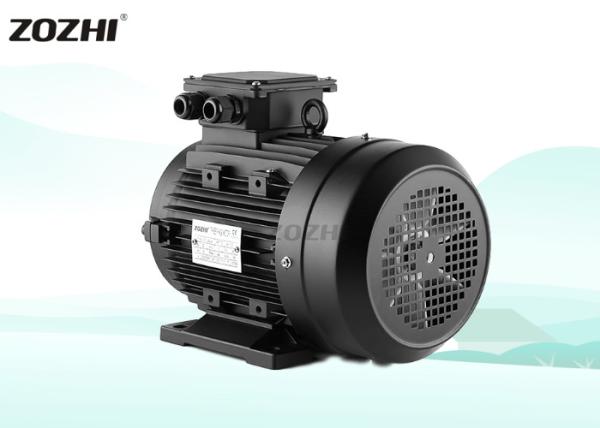

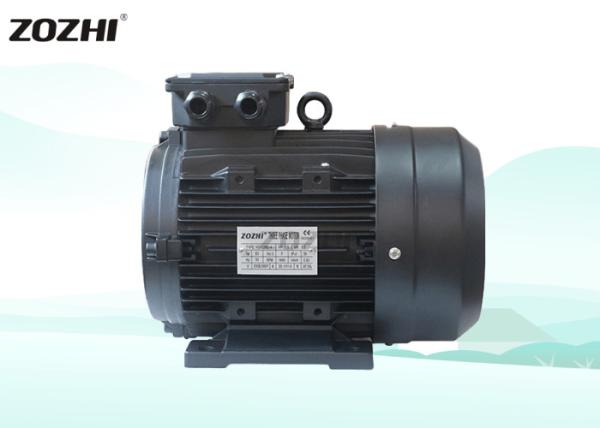

Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
Specifications
Brand Name :
ZOZHI
Model Number :
112M2-4
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
Hollow Shaft Motor
Voltage :
230V
Phase :
single phase
Output :
5hp/3.7kw
Speed :
1400rpm
Shaft :
24mm
Frame :
90
Material :
Die Cast Aluminum
Pole :
4
Insulation :
Class F
Protection :
IP55
Installation :
B3 B5 B14 B34 B35
IEC Standard :
IE1
Application :
cleaning machine / pressure washer machine
Description

Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum

Hollow Shaft Motor

Hollow shaft electric motor

high starting torque

380 Voltage rating, frequency 60HZ

low noise level and vibration, compact structure, and easy maintenance

F insulation, class B

IEC standard

Aluminum housing

50Hz Electric Motor - B3 - Hollow shaft - Single Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F. U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22

Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum
FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
90 90mm 90L R.C.
100 90mm 100L RC - RR - RS - XT NHD - NHDP
112 61/90mm 112M XM - RK - RS-RC - RR

Low Rpm AC Three Phase Electric Motor Hollow Shaft 3.7kw/5hp Die Cast Aluminum

Our Service

1. Customized Production is available.

2. Supply for OEM and After Markets.

3. 100% tested for quality before shipment

4. Certificate and Guarantee: ISO 9001:2008 / one year

5. package: carton&pallet
