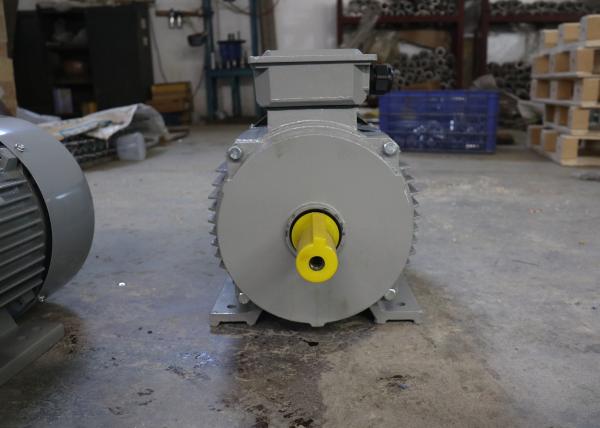

2 Pole IP55 50kw 3000rpm 3 Phase Induction Motor For Planer
2 Pole IP55 50kw 3000rpm 3 Phase Induction Motor For Planer
2 Pole IP55 50kw 3000rpm 3 Phase Induction Motor For Planer
2 Pole IP55 50kw 3000rpm 3 Phase Induction Motor For Planer
2 Pole IP55 50kw 3000rpm 3 Phase Induction Motor For Planer
2 Pole IP55 50kw 3000rpm 3 Phase Induction Motor For Planer
Specifications
Brand Name :
ZOZHI
Model Number :
Y2-250M-2
Certification :
ISO
Place of Origin :
China
MOQ :
10PCS
Price :
negotiated
Payment Terms :
T/T, L/C, Western Union, E-checking
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Output :
50kw
Pole :
2
Motor Bearing: :
C&U (SKF for Choice)
Efficiency: :
IE1,IE2,IE3
Motor Housing: :
Cast iron
Protection class: :
IP54/IP55
Insulation Class: :
F class
Color :
customizable
Product Name :
3 Phase Induction Motor
Description

3 Phase Induction Motor Description

Y2 series three-phase asynchronous motor developed with new techniques are renewal and upgrading series products.

Y2 series motors are enclosed, fan-cooled, squirrel cage types. They are noted for their novel design, beautiful model, compact structure, low noise, high efficiency, large torque, excellent starting performance, easy serving, etc. According to international practice, the motors are adopted with F class insulation and designed with assessing methods for the insulation system, enhanced greatly have reached an advanced international level of the same kind of products at the initial days of the 90S.

Y2 series motors can be widely used as driving equipment of various machinery, such as machine tools, blowers, pumps,00mpressors, transporters, agricultural, and food processing. Pedestal installation size, center height, and other motor indexes are ultimately measured by Y series three-phase asynchronous motor.

This series of motors are enclosed structure, protection class IP44, IP54, IP55, a cooling method for the fan-cooled IC411, Class B & F insulation.

3 Phase Induction Motor Working Condition

Ambient temperature: -15℃≤~≤40℃
Altitude: not exceed 1000 m
Rated voltage:380V or any voltage between 220V - 760V
Duty: S1 (continuous)
Connection :Star - connection for up to 3KW , delta - connection for 4KW and above

Technical data

Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
ASynchronous Speed 3000 r/min (2 Poles)
Y2-631-2 0.18 0.52 0.8 65 2825 2.2 5.5 2.2
Y2-362-2 0.25 0.69 0.81 68 2840 2.2 5 2.2
Y2-711-2 0.37 0.99 0.82 70 2840 2.2 6 2.2
Y2-712-2 0.55 1.4 0.83 73 2880 2.2 6 2.2
Y2-801-2 0.75 1.8 0.84 75 2890 2.2 6 2.2
Y2-802-2 1.1 2.6 0.84 77 2900 2.2 7 2.2
Y2-90S-2 1.5 3.4 0.85 79 2900 2.2 7 2.2
Y2-90L-2 2.2 4.8 0.87 81 29000 2.2 7 2.2
Y2-100L-2 3 6.3 0.88 83 2930 2.2 7 2.2
Y2-112M-2 4 8.1 0.88 85 2930 2.2 8 2.2
Y2-132S1-2 5.5 11 0.88 86 2940 2.2 8 2.2
Y2-132S2-2 7.5 15 0.88 87 2950 2.2 8 2.2
Y2-160M1-2 11 21.3 0.89 88 2950 2 8 2.2
Y2-160M2-2 15 28.7 0.9 89 2970 2 8 2.2
Y2-160L-2 18.5 34.6 0.9 90 2970 2 8 2.2
Y2-180M-2 22 40.9 0.9 90 2970 2 8 2.2
Y2-200L1-2 30 55.4 0.9 91.2 2970 2 8 2.2
Y2-200L2-2 37 67.7 0.9 92 2980 2 8 2.2
Y2-225M-2 45 82.3 0.9 92.3 2980 1.8 8 2.2
Y2-250M-2 55 101 0.9 92.5 2980 1.8 7 2.2
Y2-280S-2 75 134 0.9 93 2980 1.8 7 2.2
Y2-280M-2 90 160 0.91 93.8 2980 1.8 7 2.2
Y2-315S-2 110 195 0.91 94 2980 1.8 6.8 2.2
Y2-315M-2 132 233 0.91 94.5 2980 1.8 6.8 2.2
Y2-315L1-2 160 279 0.92 94.6 2980 1.8 6.8 2.2
Y2-315L2-2 200 348 0.92 94.8 2980 1.8 6.8 2.2
Y2-355M1-2 250 433 0.92 95.3 2980 1.6 7 2.2
Y2-355L2-2 315 544 0.92 95.6 2980 1.6 7.1 2.2

2 Pole IP55 50kw 3000rpm 3 Phase Induction Motor For Planer


Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
