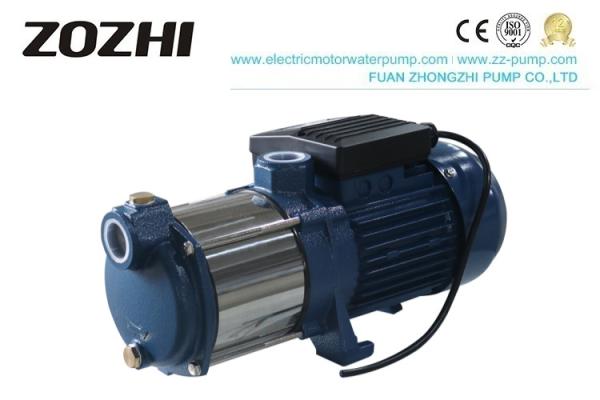

MH 90 Series 50HZ IP55 90L/Min Stainless Steel Multistage Pump
MH 90 Series 50HZ IP55 90L/Min Stainless Steel Multistage Pump
Specifications
Brand Name :
ZOZHI
Model Number :
MH90
Certification :
CE,ISO
Place of Origin :
FUAN CHINA
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Suction/discharge mounting :
Cast iron
Mechanical seal :
Graphite/Silicon carbide/NBR
Bearing :
Bearing steel by NSK
Impeller :
Sabic PPO/stainless steel
Pump housing :
Stainless Steel
Diffuser :
Sabic PPO
Motor shaft :
316 stainless
Product Name :
Multistage Centrifugal Pump
Description

Applications

-for domestic and small industrial usage

-garden irrigation

-pressure boosting

-cooling systems

Multistage Centrifugal Pump

General

Guarantee 3 years

Pump type Centrifugal multistage

Pump

Self-priming 7m

Typical noise 64dB

Connection inlet G1”, outlet G1”

The temperature of pumped liquid 0-65℃

Maximum capacity of 90L/min

Head up to 64m

Motor

Asynchronous two poles

Thermal protector inbuilt (single phase)

Protection class IP55

Insulation Class F

Continuous operation S1

Maximum ambient temperature 40℃

Materials

Suction/discharge mounting Cast iron

Mechanical seal Graphite/Silicon carbide/NBR

Bearing steel by NSK

Impeller Sabic PPO/stainless steel

Pump housing Stainless Steel

Diffuser Sabic PPO

Motor shaft 316 stainless

MH 90 Series 50HZ IP55 90L/Min Stainless Steel Multistage Pump

MH 90 Series 50HZ IP55 90L/Min Stainless Steel Multistage Pump
