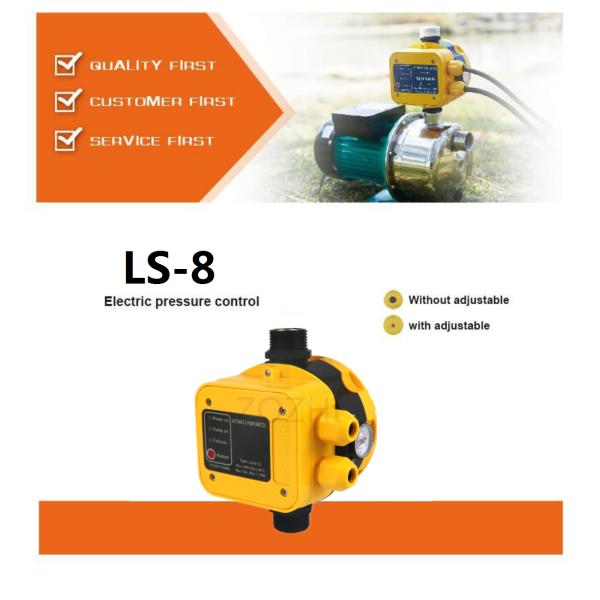

LS-8 automatic water pump pressure switch pressure control for clarified water pump

TECHNICAL DATA:

• RATED VOLTAGE:220V/110V
• FREQUENCY:50/60HZ
• MAX CURRENT:10A
• Max Power: 1.1kw
• Adjustment Pressure: 1.0-3.5bar
• Not Adjustment Pressure: 0.8 1.2 1.5 2.2bar
• Max Working/ Pressure: 10bar
• JOINT SCREW: G1
• PROTECTION GRADE: IP65
• Temperature: 90 degree
• Packing Size(cm): 60x47x20
• PCS/CTN: 12
• N.W (kgs) 13.03
• G.W (kgs) 15.58

DESCRIPTIONS:

• The product can replace the complicated installations of automatic water pumps e.g. pressure gauge, pressure switch, T-valve, check valve, and pressure tank ). It has the features of stable performance, low maintenance, and long life, etc. It will indicate the pump has started when the green light Power on lights up after connecting the power. When the yellow light Pump lights up, it indicates the pump has been started. The pump continues to operate for a few minutes enabling the system to fill in the pipes and to reach the required pressure. If this lapse is insufficient, the red light Failure will light up. In this event, keep the Restart button pressed and wait, with a tap opened till the red light is off. Once released the button and closed the tap, the product will keep the pump at its maximum pressure.
• Function:

1.Electric switch used in water systems, start and stop the pump automatically

2.Examine the water automatically, stop the pump in the case of water shortage, protect the pump from damage caused by dry-running

3.Completely replaced traditional pump control system composed of the pressure switch, pressure tank, and check valve, etc.

Options:

• color

• G1"plastic pipe joint for a quick connection to the water pump

• power cable length can choose according to customers' needs.

Main market:

• EUROPE
• MIDDLE EAST
• SOUTH AMERICA
