Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume
Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume
Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume
Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume
Specifications
Brand Name :
ZOZHI
Model Number :
HS712-2
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
Hollow Shaft Motor
Description

Hot Sale ZOZHI Hs712-2 0.55kw 0.75HP High-efficiency Aluminum Housing Hollow Shaft Electric Motor For Cleaning Machine

Hollow Shaft Motor


Description

The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and at the same time provides a reliable and cost-efficient solution

we have a wide range of flanges and shafts suitable for direct coupling with the majority of the pumps on the market today

Model: HS712-2

Frame Size:712

Power: 0.75HP/0.55KW

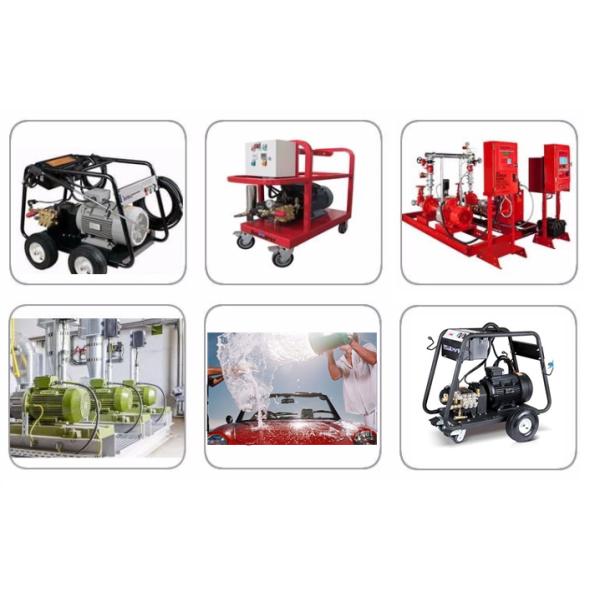

Application

The hollow shaft electric motor has the advantages of reducing volume, weight, noise, multi-purpose, reducing cost, simple manufacture, and convenient use. It has a wide range of applications and can be used as pumps, ventilation equipment, supercharged equipment, small hydroelectric generators, propellers, etc.

Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request

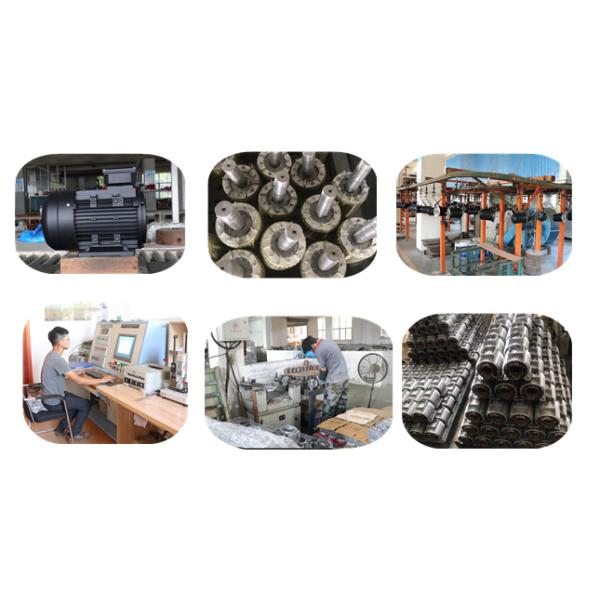

Production line

Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume

Production data

Three-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400 34
160M3-2 22 30 2920 0.87 89.2 400 41

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume

Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume
Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume
Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume Hs712-2 0.55kw 0.75HP Hollow Shaft Motor 400V 50HZ Low Noise Small Volume

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
