HS132S2-2

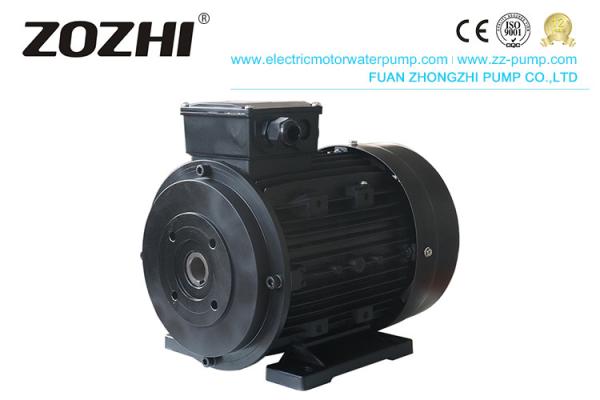

7.5KW,10HP, 3000 RPM, 3 Phase, Hollow Shaft Electric Motor
ZOZHI Made high-quality Hollow shaft Motor
The hollow shaft motor has a baffle and flange on the front side. The first is equipped with bearings to protect the internal engine, the second is supported by the pump and contains flexible joints. The unique design reduces the overall size of the hollow shaft. It maintains all of the standard motor Technical and maintenance advantages—greatly optimized mechanical design, saving design space and production.
The hollow shaft motor has the advantages of reducing volume, weight, noise, multi-purpose, reducing cost, simple manufacture, and convenient use. It has a wide range of applications and can be used as pumps, ventilation equipment, supercharged equipment, small hydroelectric generators, propellers, etc.
1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 230V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 60HZ, other frequency on request
Production line
Production data
Single-Phase 2 Poles 3000Rpm 50Hz | ||||||||
FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
KW | H.P. | P.F. | U.F. | V | A | |||
711-2 | 0.37 | 0.5 | 2790 | 0.95 | 62 | 12.5 | 230 | 2.7 |
712-2 | 0.55 | 0.75 | 2790 | 0.98 | 61 | 16 | 230 | 4.0 |
90L1-2 | 1.8 | 2.5 | 2850 | 0.95 | 65 | 50 | 230 | 12.7 |
90L2-2 | 2.2 | 3 | 2840 | 0.99 | 72 | 60 | 400 | 13.4 |
100L2 | 2.2 | 3 | 2850 | 0.96 | 74 | 85 | 400 | 15.3 |
Single-Phase 4 Poles 1500Rpm 50Hz | ||||||||
FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
KW | H.P. | P.F. | U.F. | V | A | |||
711-4 | 0.25 | 0.35 | 1360 | 0.91 | 57 | 10 | 230 | 2.1 |
712-4 | 0.37 | 0.5 | 1380 | 0.94 | 65 | 16 | 230 | 2.6 |
90L1-4 | 1.5 | 2 | 1400 | 0.98 | 70 | 45 | 230 | 9.5 |
100L1-4 | 1.85 | 2.5 | 1390 | 0.97 | 68 | 55 | 230 | 12.2 |
100L2-4 | 2.2 | 3 | 1350 | 0.99 | 74 | 70 | 230 | 13.1 |
100L3-4 | 2.6 | 3.5 | 1350 | 0.96 | 74 | 80 | 230 | 17.5 |
112M1-4 | 3 | 4 | 1400 | 0.98 | 74 | 80 | 230 | 18.1 |
112M2-4 | 3.7 | 5 | 1410 | 0.96 | 76 | 100 | 230 | 22 |
Three-Phase 2 Poles 3000Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
711-2 | 0.37 | 0.5 | 2780 | 0.82 | 82 | 400 | 0.8 |
712-2 | 0.55 | 0.75 | 2790 | 0.83 | 81 | 400 | 1.2 |
90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
Three-Phase 6 Poles 1000Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
71-6 | 0.25 | 0.35 | 880 | 0.73 | 45 | 400 | 1.1 |
90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
