Low Noise Three Phase Asynchronous Motor 400V HS90L2-4 2.2KW 3Hp 1500RPM IP54
Low Noise Three Phase Asynchronous Motor 400V HS90L2-4 2.2KW 3Hp 1500RPM IP54
Low Noise Three Phase Asynchronous Motor 400V HS90L2-4 2.2KW 3Hp 1500RPM IP54
Low Noise Three Phase Asynchronous Motor 400V HS90L2-4 2.2KW 3Hp 1500RPM IP54
Specifications
Brand Name :
ZOZHI
Model Number :
HS90L2-4
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
Hollow Shaft Motor
Application :
Pressure Pump
Output :
2.2KW/3HP
Pole :
4
Flange Size :
90
Ampere :
5.4
Insulation :
Class B
Rotation direction :
Clockwise
Description

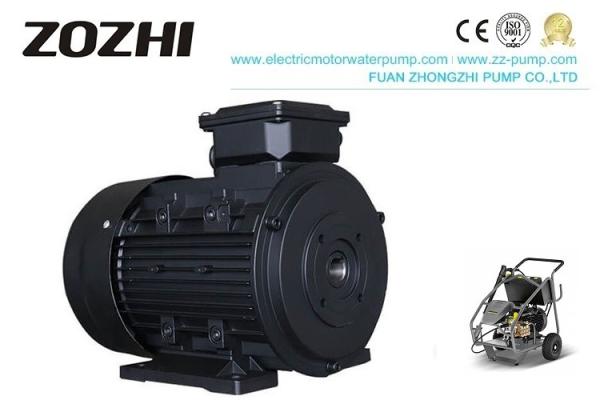

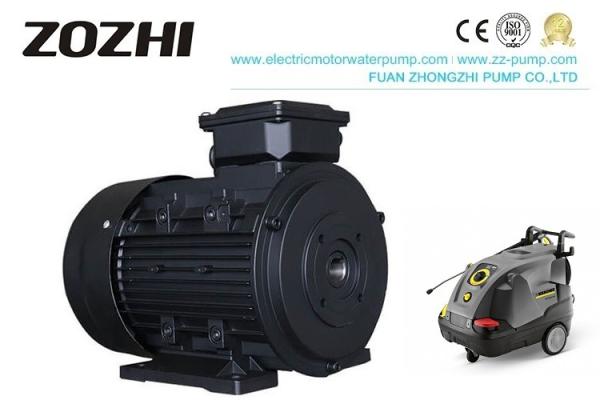

HS90L2-4 2.2KW 3Hp Low Noise Three Phase Hollow Shaft Electric Motor 400V Aluminum Housing Motor 1500Rpm

Hollow Shaft Motor


Description

  • 2.2KW, 3.0 Hp, 1500 RPM, Three Phase, 400v, 50Hz, Hollow Shaft Electric Motor
  • 24mm hollow shaft,
  • 100 Frame:
  • IEC 90L2-4 Mounting B3,
  • For high-pressure pumps
  • 4Pole
  • Die-cast aluminum housing
  • Rated to IP54

Application

The hollow shaft is small in size, light in weight, and easy to use. Therefore, it is widely used in various automated mechanical equipment such as pressure pumps, supercharger equipment, etc.

Low Noise Three Phase Asynchronous Motor 400V HS90L2-4 2.2KW 3Hp 1500RPM IP54

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 380V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request

Production line

Low Noise Three Phase Asynchronous Motor 400V HS90L2-4 2.2KW 3Hp 1500RPM IP54

Hollow Shaft Motor

Production data

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34


Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
