Siemens Type Hollow Shaft Motor HS100L2 3HP 2.2KW Clockwise Rotation Direction
Siemens Type Hollow Shaft Motor HS100L2 3HP 2.2KW Clockwise Rotation Direction
Siemens Type Hollow Shaft Motor HS100L2 3HP 2.2KW Clockwise Rotation Direction
Siemens Type Hollow Shaft Motor HS100L2 3HP 2.2KW Clockwise Rotation Direction
Specifications
Brand Name :
ZOZHI
Model Number :
HS100L2
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
Hollow Shaft Motor
Application :
high pressure pump
Output :
3HP /2.2KW
Pole :
2
Flange Size :
90
Ampere :
15.3
Insulation :
Class B
Rotation direction :
Clockwise
Description

Hollow Shaft Motor

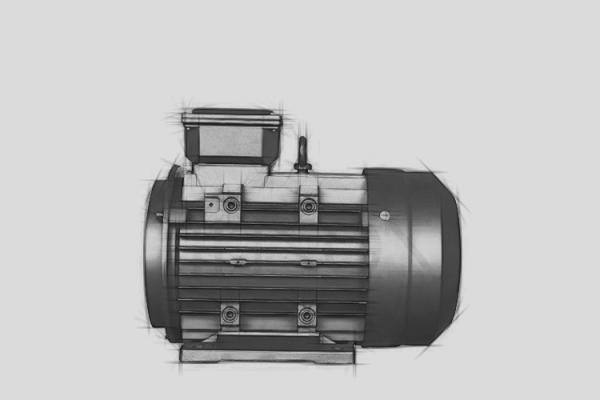

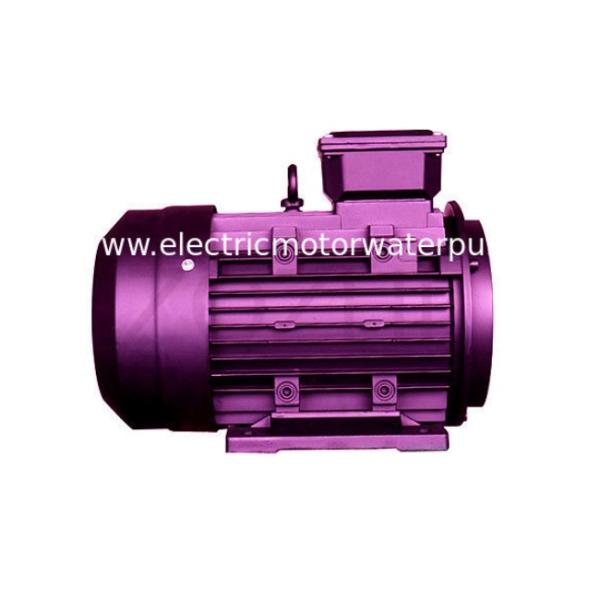

Siemens Type Hollow Shaft Motor for the high-pressure pump HS100L2

Siemens Type Hollow Shaft Motor HS100L2 3HP 2.2KW Clockwise Rotation Direction
Description

single-phase asynchronous motor with a hollow shaft,3HP/2.2KW 300 RPM, Single-Phase,230V 50HZ, excellent new materials, which greatly optimizes the mechanical design, saves design space and production cost, and is widely used in pumps, ventilation equipment, supercharger equipment, small hydraulic power. Generator, etc.

Model: HS100L2

Frame Size:10

Power:3HP/2.2KW

Application

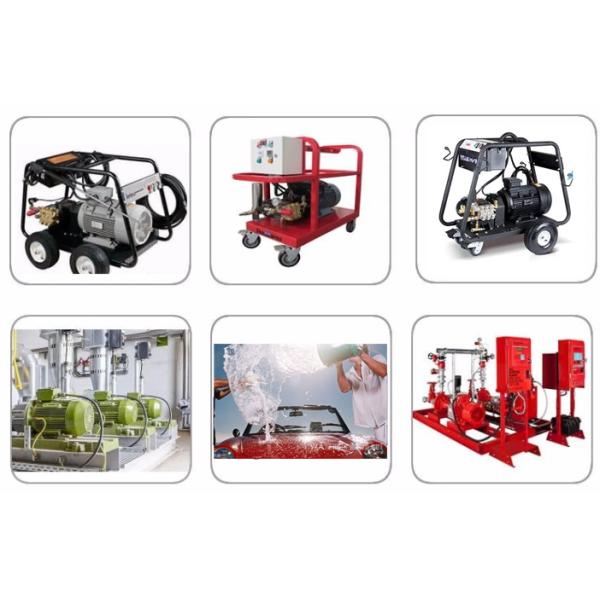

H.S. series hollow shaft motor has a wide range of using, such as with high-pressure pump for cleaners machine, washing machines, and so on

Siemens Type Hollow Shaft Motor HS100L2 3HP 2.2KW Clockwise Rotation Direction

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request

Production line

Siemens Type Hollow Shaft Motor HS100L2 3HP 2.2KW Clockwise Rotation Direction

Hollow Shaft Motor

Production data

Single-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F. U.F. V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3
Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F. U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22


Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
