Electric Hollow Shaft Motor 4 Pole HS 711-4 0.25KW 0.35HP For Cleaner Machine
Electric Hollow Shaft Motor 4 Pole HS 711-4 0.25KW 0.35HP For Cleaner Machine
Electric Hollow Shaft Motor 4 Pole HS 711-4 0.25KW 0.35HP For Cleaner Machine
Electric Hollow Shaft Motor 4 Pole HS 711-4 0.25KW 0.35HP For Cleaner Machine
Specifications
Brand Name :
ZOZHI
Model Number :
HS 711-4
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
Hollow Shaft Motor
Application :
High Pressure Pump
Output :
0.35HP / 25KW
Pole :
4
Flange Size :
Hollow shaft
Ampere :
0.8A
Insulation :
Class B
Rotation direction :
Clockwise
Description

Electric Hollow Shaft Motor 4 Pole HS 711-4 0.25KW 0.35HP For Cleaner Machine

Hollow Shaft Motor
Electric Hollow Shaft Motor 4 Pole HS 711-4 0.25KW 0.35HP For Cleaner Machine

DESCRIPTION:

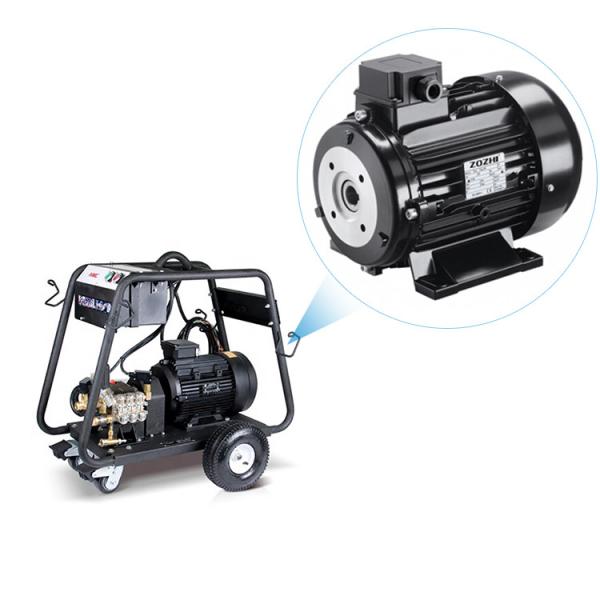

HS 711-4 is a t3 phase induction motor with a hollow shaft, 0.35HP/0.25KW 1370 RPM 400V 50HZ. This direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants.

TECHNICAL DATA:

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.
HS 711-4 0.25 0.35 1370 0.73 64 400 0.81

CATALOG:

Electric Hollow Shaft Motor 4 Pole HS 711-4 0.25KW 0.35HP For Cleaner Machine

Electric Hollow Shaft Motor 4 Pole HS 711-4 0.25KW 0.35HP For Cleaner Machine

Sizing table:

THREE-PHASE 2 POLES 3000RPm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400 34
160M3-2 22 30 2920 0.87 89.2 400 41

THREE-PHASE 4 POLES 1500RPm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

THREE-PHASE 6 POLES 1000RPm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
71-6 0.25 0.35 880 0.73 45 400 1.1
90L-6 1.1 1.5 910 0.72 72 400 3.2
100L-6 1.5 2 910 0.80 74 400 3.9
112M1-6 2.2 3 940 0.80 80 400 5
112M2-6 3 4 940 8 79 400 6.9
132S1-6 3 4 940 0.78 80 400 6.9
132S2-6 4 5.5 950 0.79 82 400 9
132M1-6 5.5 7.5 950 0.79 83 400 12.4
132M2-6 7.5 10 950 0.79 83 400 16.5
160M1-6 7.5 10 960 0.77 87 400 16.5
160M2-6 11 15 960 0.79 88 400 23

APPLICATION:


H.S. series hollow shaft motor has a wide range of uses, such as a high-pressure pump for cleaners machines, washing machines, and so on.

CONTRAST ADVANTAGE:


1. Excellent strength

2. High durability

3. Corrosion resistance

4. Low noise hollow shaft motor



OPERATING CONDITIONS:

1. Ambient temperature: -15℃≤θ≤60℃

2. Altitude: ≤1000m

3. Protection class: IP54

4. Insulation class: class F

5. Rated voltage: 220V, other voltage on request

6. Cooling type: IC 0141

7. Duty: Continuous(S1)

8. Rated frequency: 50HZ, other frequency on request

PRODUCE LINE PICTURE:

Electric Hollow Shaft Motor 4 Pole HS 711-4 0.25KW 0.35HP For Cleaner Machine


Hollow Shaft Motor GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
