Specifications
Brand Name :
ZOZHI
Model Number :
DB-550
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
30000pcs per month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons , overall size:310x170x200mm/pc, N.W.: 9kgs
Item :
Vortex Water Pump
Application :
Pumping
Power :
0.75HP / 0.55KW
Flow Max :
45L/Min
Head Max :
50M
Impeller :
Brass impeller
Inlet/Outlet :
1"x1"
Frequency :
50 HZ
Product Name :
Electric Motor Water Pump
Description

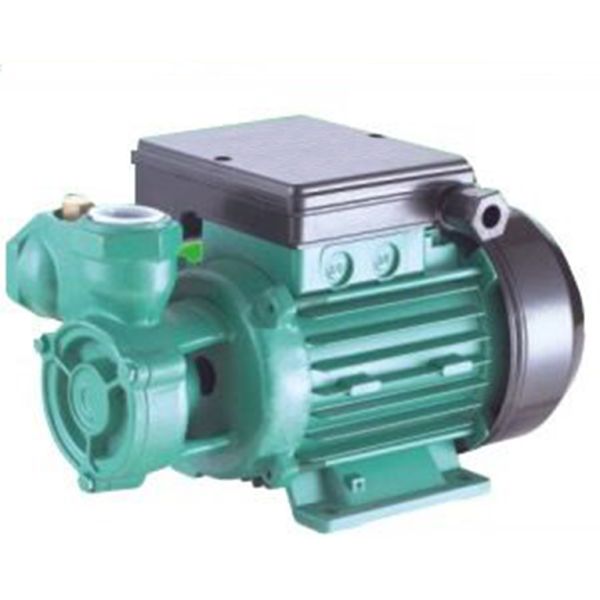

Electric Water Pumps For Houses, Vortex Water Pump For Hotel Using 0.75HP

Electric Motor Water Pump Application:
These project products are mainly used in dry regions for agriculture. However, you can use it for the tank, domestic water supply, water transfer, pressure boosting, irrigation, drinking water, and living water. Therefore, the living condition could be much improved.
Electric Water Pumps For Houses , Vortex Water Pump For Hotel Using 0.75HP
Technical data:

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
DB-550 0.75 / 0.55 3.6 2850 45 50 9 1"x1" 310x170x200 9

Other voltages and frequencies available on request

Electric Motor Water Pump Features:

1. It has advantages of high efficiency, saving energy, low noise, reliable performance
2. The special spray-paint technique, beautiful and more stable
3. S/S screw
4. A brass plate embedded to avoid impeller jam
5. It could meet the need of many parts of the situation according to working temperature, different medium
6. Axial Suction, Radial water Absorption
7. Precision Pumps’ size, high efficiency

Electric Water Pumps For Houses , Vortex Water Pump For Hotel Using 0.75HP



Electric Water Pumps For Houses , Vortex Water Pump For Hotel Using 0.75HP


Structural Characteristics:

Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass/Noryl PPO
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
