Impeller 1HP Hydraulic Pump Electric Motor Centrifugal Submersible 2850RPM
Impeller 1HP Hydraulic Pump Electric Motor Centrifugal Submersible 2850RPM
Impeller 1HP Hydraulic Pump Electric Motor Centrifugal Submersible 2850RPM
Impeller 1HP Hydraulic Pump Electric Motor Centrifugal Submersible 2850RPM
Specifications
Brand Name :
ZOZHI
Model Number :
SCM-26ST
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
30000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons
Product Name :
Self Priming Pump
Application :
Agriculture
Output :
1HP / 0.75KW
Flow Max :
145 L/Min
Head Max :
26M
Suction Max :
9M
Inlet/Outlet :
1"x1"
Speed :
2850RPM
Description


Impeller 1HP Centrifugal Submersible Stainless Steel Water Pump Single-Phase

Impeller 1HP Hydraulic Pump Electric Motor Centrifugal Submersible 2850RPM


Self Priming Pump Descriptions:

These pumps can offer high pressure about comparatively low powers and have remarkably steady operating curves.
For the correct functioning of the pump, use to pump clean water, or non-aggressive liquids only, without sand or other solid impurities.
They are qualified in domestic fitting to increase the system pressure in aqueducts and for automatic water distribution by autoclave tanks and hydrosphere units.

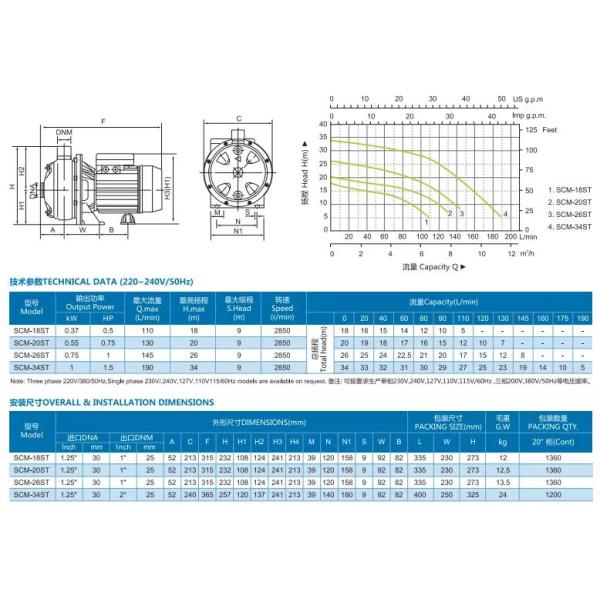

Self Priming Pump Technical data:

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH
HP / KW 1~220V (l/min) (m) (M) (mm)
SCM-26ST 1 / 0.75 5.2 2850 145 26 9 1.25"x1" 390x220x270

Other voltages and frequencies available on request


Self Priming Pump Applications

For a suitable liquid that is thin clean non–explosive non-aggressive not containing solid particles of fibers.
For water supply system and irrigation.
For heating, cooling air –conditioning, and circulation plants.
For civil industrial and firefighting application
As pressure boosting pump for a central water system with low pressure

Self Priming Pump Advantages:


100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty

Impeller 1HP Hydraulic Pump Electric Motor Centrifugal Submersible 2850RPM


Self Priming Pump Structural Characteristics:

Main Specification Standard Optional
Transmission medium Clean Water
Pump body Stainless Steel
Impeller Brass Noryl P.P.O.
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, S.K.F., or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with I.E.C.

Self Priming Pump guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

F.A.Q.:


1. Q: What's the M.O.Q.?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do O.E.M. for you.

4. Q: How can I get the pump?
A: Usually, we suggest we express for samples. If the volume reaches one m³, the Seaway will be better.

5. Q: What's the warranty period?
A: 1 year.
