Self Priming JET AUTOJET-60L 0.5HP 0.37KW Iron Cost Pump Body For Garden AUTOJET-60L
Automatic Water Pump Descriptions:
These pumps are suitable for handling clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.
Technical data:
Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. | |
HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | ||||
AUTOJET-60L | 0.5 / 0.37 | 3 | 2850 | 42 | 38 | 9 | 1"x1" | 480x210x220 | 15.3 | |
AUTOJET-80L | 0.75 / 0.55 | 3.6 | 2850 | 52 | 45 | 9 | 1"x1" | 480x210x220 | 15.7 | |
AUTOJET-100L | 1 / 0.75 | 4.8 | 2850 | 65 | 49 | 9 | 1"x1" | 480x210x220 | 16.9 |
Other voltages and frequencies available on request
applications:

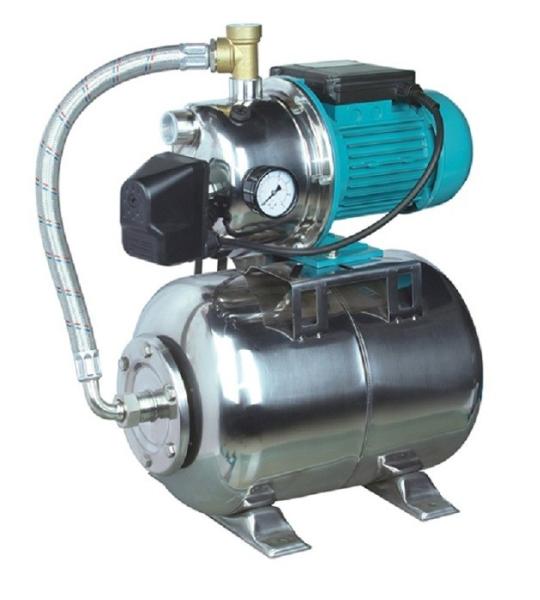

The automatic booster system consists of a JET water pump, airtight pressure switch, a pressure tank, a pressure gauge, and a connecting flexible pipe to make the pump automatic, It is more convenient to use. The pressure tank with a non-toxic rubber membrane, or called pressure vessel, has been pre-filled with an air pressure of about 0.12Mpa before leaving the factory.
These systems give suitable mains water pressure as required by modern domestic applications, and industrial applications, and will ensure enough water to supply all user outlets.
Almost all other pump models can be installed and become automatic booster systems, especially the centrifugal series water pumps.
Features:
100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty
Automatic Water Pump Structural Characteristics:
Main Specification | Standard | Optional |
Transmission medium | Clean Water | |
Pump body | Stainless steel | |
Impeller | Brass | Noryl PPO |
Motor housing | Aluminum | |
Stator&Rotor | 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | |
Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
Thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1). We are very glad that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
FAQ
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
