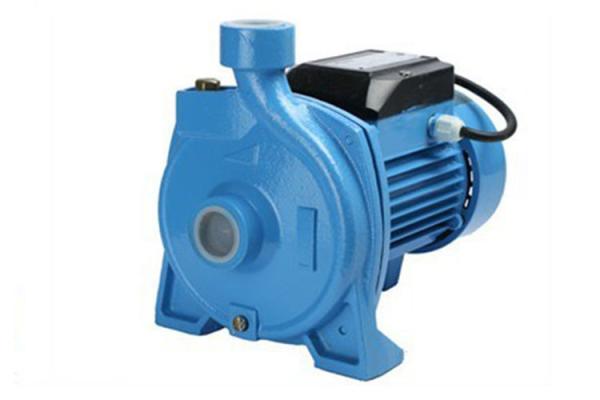

1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water
1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water
1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water
1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water
1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water
1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water
Specifications
Brand Name :
ZOZHI
Model Number :
CPM-180
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
30000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons or pallets
Output :
1.5HP / 1.1KW
Flow Max :
130 L/Min
Head Max :
42 M
Suction Max :
9M
Inlet/Outlet :
1"x1"
Speed :
2850RPM
Structure :
Single stage pump
Power :
Electric
Product Name :
Electric Motor Water Pump
Description


1.5Hp Centrifugal High-Pressure Electric Water Pump CPM Series For Farming Water

Electric Motor Water Pump Application:

CPM series single-step centrifugal pump is one hi-efficient household pump consisting of a microcomputer, centrifugal pump, and other special qualified mechanical seals. Its light, power-saving, convenient operation, and safe maintenance, reliable. It can be applied to supply water for households, gardens, hotels, Villas.

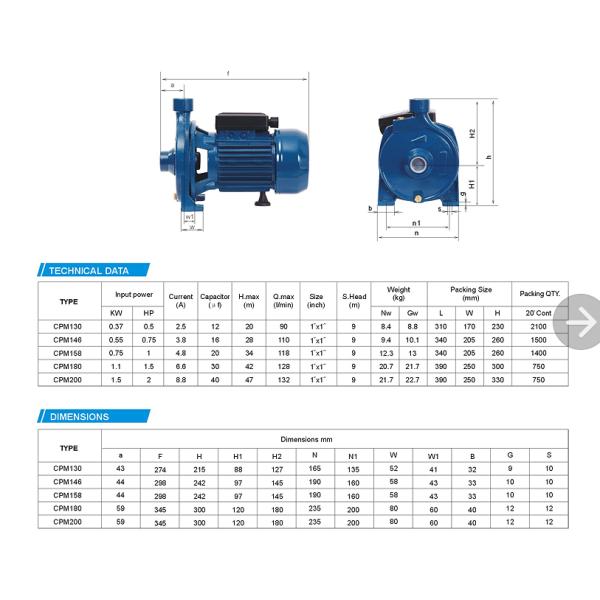

Technical Data:

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
CPM-180 1.5 / 1.1 6.2 2850 130 42 9 1"x1" 425x250x320 21


Advantages:


1). 100% high-quality copper,100% output


2). Old-rolled silicon steel sheet by a high-speed punching machine


3). Good quality bearing, the surface more smooth, the dimension more precise


4). Thermal protector


5). One year warranty


Structural Characteristics:

Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction Lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water

Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.

5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
