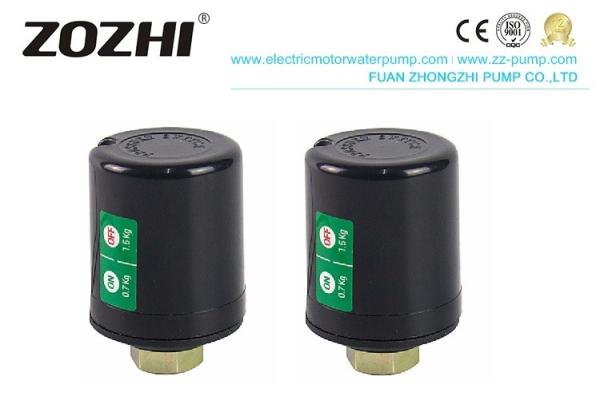

Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media
Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media
Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media
Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media
Specifications
Brand Name :
ZOZHI
Model Number :
ZPS-2A-2.0
Certification :
ISO
Place of Origin :
China
MOQ :
10pcs
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
Mechanical Pressure Switch
Application :
Water Pump
Color :
Black
Media :
Water
Pressure Range :
2.0-3.0kg
Thread Size :
Female 3/8"
Rated voltage: :
230V;110V
Frequency: :
50/60HZ
Max. Current: :
10A
Description

Female Thread Explosion Proof Hydraulic variable Mechanical Pressure Switch Plastic Base Water Media

Mechanical Pressure Switch
Pressure Switch Video

Hydraulic variable Mechanical Pressure Switch

1. Rated Voltage: 230V;110V;
2. Frequency:50/60Hz;
3. Application: water pump
ZPS-2 Technical Parameters
Rated Voltage
230V;110V
Frequency
50/60HZ
Rated Current
5A;10A
Min.cut-in
12PSI
Max.cut-out
45PSI
Pressure range
1.1-1.8bar (according to requirements of customers)
Bases
Zin alloy
Plastic
Contacts
Double
Single; Double
Screw type
Female
Male
Screw size
3/8"
1/4"

Mechanical pressure switch type
Pressure 0.8-1.5kg
Suitable for 100w booster pump
Pressure 1.1-1.8kg
Suitable for 120w/125w/150w booster pump
Pressure 1.3-2.3kg
Suitable for 250w/300w/370w booster pump
Pressure 2.0-3.0kg
Suitable for 550wbooster pump
Pressure 2.5-3.5kg
Suitable for 550w/750w booster pump
Pressure 3.0-4.0kg
Suitable for 750w booster pump


Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media

Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media

SILVER PLATING

CONTACT WITH LONG SERVICE

This product adopts a double silver plating contact structure. It improves service life and capacity.

Pressing down the copper part to separate the contacts then there are 4 contacts with white silver covers.

ZINC ALLOY BASE

POWDER PAINTING PROCESS

Zinc alloy base. Powder painting process features

High-temperature resistance, rust prevention, smooth and beautiful appearance, and insulation.

Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media

Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media

Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media
Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media
Female Thread Hydraulic Variable Mechanical Pressure Switch Plastic Base Water Media


Mechanical Pressure Switch

FEATURE:

According to the pressure changes in the pipe, it can open and close the pumps automatically.

APPLICATION:

It can be used universally in the pump. Control pump working.

The points of the Pressure adjustments:

1. Turn on the tap, the water pump or motor does not stop running, switch adjust the pressure bigger;

2. Shut off the tap, water pump not stop or frequency stop action, adjust the pressure smaller ;

3. Tuning adjustment, (semi-circle and a halftone ring) try to adjust to a suitable pressure position until the pump is working properly.


OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making, also we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
