Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals
Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals
Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals
Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals
Specifications
Brand Name :
ZOZHI
Model Number :
HJ92N
Certification :
CE, ISO9001
Place of Origin :
FUAN
MOQ :
10pcs
Price :
negotiated
Supply Ability :
3000000pcs per month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons
Size: :
Standard Size
Product name: :
Mechanical Seal
Feature :
Rubber Bellows Mechanical Seal
Speed: :
13m/sec
Model Number: :
GY HJ92N
Application: :
water pumps
Pressure: :
≤2.5Mpa
Material Type: :
SIC/ INSERTED TC
Working temp :
-40~150℃
Description

GY HJ92N 2.5Mpa Easy Spare Parts Burgmann Mechanical Seals Sic Inserted/TC For Clean Water Pump

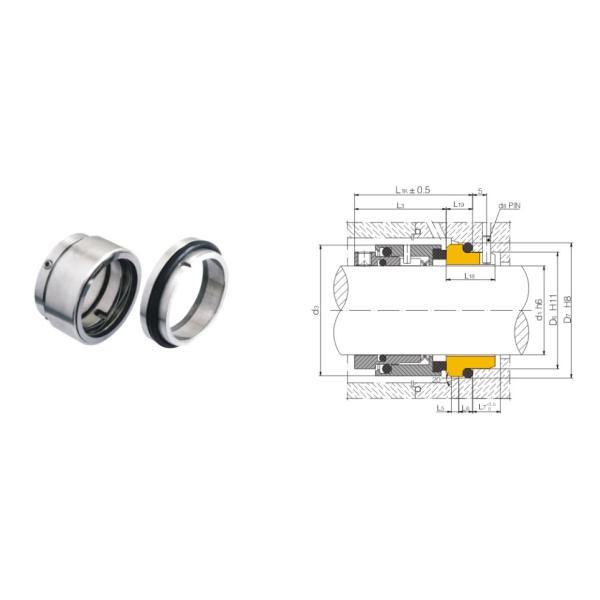

Mechanical Seal

Design Features

By adopting inner installation, inside current, single seal face, with Super-Sinus spring, any rotation direction, balanced structure, sparing no-touch to media, has a stronger anti-blocking condition.

Complies with the standard GB6556, ISO 3069, and DIN 24960.

Materials

Rotary Ring: Inserted carbon/ Inserted Sic/ Inerted TC
Stationary Ring: Sic/ Inserted TC
Secondary seal: NBR / EPDM / VITON
Spring and Other Parts: SUS304 / SUS316


Operating limits

Temperature: -40~150℃
Pressure: ≤ 2.5MPa
Speeds: ≤13 m/sec

Applications

Used in different pumps, mixers, and other rotating equipment, the products are widely used in various centrifugal pumps, chemical pumps, and various anticorrosive pumps.


Medium
Oil, water, and other weak corrosive fluid.

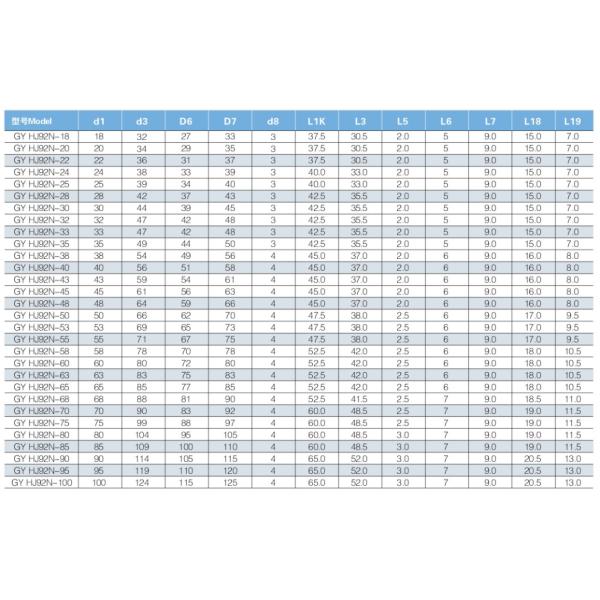

Size Information
Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals

Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals

More Products

Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals
Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals
Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals


Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals

Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals

Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals
Sic Inserted / TC Clean Water Pump Accesories GY HJ92N 2.5Mpa Burgmann Mechanical Seals
Mechanical Seal

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.

FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
