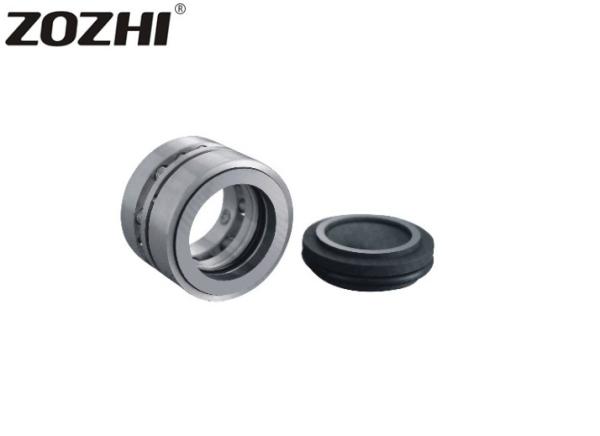

Eagle Burgmann Ac Generator Parts 0.8Mpa Mechanical Seal GB105 Silicon Carbide
Eagle Burgmann Ac Generator Parts 0.8Mpa Mechanical Seal GB105 Silicon Carbide
Eagle Burgmann Ac Generator Parts 0.8Mpa Mechanical Seal GB105 Silicon Carbide
Eagle Burgmann Ac Generator Parts 0.8Mpa Mechanical Seal GB105 Silicon Carbide
Specifications
Brand Name :
ZOZHI
Model Number :
GB105
Certification :
ISO9000 ,CE
Place of Origin :
FUAN
MOQ :
1pc
Price :
negotiated
Supply Ability :
3000000pcs per month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons
Size: :
Standard Size
Feature :
Rubber Bellows Mechanical Seal
Speed: :
≤13/sec
Model Number: :
GB105
Application: :
Water pump;Ruducer
Pressure: :
≤0.8Mpa
Material Type: :
Graphite+Silicon carbide
Working temp :
-40~200℃
Description

Eagle Burgmann Easy Spare Parts 0.8Mpa Mechanical Seal GB105 For Chemical Pumps

Design Features

By adopting inner installation, inside current, single seal face, multi-spring, any rotation direction, and non-balancing type structure. LComplies with the standard China JB/t 1472

Materials(to DIN24960)

- Rotary Ring: ( Sic / Inserted TC )
- Stationary Ring: ( Carbon / SIC / Inserted TC)
- Secondary Seal: ( NBR / EPDM/ VITON / PIFE)
- Spring and Other Parts: ( SUS304 /SUS316)

Operating limits

- Pressure: ≤ 0.8MPa
- Temperature: -40~200℃
- Speeds: ≤13m/sec

Applications

Used in different pumps, mixers, and other rotating equipment, the products are widely used in various centrifugal pumps, chemical pumps, and various anticorrosive pumps.

Medium

Oil, water, and other weak corrosive fluid

Size Information
Eagle Burgmann Ac Generator Parts 0.8Mpa Mechanical Seal GB105 Silicon Carbide

ModelD1D3D4D6D7D8D0LL3L4L5L6L7L8
GB105-3535576045553405238142.06.5819
GB105-4040626550603455238142.06.5819
GB105-4545677055653505339142.06.5819
GB105-5050757560703555339142.56.5819
GB105-5555778065753605339142.56.5819
GB105-6060828570803655339142.56.5819
GB105-6565919580903736144172.56.5819
GB105-70709610085973786344192.57.5922
GB105-7575101105901023836344192.57.5925
GB105-8080106110951073886344193.07.5925
GB105-85851111151001123936546193.07.5925
GB105-90901161201051173986546193.07.5925
GB105-959512112511012231036546193.07.5925
GB105-10010012613011512731086546193.07.5925
GB105-11011014014513014231207251213.08.0927
GB105-12012015015514015231307251213.08.0927


Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.

FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
