Farm Clean Water Self Priming Water Transfer Pump 0.25HP/0.18KW 220V 50HZ
Farm Clean Water Self Priming Water Transfer Pump 0.25HP/0.18KW 220V 50HZ
Specifications
Brand Name :
ZOZHI
Model Number :
PS-126
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
30000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons , overall size:310x230x290mm/pc, N.W.: 9kgs
Product Name :
Self Priming Pump
Application :
pumping
Output :
0.25HP / 0.18KW
Flow Max :
36 L/Min
Head Max :
33M
Suction Max :
9M
Inlet/Outlet :
1"x1"
Speed :
2850RPM
Description

Farm Clean Water Self Priming Water Transfer Pump 0.25HP/0.18KW 220V 50HZ

Self Priming Pump APPLICATIONS

Self-priming pump specially designed structure make it better appearance and performance.

Widely used in domestic applications, distributing water, farm, gardens, clean car...etc.

STRUCTURAL CHARACTERISTICS

Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC

TECHNICAL DATA

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)

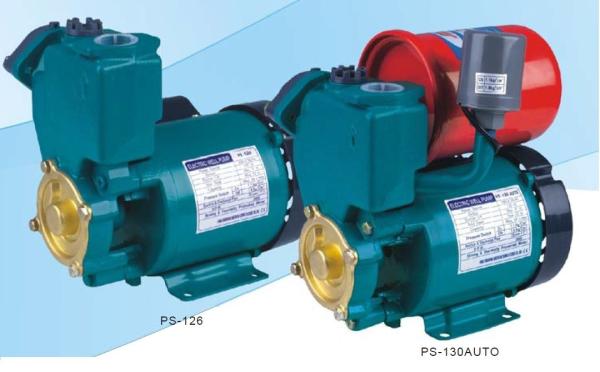

PS-126 0.25 / 0.18 1.48 2850 36 33 9 1"x1" 310x230x290 9
AUTOPS-130 0.25 / 0.18 1.48 2850 36 33 9 1"x1" 310x230x290 9

Other voltages and frequencies available on request

Farm Clean Water Self Priming Water Transfer Pump 0.25HP/0.18KW 220V 50HZ

Self Priming Pump

ADVANTAGE

100% a high-quality copper,100% output

Cold-rolled silicon steel sheet by a high-speed punching machine

Good quality bearing, the surface more smooth, the dimension more precise

Thermal protector

One year warranty

GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
