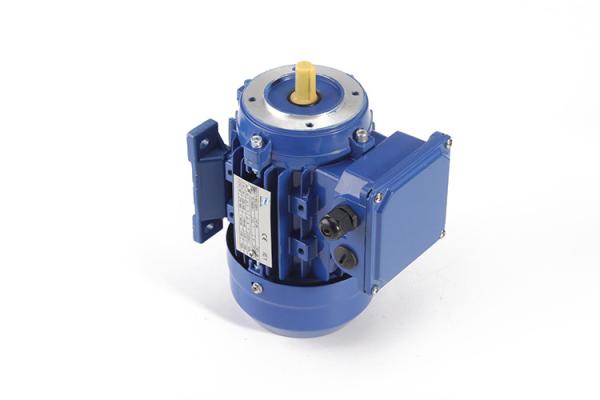

AC Electric 3 Phase Induction Motor FUJIAN MINDONG Motor 400V 50HZ Stainless Shaft
AC Electric 3 Phase Induction Motor FUJIAN MINDONG Motor 400V 50HZ Stainless Shaft
AC Electric 3 Phase Induction Motor FUJIAN MINDONG Motor 400V 50HZ Stainless Shaft
AC Electric 3 Phase Induction Motor FUJIAN MINDONG Motor 400V 50HZ Stainless Shaft
Specifications
Brand Name :
ZOZHI
Model Number :
MS100L-2
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Service factor :
1.0
Rated Power :
3KW 4HP
Mounting :
Foot-mounted
Temperature rise :
80 K
Insulation Class :
B / F / H
Product Name :
3 Phase Induction Motor
Asynchronous speed :
1500RPM
Description

3 Phase AC Electric Motor FUJIAN MINDING Motor 400V 50HZ Stainless Shaft

3 Phase Induction Motor SPECIFICATIONS

1. Certification: ISO9001, CCC, Ce, IEC

2. Speed: 1000/1500/3000

3. Transport Package: Carton/Plywood Case

4. Mounting: B3; B5; B35; B14; B34 ;

5. Terminal Block: BMC

6. Method of Cooling: IC411 / Shaft mounted fan

7. Three-phase motor voltage 380v 50hz


FEATURE

1. Frame and housing are aluminum.

2. Vacuum varnishing

3. Powder Painting

4. Direct On Line Starting Method


3 Phase Induction Motor ADVANTAGE

1. Specialized in Manufacturing and Supplying a wide range of Electric Motors since 2006.

​2. Outstanding Finishing Surface.

3. Delivery Time about 15-20 days for Normal Models.

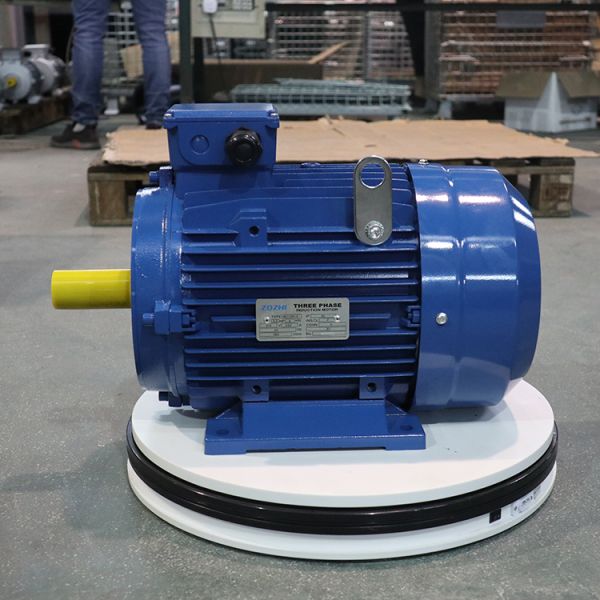

AC Electric 3 Phase Induction Motor FUJIAN MINDONG Motor 400V 50HZ Stainless Shaft

PERFORMANCE CHART

Model Power

(V)

 (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5

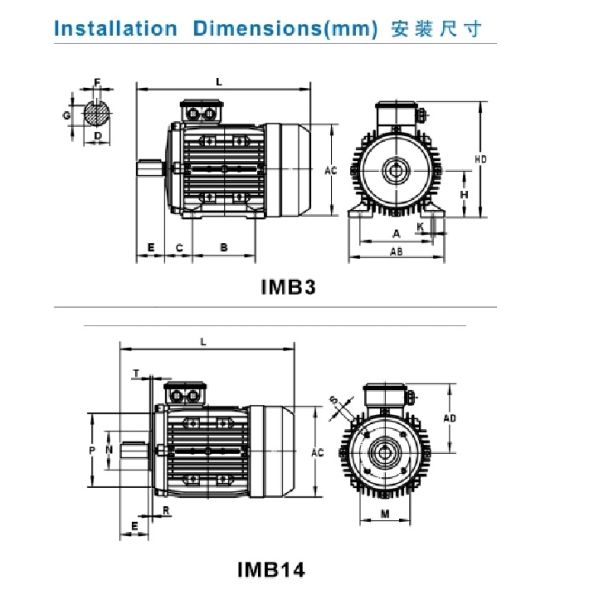

INSTALLATION SIZE

Frame No. Installation Size Installation Size For B14 Installation Size For B5 Overall Dimension
A B C D E F G H K M N P S T M N P S T AB AC AD HD L
56 90 71 36 9 20 3 7.2 56 6 65 50 80 M5 2 100 80 120 8.5 3 112 108 93 149 192
63 100 80 40 11 23 4 8.5 63 7 75 60 90 M5 2.5 115 95 140 10 3 120 120 97 160 211
71 112 90 45 14 30 5 11 71 7 85 70 105 M6 2.5 130 110 160 10 3.5 135 140 104 175 240
80 125 100 50 19 40 6 15.5 80 10 100 80 120 M6 3 165 130 200 12 3.5 155 160 113 193 284
90S 140 100 56 24 50 8 20 90 10 115 95 140 M8 3 165 130 200 12 3.5 175 175 123 213 316
90L 140 125 56 24 50 8 20 90 10 115 95 140 M8 3 165 130 200 12 3.5 175 175 123 213 341
100L 160 140 63 28 60 8 24 100 12 130 110 160 M8 3.5 215 180 250 15 4 200 195 157 257 377
112M 190 140 70 28 60 8 24 112 12 130 110 160 M8 3.5 215 180 250 15 4 226 220 163 275 392
132S 216 140 89 38 80 10 33 132 12 165 130 200 M10 3.5 265 230 300 15 4 265 265 163 315 463
132M 216 178 89 38 80 10 33 132 12 165 130 200 M10 3.5 265 230 300 15 4 265 265 183 315 501
160M 254 210 108 42 110 12 37 160 15 215 180 250 M12 4 300 250 350 19 5 310 320 223 383 606
160L 254 254 108 42 110 12 37 160 15 215 180 250 M12 4 300 250 350 19 5 310 320 223 383 650

FLANGE SIZE

AC Electric 3 Phase Induction Motor FUJIAN MINDONG Motor 400V 50HZ Stainless Shaft

3 Phase Induction Motor GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

OUR SERVICE


1. Directly factory sale.


2. Quick response to 2-8hours, response rates over 92%.


3. 24 hours phone call is available. Feel free to contact us.


4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
