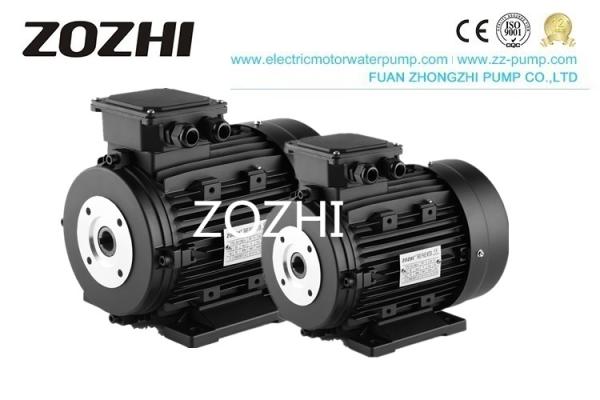

Hydraulic Motor Hollow Shaft Motor 4 Pole 112M2-4 5.5KW 7.5HP Aluminum Housing

Hollow Shaft Motor

Hollow Shaft Electric Motor Description

Hydraulic Electric Motors are a combination of an exceptional degree of technology and innovation, quality and reliability worthy of a leading brand on the market. This Hollow Shaft Electric Motor easily mounts to plunger pumps with a 24mm solid shaft & 1,750 RPM - no coupling needed!

The hollow shaft series motors comply with the relevant regulations of the International Electrotechnical Commission (I.E.C.) and use high-quality raw materials for the latest overall design. The hollow shaft motor casing is made of aluminum, hollow metal tube design, 100% copper coil, C&U bearing, high-precision rotor, shaft extension through high-frequency quenching treatment, significantly improving mechanical strength, rigorous transfer technology, maintaining the standard motor all technical and maintenance advantages are following I.E.C. standards.

Advantage:

1. High-quality materials, low power loss, low current, low-temperature rise, good heat dissipation, high efficiency, and energy-saving.
2, high-quality bearings, rigorous assembly process, low operating noise.
3. Tailored for professional equipment, the shaft extension is processed by high-frequency quenching, which significantly improves the mechanical strength and seamlessly connects with professional equipment to realize worry-free operation.

Frame

A three-phase hollow shaft motor is supplied in a robust, rugged aluminum frame with integral feet. On Request, we can provide an engine in the aluminum body up to 160L frame.

Ratings

all hollow shaft motor standard three-phase motors are continuous rated to comply with performance standards

Voltage and Frequency

three-phase hollow shaft motor supply volts400 ±5% 3 phase 60Hz ±3% we are also capable of manufacturing three-phase motor in different volts and frequency like220,380,460

Protection

IP-44 protection also cand be supplied with IP-54 and IP-55 on Request

Insulation

Hollow shaft motors supply with class B&F insulation as a standard feature. Also, supply H class insulation according to the Request of the customer.

Terminal Box

all three-phase motor supply with a terminal box on top position for Foot mounted. Other position boxes like left or right supply on customer request.

Shaft

Hollow shaft motor shaft made from high carbon steel pipe to provide exceptional strength&rigidity to minimize deflection. we can also supply the motor with stainless steel hollow shaft

Rotor

All hollow shaft motor rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Thus, it makes low motor amplitudes of vibration & noise.

Bearing&Lubrication:

hollow shaft motor bearings are adequately lubricated with lithium-based high temp up to 150 deg. all the motors are supplied with a C3 ball bearing & fully charged with lithium base grease at the time of assembly

Enclosure

Hollow shaft motor supply with enclosure T.E.F.C. (totally Enclosed Fan Cooling)

Thermal overload protection

we can also supply motor on demand of the customer. it can provide extra motor safety from overlord protection

Earthing terminals:

three-phase hollow shaft motor provided with a minimum of two earthing terminals. one in the terminal box and the other on Foot

Paints

All hollow shaft motor is painted with semi-glossy synthetic enamel paint. however, sp. paint is available on Request

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on Request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on Request

Hollow Shaft Electric Motor Application

Hollow shaft motors are widely used in cleaning car washers, high-pressure pumps, and clean machines.

Production line

Production data

Hollow Shaft Motor

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your Request and sample making. Also, we can advise how to make the products according to customers' target prices.

F.A.Q.:

1. Q: What's the M.O.Q.?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do O.E.M. for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
