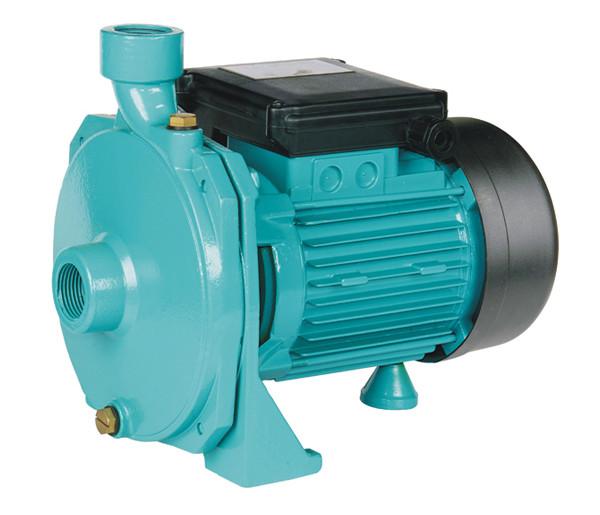

Cast Iron Body Centrifugal Agricultural Water Pump For Farm Irrigate 0.5HP 0.37KW 0.75KW
Centrifugal Water Pump Description:
SCM series Centrifugal Pumps are suitable for use in civil and agricultural applications, such as farm irrigate. The high efficiency and continuous duty capabilities make these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers, and wells, or for any number of different industrial applications with high flow rates and mid to low head are required. The pump should be installed in an enclosed environment or at least sheltered from inclement weather.
Centrifugal Water Pump Technical Data:
Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
SCM-22 | 0.5 / 0.37 | 3 | 2850 | 75 | 20 | 9 | 1"x1" | 310x165x225 | 8.8 |
Other voltages and frequencies available on request
.
Application:
1. water supply system
2. booster
3. garden and farm irrigation
4. lowering the underground water level
5. various industrial applications
Centrifugal Water Pump Advantages:
1. 100% high-quality copper,100% output
2. Cold-rolled silicon steel sheet by a high-speed punching machine
3. Good quality bearing, the surface more smooth, the dimension more precise
4. Thermal protector
5. One year warranty
Structural Characteristics:
Main Specification | Standard | Optional |
Transmission medium | Clean Water | |
Pump body | Cast Iron | |
Impeller | Brass | Noryl PPO |
Motor housing | Aluminum | |
Stator&Rotor | 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | |
Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
Thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |

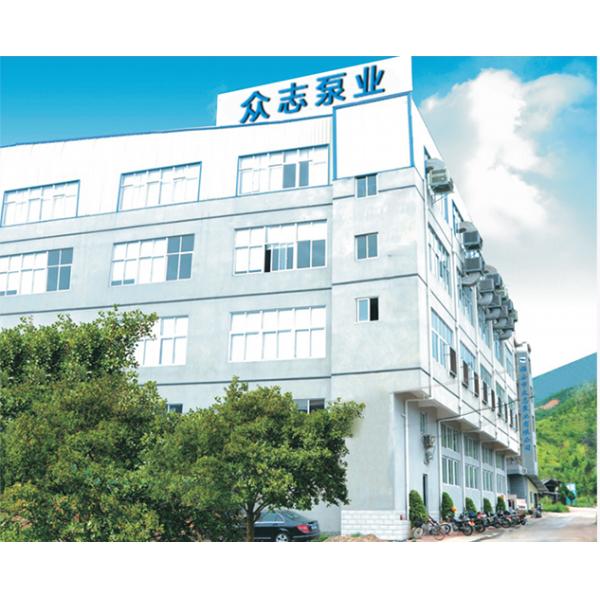

Factory Picture:
Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our Service:
FAQ:
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
