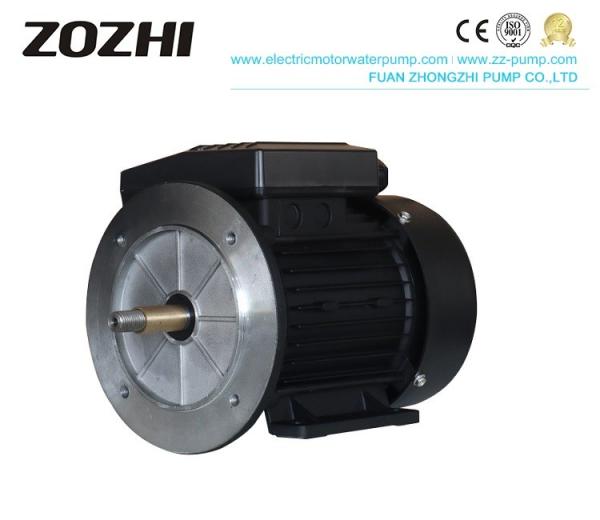

MYT802-2 Single Phase Induction Electric Motor For Swimming Pool Pump Motor

MYT series single-phase induction motors are defined as fully enclosed, fan-cooled, squirrel-cage, novel design, beautiful appearance, compact structure, low noise, high efficiency, ample torque, good starting performance, and easy to use. The use of electric motors following international practice, F-class insulation, and the design of insulation system evaluation methods are widely used in swimming pool pumps.

• Motor model: MYT802-2
• Power: 2HP/1.5KW
• Voltage(V) : 220V /50HZ
• Protection: IP44/IP54/IP55
• Insulation Class: B/F/H
• Ambient temperature: -15℃≦0≦40℃

High-quality Capacitor

Adopt good capacitor made by advanced production line, heat resistant to 85℃; the working lift is motor than 10000 hours.

Cold-rolled Stator

Good quality cold-colled silicon from WUGANG brand made by high-speed punching machine, less burr, high concentricity, and stability.

Coil with 100% Copper wire

100% copper wire, with thermal protector, make the pump stop working automatically at the condition of jam or overload, etc.

No leakage Of winding

100% coil testing to make sure each coil is energized, and no leakage at high voltage condition

Pool Pump Motor General data

Pool Pump Motor Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

INFORMATION

Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
