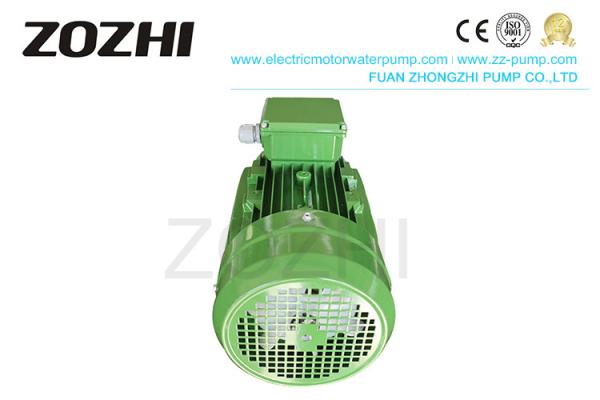

MS90S-2 1.5KW 2HP IE2 High Efficiency Induction Motor 100% Copper Wire Winding Material
MS90S-2 1.5KW 2HP IE2 High Efficiency Induction Motor 100% Copper Wire Winding Material
Specifications
Brand Name :
ZOZHI
Model Number :
IE2 High Efficiency Motor
Certification :
CE,ISO
Place of Origin :
FUAN CHINA
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Name :
IE2 Motor
Output :
1.5KW
Voltage :
230/400v 60hz Low voltage
Winding Material :
100% Copper Wire
Standard :
IEC 2
Housing :
Aluminum
Pole :
2
Phase :
3 Phase
Description

IE2 MS90S-2 1.5KW 2HP IE2 High-Efficiency Motor, induction motor efficiency ie2

IE2 High-Efficiency motors Aluminum-Housing Three Phase Asynchronous Electric Induction Motor, IE2 three-phase asynchronous motors are developed from IE2 series three-phase asynchronous motors, use aluminum-alloy material has been introduced into its housing, end shield,...

Model NO.: IE2 MS90S-2
Operating Speed: Low Speed
Species: IE2 Three-Phase
Casing Protection: Closed Type
Starting Mode: Direct online Starting
Brand: ZOZHI
Voltage:230/400V
Protection Class: IP55/IP54
Transport Package: Carton
Origin: Ningde, China
Application: Industrial, Universal, Household Appliances, Power Tools
Number of Stators: Three-Phase
Rotor Structure: Squirrel-Cage
Number of Poles: 2
Certification: ISO9001,CE
Rated Power: 1.5KW
Frequency: 60Hz
Mounting Position: B5/B14
Insulation Grade: F
Continuous Working Duty: S1
Trademark: OEM (available)
Specification: IEC 60034-30: 2008
HS Code: 8501


IE2 Motor PERFORMANCE CHART:

MS90S-2 1.5KW 2HP IE2 High Efficiency Induction Motor 100% Copper Wire Winding Material

MS90S-2 1.5KW 2HP IE2 High Efficiency Induction Motor 100% Copper Wire Winding Material

MS90S-2 1.5KW 2HP IE2 High Efficiency Induction Motor 100% Copper Wire Winding Material

MS90S-2 1.5KW 2HP IE2 High Efficiency Induction Motor 100% Copper Wire Winding Material

IE2 Motor GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

IE2 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
