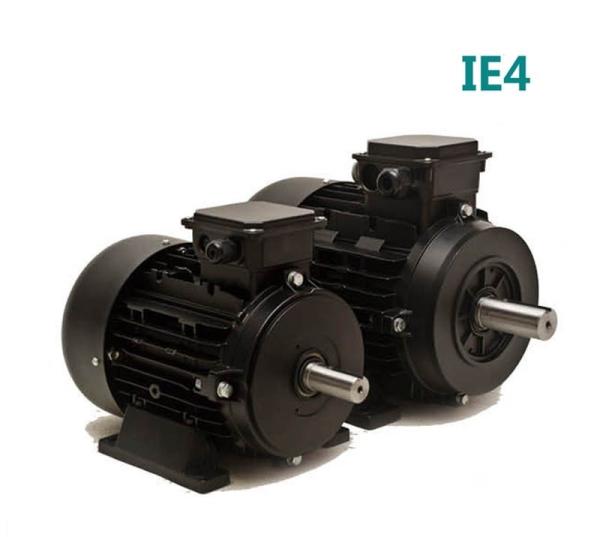

Y connect 1500rmp 3000rmp IE2 Motor 3 Phase IEC4 Standard Induction Motor 380v
Y connect 1500rmp 3000rmp IE2 Motor 3 Phase IEC4 Standard Induction Motor 380v
Specifications
Brand Name :
ZOZHI
Model Number :
AW112M3-4
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden cases
Product Name :
IE2 Motor
Application :
Driving
Power :
7.5KW
Pole :
4
Phase :
3 Phase
Insulation Classtion Class :
B
Voltage :
380v
Type :
Asynchronous Motor
Description

Y connect 1500rmp 3000rmp 3 phase IEC4 Standard Induction Motor.

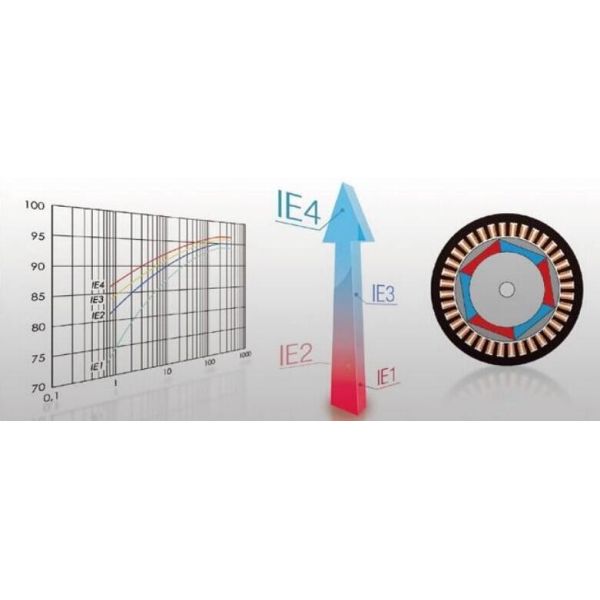

IE standard:

It designs a novel structure and torque than the significant volumes; the volume is the same as power Y series motor shink up to 30%, Power factor than Y series motor hint of up to 15%. An engine is a quiet and high overload at low-temperature characteristics etc.

Y connect 1500rmp 3000rmp IE2 Motor 3 Phase IEC4 Standard Induction Motor 380v

A parameter of 3 phase ac induction motor, a motor :

Model Seat No.

Rated Power

/KW

 Raed Speed /RPM

Rated torque

/NM

Rated frequency

/Hz

Rated current

/A

 Energy efficiency
PM-Y2-6314 63 0.2 3000 0.635 100 0.6 ...
PM-Y2-6324 63 0.4 3000 1.27 100 1.2 ...
PM-Y2-6324 71 0.75 3000 2.4 100 1.7 88.6
PM-Y2-7214 71 1.1 3000 3.5 100 2.45 89.8
PM-AW90SI-4 90 1.5 3000 4.8 100 3.3 90.9
PM-AW90S2-4 90 2.2 3000 7 100 4.7 91.8
PM-AW90S3-4 90 3 3000 9.55 100 6.4 92.6
PM-AW112M1-4 112 4 3000 12.8 100 8.6 93.3
PM-AW112M2-4 112 5.5 3000 17.5 100 11.6 94
PM-AW112M3-4 112 7.5 3000 24 100 16 94.5
PM-AW132S1-4 132 11 3000 35 100 22 95
PM-AW132S2-4 132 15 3000 47.75 100 30.9
PM-AW160M1-4 160 18.5 3000 59 100 37.8 95.6
PM-AW160M2-4 160 22 3000 70 100 45 95.9
PM-AW160M3-4 160 30 3000 95.5 100 61 96.1
PM-Y2-6334 63 0.2 1500 1.27 50 0.6 ...
PM-Y2-6344 63 0.4 1500 2.54 50 1.2 ...
PM-Y2-7134 71 0.75 1500 4.8 50 1.7 85.6
PM-Y2-7144 71 1.1 1500 7 50 2.45 87.4
PM-AW90L1-4 90 1.5 1500 9.6 50 3.3 88.1
PM-AW90L2-4 90 2.2 1500 14 50 4.7 89.7
PM-AW90L3-4 90 3 1500 19.1 50 6.4 90.3
PM-AW112M4-4 112 4 1500 25.5 50 8.6 90.9
PM-AW112M5-4 112 5.5 1500 35 50 11.6 92.1
PM-AW112M6-4 112 7.5 1500 47.8 50 16 92.6
PM-AW132M1-4 132 11 1500 70 50 22 93.6
PM-AW132M2-4 132 15 1500 95.5 50 30.9 94
PM-AW160L1-4 160 18.5 1500 117.8 50 37.8 94.3
PM-AW160L2-4 160 22 1500 140 50 45 94.7
PM-AW160L3-4 160 30 1500 191 50 61 95

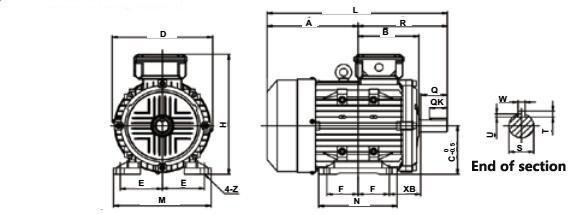

IMB3 Installation Struction Diagram and Size of 3 phase ac induction motor, ac motor:

Y connect 1500rmp 3000rmp IE2 Motor 3 Phase IEC4 Standard Induction Motor 380v

Seat No. Installation Dimensions Dimension
E F XB S Q U T W C Z L D H M
63 50 40 40 11 23 3 5 4 63 7 230 130 180 135
71 56 45 45 14 30 3 5 5 71 7 255 145 195 150
90S 70 50 56 24 50 4 7 8 90 10 320 195 250 180
90L 70 62.5 56 24 50 4 7 8 90 10 345 195 250 180
112 95 70 70 28 60 4 7 8 112 12 404 240 300 230
132S 108 70 89 38 80 5 8 10 132 12 470 275 345 270
132M 108 89 89 38 80 5 8 10 132 12 510 275 345 270
160M 127 105 108 42 110 5 8 12 160 15 615 330 420 330
160L 127 127 108 42 110 5 8 12 160 15 670 330 420 330


IMB5 Installation Struction Diagram and Size of 3 phases:

Seat No. Install size ( mm) Dimension (mm)
LA LB LC LE LZ S LR U T W L D KL
63 115 95 140 3.5 10 11 23 3 5 4 230 130 70
71 130 110 160 3.5 10 14 30 3 5 5 255 145 112
90S 165 130 200 3.5 12 24 50 4 7 8 320 195 155
90L 165 130 200 3.5 12 24 50 4 7 8 345 195 155
112 215 180 250 4 15 28 60 4 7 8 404 240 190
132S 265 230 300 4 15 38 80 5 8 10 470 275 210
132M 265 230 300 4 15 38 80 5 8 10 510 275 210
160M 300 250 5 18 42 110 5 8 8 12 615 330 255
160L 300 250 350 5 18 42 110 5 8 12 670 330 255

IE2 Motor GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

IE2 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
