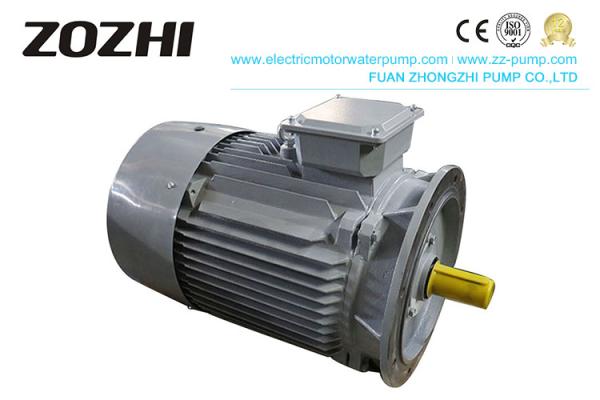

IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V
IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V
Specifications
Brand Name :
ZOZHI
Model Number :
IE3-90S-2
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
IE3 Motor
Body Material :
Cast Iron
Output :
1.5kw
Pole :
2
Protection class :
IP54
frequency :
60Hz
Rated Voltage :
400V
Insulation Class :
B
Efficiency Class :
IE3
Output Speed :
2890
Description

IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors, Asynchronous Electric Motor 400V

IE3 premium efficiency motors have a particular fan, and wind path design makes their low vibration and low noise. The end shield with the radiating rib makes the appearance good-looking and improves the heat dissipation. The top terminal box can rotate all round and left or right side-mounted to meet the different requirements of our customers.

IE3 motor is the design of improving the efficiency is in line with the requirements of energy-saving put forward by the state for the industry of production and manufacturing.

Ambient temperature: -15 °C ≤ θ ≤ 40 °C
Above sea level: not exceed 1000m
Rated Voltage: 400V, 220~760V is available
Rated Frequency: 50HZ or 60HZ
Insulation Class: Class B/F/H
Protection Class: IP54/55/56
Duty: S1

Model Output KW Voltage Current Speed Eff Power LRT/RLT LRA/RLA BDT/RT
(V) (A) (r/min) (%) Factor
IE3-90S-2 1.5 400 3.06 2890 82.7 0.84 2.2 7.6 2.3


Performance Chart:

IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V

IE3-90S-2 1.5KW Ie3 Premium Efficiency Motors , Asynchronous Electric Motor 400V

Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110 94.3 95.2
132 94.6 95.4
160 94.8 95.8
200...375 95 95.8

IE3 Motor Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

IE3 Motor Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
