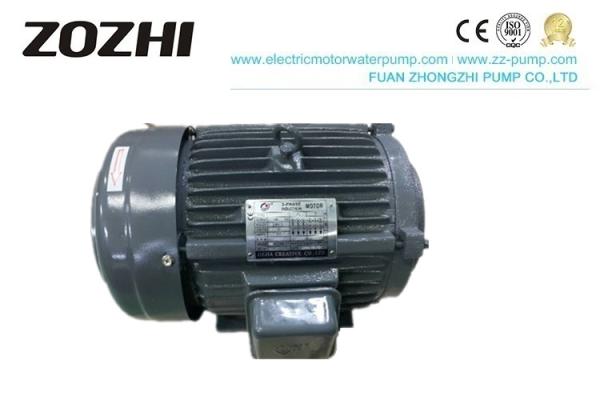

Three Phase Inner Shaft Oil Pump Motor Hollow Shaft Motor For Hydraulic Pressure System

Hollow Shaft Motor

Description

Three-phase squirrel-cage induction motor 380V /60HZ Inner Shaft Oil Pump Motor

Drive mode of high-pressure motor: oil-hydraulic straight-coupled shaft center single key coupling drive, shaft-type coupling, or pulley drive

Hydraulic motor steering: forward and reverse Hydraulic motor test method: using full pressure start test Hydraulic motor temperature rise: stator winding temperature rise: resistance method below 75 ℃

Motor power: voltage fluctuation rate: within ± 10%,

Frequency change rate: within ± 5%

Operating environment of hydraulic motor: general indoor environment, ambient temperature -10 ℃ -40 ℃,
Humidity: RH90% or less

The corresponding pumps can be directly matched without a coupling, thereby reducing installation space and convenient assembly. The mating surface of the motor has high machining accuracy, and it is coaxial with the pump. As a result, it does not require professional installation, and it runs smoothly, with low noise and low heat generation.

Advantage

It is applied to various hydraulic systems such as injection molding, stretching, press, and CNC machine tools.

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
