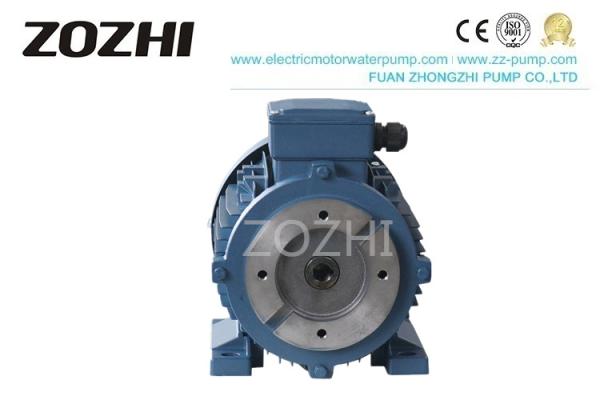

IP54 IP55 Inner Shaft Hydraulic Motor 2HP 3HP 5.5HP 7.5HP For Die Casting Machinery

Hollow Shaft Motor

Description

Single-phase/ three-phase squirrel cage induction motor with in-line shaft design. Directly matched with the corresponding pump, it can be closely matched with the oil pump without the need for a pump sleeve coupling.

The mating surface of the motor and the pump is processed with high precision, and it is coaxial with the pump. As a result, it requires no professional installation, stable operation, low noise, and low heat.

The hydraulic series is complete and can be matched with the hydraulic pumps of all manufacturers on the market, and particular specifications can be customized according to customer needs.

Compact
Motor technology is exquisite, compact structure, beautiful appearance, design.

safer
The oil pump and the motor are equipped with an oil drain groove to prevent the oil from immersing in the engine, ensuring the safety of the motor and easier disassembly.

Low noise
Hydraulic motors have stricter quality requirements, low noise, low temperature rise, and higher efficiency.

efficient
Adopt reasonable measures, number of rotor slots, fan parameters, and forward windings to reduce losses and improve efficiency by 2% -8%

Smoother operation
Couplings, pump brackets, typical floor, and other components are reduced, the quarter length is shortened, the operation is smoother, noise is lower, and oil pump replacement is more convenient.

Hollow Shaft Motor

Application

Note

1. Be sure to correct concentricity during installation, allow 0.1mm deviation

Put the motor in the axial direction, but the flat key of the oil pump and apply a little butter, and slowly insert it into the motor. Could you pay attention to it?

2. Avoid dust and foreign matter during installation

After fully inserting the oil pump, the few screws that are locked should not be too tight, which is almost enough. Lock the screwdriver and turn it from the motor blades to see if it is smooth. If it is too close, adjust the screws of the oil pump. Too close will make noise

3. After installation, determine the direction of rotation of the motor and correct the concentricity again

Data
