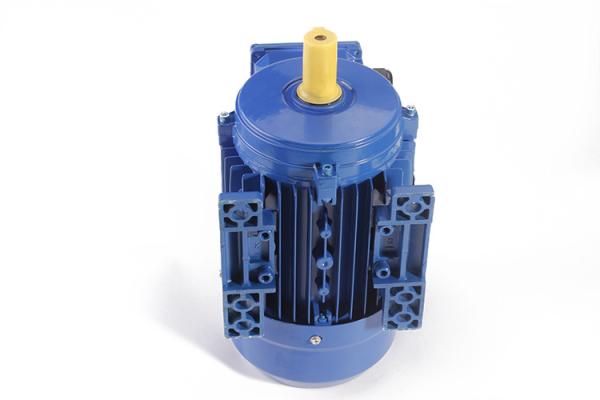

8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine
8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine
Specifications
Brand Name :
ZOZHI
Model Number :
MS160L-8
Certification :
ISO
Place of Origin :
China
MOQ :
10PCS
Price :
negotiated
Payment Terms :
T/T, L/C, Western Union, E-checking
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Output :
7.5KW/10HP
Pole :
8
Motor Bearing: :
C&U (SKF for Choice)
Efficiency: :
IE1,IE2,IE3
Motor Housing: :
Aluminum
Protection class: :
IP54/IP55
Insulation Class: :
F class
Color :
customizable
Product Name :
3 Phase Induction Motor
Description

Electric 8 Poles 3 Phase Induction Motor 10 H.P. For Clean Machine

3 Induction Motor Description

Three-phase MS(IE1) series Aluminium housing motors are acknowledged that having good fame for quality and reliability. They are suitable for driving machines that do not have special requirements, such as machine tools, pumps, blowers, etc.


Advantage

1. Superior finish

2. Externally Ventilated

3. Lightweight construction

4. Top-mounted terminal box

5. IP55 Protection

6. Interchangeable foot mounting and flange mounting

Technical data

Model Power (V) (A) P.F. Eff.(%) Speed Tstart/Tn Tmax/Tn Ist/In(A)
kW HP (r/min)
MS160L-8 7.5 10 380/660 17.7/10.1 0.75 85.5 720 2 2 6

8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine

8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine

8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine 8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine 8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine
8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine 8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine 8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine
8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine 8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine 8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine

8 Poles Electric 3 Phase Induction Motor Aluminum 10 HP For Clean Machine

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
