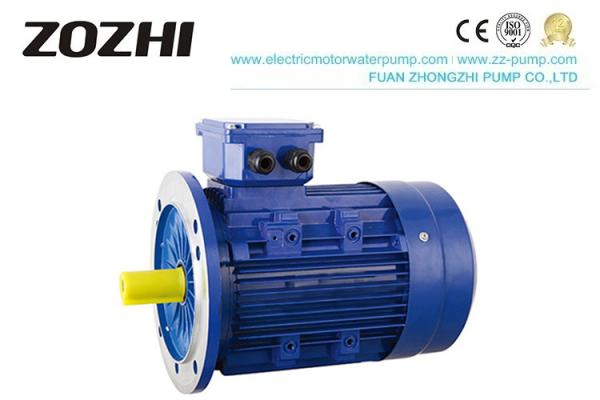

MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm
MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm
MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm
MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm
Specifications
Brand Name :
ZOZHI
Model Number :
IE2 MS90S-4
Certification :
CCC, CE
Place of Origin :
FUAN CHINA
MOQ :
10pcs
Price :
negotiated
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Type :
Asynchronous Motor
Phase :
Three phase
Voltage :
380V
Frequency :
50HZ 60HZ
Protect Feature :
Waterproof
Efficiency :
IE2
Poles :
2/4/6/8 Poles
Housing :
Aluminium
Cooling method :
ICO141
Duty :
S1(continuous)
Warranty :
1 year
Product Name :
Electric Motor Water Pump
Description

MS 3.7 KW 5 HP Three Phase Electric Motor 1400 Rpm

Product Description

Our products are high in demand due to their premium quality and affordable prices. Furthermore, we ensure to timely deliver of these products to our clients, and through this, we have gained a huge clients base in the market.
Features:
  • High efficiency, fulfilling all international and national efficiency regulations.
  • Multi Mount options are available as the mounting type of the motor.
  • The motor complies with international and national quality standards/systems.

Benefits:
  • Less heating of the motor means that you can run these motors for long periods at a time.
  • The longevity of the motor is generally higher than regular motors.
  • The best performance and widespread coverage across different industries.

Production Line
MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm



Technical Data

Model Power (V) (A) (r/min) Eff. (%) P.F. Ist/In Tmax/Tn
Kw HP 50% 75% 100%
IE2 MS801-2 0.75 1 230/400 3.0/1.73 2800 76.5 77.3 77.4 0.813 2.2 2.3
IE2 MS802-2 1.1 1.5 4.2/2.43 2800 79 80 79.6 0.825 2.2 2.3
IE2 MS90S-2 1.5 2 5.53/3.19 2820 80.2 81.5 81.3 0.837 2.2 2.3
IE2 MS90L-2 2.2 3 7.93/4.58 2820 82.2 83.5 83.2 0.837 2.2 2.3
IE2 MS100L-2 3 4 10.5/6.06 2830 84 85.1 84.6 0.848 2.2 2.3
IE2 MS112M-2 4 5.5 400/690 7.97/4.6 2850 85.4 86.8 85.8 0.848 2.2 2.3
IE2 MS132S1-2 5.5 7.5 10.65/6.15 2870 86.7 87.3 87 0.86 2 2.3
IE2 MS132S2-2 7.5 10 14.35/8.28 2870 87.6 88.3 88.1 0.86 2 2.3
IE2 MS160M1-2 11 15 20.74/11.97 2900 89 89.8 89.4 0.86 2 2.3
IE2 MS160M2-2 15 20 27.99/16.16 2900 90 90.5 90.3 0.86 2 2.3
IE2 MS160L-2 18.5 25 33.83/19.53 2900 90.3 91 90.9 0.872 2 2.2
IE2 MS802-4 0.75 1 230/400 3.28/1.9 1380 77.3 79.8 79.6 0.72 2.3 2.3
IE2 MS90S-4 1.1 1.5 4.57/2.64 1400 79.9 81.7 81.4 0.743 2.3 2.3
IE2 MS90L-4 1.5 2 6.02/3.48 1400 82.1 83.5 82.8 0.755 2.3 2.3
IE2 MS100L1-4 2.2 3 8.42/4.86 1420 82.6 84.5 84.3 0.778 2.2 2.3
IE2 MS100L2-4 3 4 11.32/6.54 1420 84.2 85.7 85.5 0.778 2.2 2.3
IE2 MS112M-4 4 5.5 400/690 8.47/4.89 1430 85.8 87 86.6 0.79 2.2 2.3
IE2 MS132S-4 5.5 7.5 11.18/6.45 1450 87.4 88.3 87.7 0.813 2.2 2.3
IE2 MS132M-4 7.5 10 14.85/8.58 1450 88.2 89 88.7 0.825 2.2 2.3
IE2 MS160M-4 11 15 21.84/12.61 1460 89.1 90 89.8 0.813 2.2 2.3
IE2 MS160L-4 15 20 29.08/16.79 1460 90.2 91.1 90.6 0.825 2.2 2.3
IE2 MS90S-6 0.75 1 230/400 3.82/2.2 910 73.4 76.3 75.9 0.65 2 2.2
IE2 MS90L-6 1.1 1.5 5.25/3.03 910 77 78.8 78.1 0.673 2 2.2
IE2 MS100L-6 1.5 2 6.77/3.91 940 79.6 80.8 79.8 0.697 2 2.2
IE2 MS112M-6 2.2 3 9.69/5.59 940 80.4 81.6 81.8 0.697 2 2.2
IE2 MS132S-6 3 4 12.56/7.25 960 81 83.4 83.3 0.72 2 2.2
IE2 MS132M1-6 4 5.5 400/690 9.36/5.4 960 82.7 84.5 84.6 0.732 2 2.2
IE2 MS132M2-6 5.5 7.5 12.47/7.2 960 84.8 86.2 86 0.743 2 2.2
IE2 MS160M-6 7.5 10 16.78/9.69 970 86.4 87.5 87.2 0.743 2 2
IE2 MS160L-6 11 15 24.19/13.97 970 88.2 89.2 88.7 0.743 2 2


Performance comparison chart:

ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM
Power(kw) eff2 (nominal) eff1 (nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 79.6 82.5
1.1 76.2 83.8 81.4 84.1
1.5 78.5 85.0 82.8 85.3
2.2 81 86.4 84.3 86.7
3.0 82.6 87.4 85.5 87.7
4.0 84.2 88.3 86.6 88.6
5.5 85.7 89.2 87.7 89.6
7.5 87 90.1 88.7 90.4
11 88.4 91.0 89.8 91.4
15 89.4 91.8 90.6 92.1
18.5 90 92.2 91.2 92.6
22 90.5 82.6 91.6 93.0
30 91.4 93.2 92.3 93.8
37 92 93.6 92.7 93.9
45 92.5 93.9 93.1 94.2
55 93 94.2 93.5 94.6
75 93.6 94.7 94.0 95.0
90 93.9 95.0 94.2 95.2
110 94.5 95.4
132 94.7 95.6
160 94.9 95.8
200...375 95.1 96.0

Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm

​

Reviews from the client:

MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm

MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm

MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm

MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm

MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm

MS 3.7 KW 5 HP Three Phase Electric Asynchronous Motor 1400 Rpm

Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
