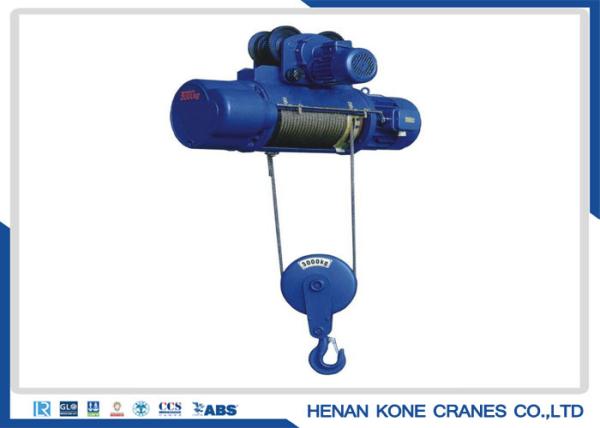

Machinery Repair Shop 220V 10 Ton Electric Hoist Winch
Machinery Repair Shop 220V 10 Ton Electric Hoist Winch
Specifications
Brand Name :
KN
Model Number :
CD
Certification :
CE,ISO
Place of Origin :
HENAN,CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs
Delivery Time :
30 work,days
Packaging Details :
Wooden box
Usage: :
Construction Hoist
Place of Origin: :
Henan, China
Condition: :
New
After Warranty Service: :
Video technical support, Online support
Applicable Industries: :
Machinery Repair Shops
Warranty: :
1 year, 1 Year
Control voltage: :
24/36/48V
Lifting height: :
3m-30m
Description

Small Electric Winch/Mini Hoist With 220V

General Introduction of electric chain hoist

Electric chain hoist is a light duty crane lifting equipment. The lifting capacity of electric chain hoist can be from 0.5 ton to 50 ton. There are total three types of electric chain hoists for you. Manual trolley electric chain hoist, fixed type electric chain hoist, electric trolley electric chain hoist. Please choose as your working environment and specific requirements.

Product Application

2 ton 5 ton 10 ton 16 ton 32 ton monorail electric hoist trolley crane


Our factory can produce 1-50 tons of wire rope electric hoist, including CD and MD type,low headroom hoist,HC type large weight and high working level,HB/BHC explosion proof type , European electric hoist and Chain hoist

The CD and MD type wire rope electric hoist is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes ,cantilever cranes, etc. It can also be used as a winch.It is widely used in factories,mines,harbors,warehouses,cargo storage areas and shops.CD has one speed,MD has two speed.

Advantage of 2 ton 5 ton 10 ton electric hoist trolley crane

1) famous brand motor ,long life time
2) durable gear .
3) fast delivery ,
4) good aftersale service .

Electric chain hoist description (as customized)

lift capacity(T) 1 1.5 2 3 5 10 20
Testing loading(T) 1.25Gn 1.25Gn 1.25Gn 1.25Gn 1.25Gn 1.25Gn 1.25Gn
Motor power(kw) 1.5 3.0 3.0 3.0 3.0 3.0*2 3.0*2
Lift speed(m/min) 6.6 8.8 6.6 5.4 2.7 2.7 1.4
Lift chain quantity 1 1 1 1 2 4 8
Chain diameter(mm) 7.1 10.0 10.0 11.2 11.2 11.2 11.2
Net weight(kg) 61 108 115 122 151 300 480
lift 1 more meter increase weight(kg) 1.1 2.3 2.3 2.8 5.6 8.4 22
Min. Distance between hooks H(mm) 650 800 800 845 1030 1400 1470
