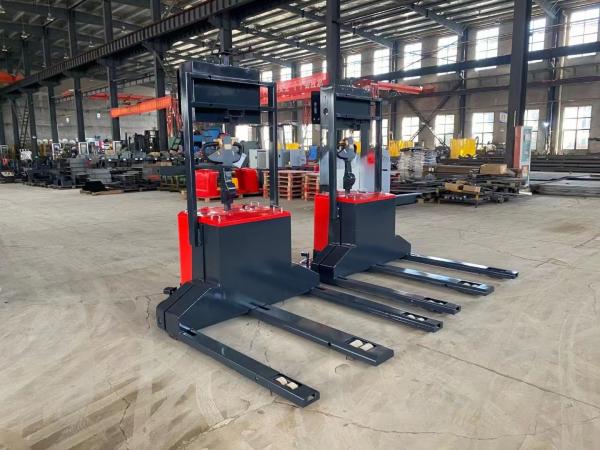

AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
AGV Automated Guided Vehicle Handing AGV Body Rated Load Capacity 2600 KG Three Forks
Specifications
Brand Name :
YONGJIELI
Model Number :
CDD
Certification :
CE
Place of Origin :
ANHUI, CHINA
MOQ :
1 SETS
Price :
USD2470.00 - USD4700.00
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
50 SETS PER MONTH
Delivery Time :
10 WORK DAYS
Packaging Details :
EXPORT PACKING
Drive Motor :
AC
Power Supply :
Battery
Tyre Material :
Polyurethane
Steering Type :
Electronic Steering
Brake System :
Electromagnetic
Brake Mode :
Lever Operation
Description

AGV forklifts are intelligent logistics handling equipment with advantages such as efficiency, accuracy, flexibility, and safety. They are widely used in warehousing, logistics, production lines, and other fields. This article will introduce the principle, characteristics, application scenarios, and development trends of AGV forklifts.

Handling AGV body
Rated load capacity: 2600kg
Number of forks: 3
Fork length: 1250mm
Fork outer width: 1500mm
Lithium battery: 25.6V160AH
CAN communication
Anti slip drive wheel
Curtis controller

Name AGV forklift body
Model CDD20J-16
Rated load kg 2000
Load center distance mm 500
wheel base mm 895
Vehicle weight kg 850
Tire type Polyurethane
Mast type Duplex mast
Number of cylinders piece 2
Bearing wheel mm 85*70
Drive wheel mm 230*75
Auxiliary wheel mm 100*50
Lifting height mm 1600
Overall length mm 1600
Overall width mm 890
Overall height (including laser fixed seat) mm 1950
Fork size mm 1150*190*65
Outside width of fork mm 780
Min. ground clearance mm 29
Turning radius (Wa) mm 1140
Right angle stacking channel width (1200*1000, 1200 horizontal) mm 2000 (+150)
Driving speed (full load/ no load) km/h 5/5.5
Lifting speed (full load/ no load) mm/s 90/120
Descent speed (full load/ no load) mm/s 140/110
Max. climbing capacity(full load/ no load) 5/8
Braking mode Electromagnetic type
Drive motor power kw 1.5
Lifting motor power kw 2 2
Lithium battery, voltage/ rated capacity v/ah 24/160
Battery weight Electromagnetic braking
Steering system Electronic steering
