Protection Arm Electric Pallet Forklift Capacity 450 KG Counter Balance Forklift
Protection Arm Electric Pallet Forklift Capacity 450 KG Counter Balance Forklift
Protection Arm Electric Pallet Forklift Capacity 450 KG Counter Balance Forklift
Protection Arm Electric Pallet Forklift Capacity 450 KG Counter Balance Forklift
Specifications
Brand Name :
YONGJIELI
Model Number :
CDD05
Certification :
CE
Place of Origin :
ANHUI, CHINA
MOQ :
1 SETS
Price :
USD2470.00 - USD4700.00
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
50 SETS PER MONTH
Delivery Time :
10 WORK DAYS
Packaging Details :
EXPORT PACKING
Name :
Electric Pallet Forklift
Power type :
Electric
Operation mode :
Walking type
Parking brake type :
Electromagnetism
Tire type (front/ rear) :
Polyurethane
Number of tires :
4/1X+1
Description

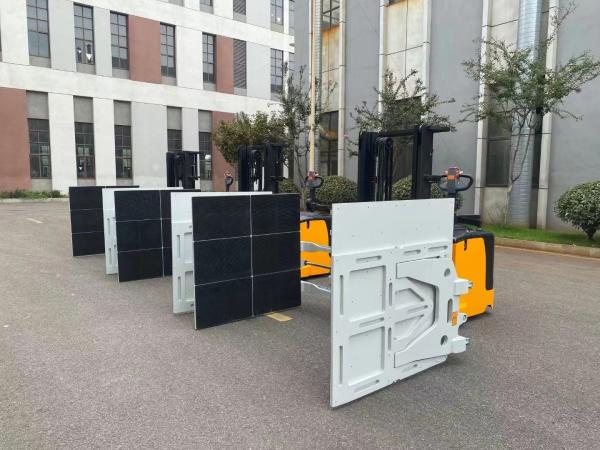

OEM/ODM Capacity 450 KG Balanced Forklift With Refrigerator Clip Electronic Steering Pedal Protection Arm

​

Lifting height: 2500mm

Arm tension range: 550-1720mm

Lateral displacement distance: ± 60mm

Plywood length: 1200mm

Plywood height: 1200mm

Electronic steering pedal protection arm

Model CDD05
Power type Battery
Operation mode Standing type
Rated load kg 450
Load center distance mm 500
Installation level and form 2A 2A
Tire type Polyurethane
Tire specification (front wheel) mm Φ210*85
Tire specification (drive wheel) mm Φ230*75
Tire specification (multidirectional wheel) mm Φ130*55
Number of tires (front/ rear) (X= drive wheel) 2/1X+2
Mast type Duplex mast
Mast tilt angle (forward tilt/ backward tilt) (optional) ° 3/5
Standard lifting height mm 2500
Free lifting height mm /
Height of mast closed mm 1830
Height of mast open (incl. blocking rack) mm 3485
Min. ground clearance mm 70
Overall length (pedal deployment/ retraction) mm 3200/2695 3300/2795
Wheelbase mm 1200 1300
Front overhang distance mm 145
Overall width (front/ rear) mm 990/ 900
Track width (front/ rear) mm 895/ 684
Fork specifications mm 1070*100*35
Outside distance of fork mm 240-700
Channel width (1000*1200 tray) (pedal unfold/ fold) mm 3420/ 3000 3510/ 3095
Turning radius (pedal unfold/ fold) mm 1920/ 1500 2010/ 1595
Walking speed (full load/ no load) km/h 4.0/5.0
Lifting speed (full load/ no load) mm/s 80/150 77/150
Descent speed (full load/ no load) mm/s 160/105 200/105
Climbing gradient (S2-5) (full load/ no load) % 6/8 5/8
Drive motor power kw 1.5
Lifting motor power kw 2.2 3
Battery (voltage/ capacity) v/ah 24/210
Battery weight kg 200
Vehicle weight (incl. battery) kg 1815 1885
Steering type Electronic steering
Parking brake type Electromagnetic braking
Battery replacement method Lifting type
