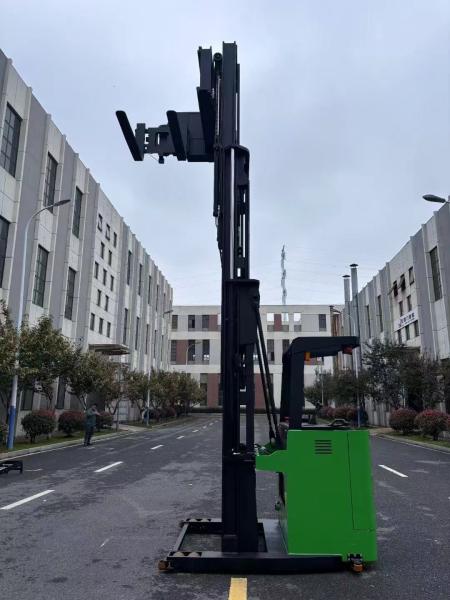

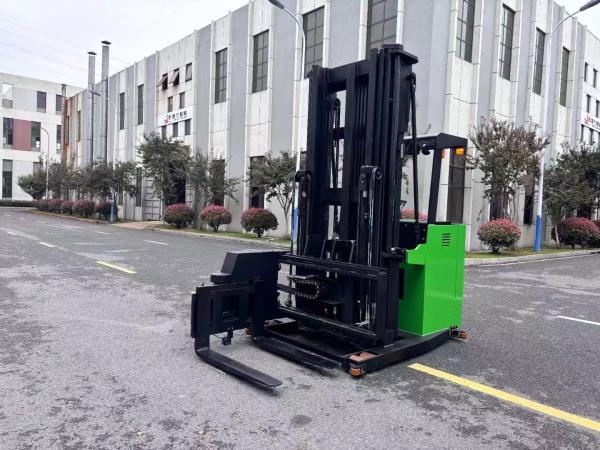

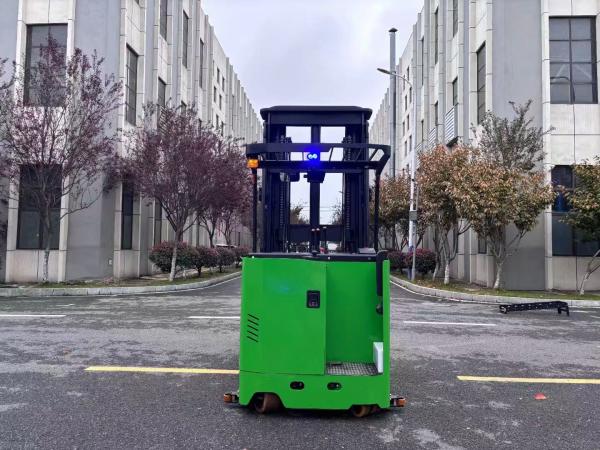

Electromagnetic Brake System Electric Forklift 5000 M Max.Lifting Height 0.1 m/s Lowering Speed
Electromagnetic Brake System Electric Forklift 5000 M Max.Lifting Height 0.1 m/s Lowering Speed
Electromagnetic Brake System Electric Forklift 5000 M Max.Lifting Height 0.1 m/s Lowering Speed
Electromagnetic Brake System Electric Forklift 5000 M Max.Lifting Height 0.1 m/s Lowering Speed
Electromagnetic Brake System Electric Forklift 5000 M Max.Lifting Height 0.1 m/s Lowering Speed
Electromagnetic Brake System Electric Forklift 5000 M Max.Lifting Height 0.1 m/s Lowering Speed
Electromagnetic Brake System Electric Forklift 5000 M Max.Lifting Height 0.1 m/s Lowering Speed
Electromagnetic Brake System Electric Forklift 5000 M Max.Lifting Height 0.1 m/s Lowering Speed
Specifications
Brand Name :
YONGJIELI
Model Number :
CSD16
Certification :
CE
Place of Origin :
ANHUI, CHINA
MOQ :
1 PC
Price :
$6800.00-$7720.00
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
50 SETS PER MONTH
Delivery Time :
30 WORK DAYS
Packaging Details :
EXPORT PACKING
Battery Capacity :
48V465AH
Brake Mode :
Lever Operation
Brake System :
Electromagnetic
Fork Length :
1070 mm
Fork Width :
570 mm
Lifting Speed :
0.08 m/s
Lowering Speed :
0.1 m/s
Max. Lifting Height :
5000 mm
Operation Mode :
Standing type
Overall Length :
1900 mm
Parking Brake Type :
Electromagnetism
Steering Type :
Electronic Steering
Travel Speed :
5.5 km/h
Turning Radius :
1650 mm
Tyre Material :
Polyurethane
Drive Control System :
CURTIS Control System
Description

Advantages of Three-Way Electric Forklifts

Space Efficiency:
Three-way electric forklifts can operate in very narrow aisles, maximizing warehouse storage capacity by reducing the space required between racks.

Versatile Operation:
The forklift's forks can rotate 180 to 360 degrees, enabling easy pallet handling from both sides without needing to reposition the vehicle, improving operational efficiency.

Energy-Efficient and Environmentally Friendly:
Powered by electricity, these forklifts produce no emissions, making them suitable for indoor use and environmentally conscious operations. Their energy efficiency also reduces operating costs.

Rated load: 1600kg
Height increase: 5000mm
Fork length: 1070mm
Battery capacity: 48V465AH
Charging voltage: 220V British standard
Pedestrian downward side standing type
Curtis Control System
Electronic steering side pull battery
Wireless camera and monitor
Walking alarm light, reversing buzzer
LED headlights, turn signals, blue light warning lights

Product parameters:

Name 3-Way Pallet Stacker
Model CSD10 CSD10SQ CSD16 CSD16SQ
Power type Storage battery
Driving mode Side stand-on type
Rated load kg 1000 1000 1600 1600
Load center distance mm 500
Front overhang distance mm 655 655 665 665
wheelbase mm 1605 1605 1700 1700
Vehicle weight (including battery) kg 4760 5270 4650 5640
Tire type (drive side/ load side) Polyurethane PU
Tire size (load-bearing side) mm Φ140×100 Φ140×100 Φ140×127 Φ140×127
Tire size (drive side) mm Φ343×135 Φ343×135 Φ400×165 Φ400×165
Number of wheels (front/ rear) (X= drive wheel) 4/1X
Track width (bearing side) mm 1210 1210 1280 1280
Closing height of gantry mm 2570 2750 2565 2823
Free lifting height mm 0 1780 0 1745
Lifting height mm 3000 4500 3000 4500
Maximum height of gantry during lifting (including blocking rack) mm 4060 5450 4040 5555
Height of roof protection frame mm 2240 2240 2260 2260
Seat height mm 1070
Overall length mm 2892 2890 3000 3000
Overall width mm 1450 1450 1550 1550
Fork size mm 1070*100*35 1070*100*35 1070*125*50 1070*125*50
Installation level Class II type B
Outside distance of fork mm 230~760 230~760 400~780 400~780
Ground clearance of gantry mm 40
Stacking channel width (pallet 1000x1200) mm 1480 1480 1600 1600
Turning radius mm 1750 1750 1850 1850
Driving speed (full load/ no load) km/h 8/9 8/9 7.5/8 7.5/8
Lifting speed (full load/ no load) mm/s 180/315
Braking mode Electromagnetic type
Drive motor power (S2-60min) kw 4.5 AC 4.5 AC 5.5 AC 5.5 AC
Lifting motor power (S3-15%) kw 6.3 DC 6.3 DC 8.6 AC 8.6 AC
Battery, voltage/ rated capacity v/ah 48/400 48/400 48/420 48/420
Battery weight kg 675 675 740 740
Steering system Electronic steering
Battery replacement method Side pull type
