2500 KG 2.5 Tons Load Capacity Special Paper Roll Handling Equipment
2500 KG 2.5 Tons Load Capacity Special Paper Roll Handling Equipment
2500 KG 2.5 Tons Load Capacity Special Paper Roll Handling Equipment
2500 KG 2.5 Tons Load Capacity Special Paper Roll Handling Equipment
2500 KG 2.5 Tons Load Capacity Special Paper Roll Handling Equipment
2500 KG 2.5 Tons Load Capacity Special Paper Roll Handling Equipment
2500 KG 2.5 Tons Load Capacity Special Paper Roll Handling Equipment
2500 KG 2.5 Tons Load Capacity Special Paper Roll Handling Equipment
Specifications
Brand Name :
YONGJIELI
Model Number :
CBD25
Certification :
CE
Place of Origin :
ANHUI, CHINA
MOQ :
1 PC
Price :
$2800.00-$3800.00
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
50 SETS PER MONTH
Delivery Time :
10 WORK DAYS
Packaging Details :
EXPORT PACKING
Fork Length :
1400 mm
Paper Roll Diameter :
1270 mm
Battery Capacity :
24V210AH
Load Capacity :
2500 KG
Lift Stroke :
140 mm
Description

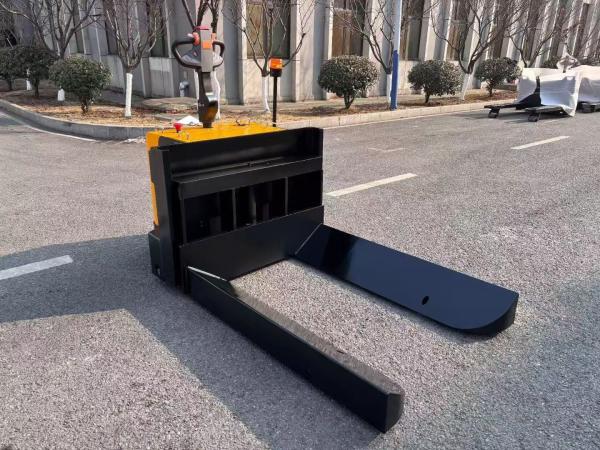

Special paper roll handling equipment
Rated load capacity: 2500kg
Fork length: 1400mm
Paper roll diameter: 1270mm
Lift stroke: 140mm
Battery capacity: 24V210AH
Charging voltage: American standard 110V
Electronic steering walking style

Advantage:

  • Double oil cylinders
  • Brand drive control system
  • Multifunctional integrated handle
  • Mechanical steering, portable
  • Integral low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting power limit, extending the service life of hydraulic motor and battery
  • Omron inductive microswitch

Safety:

  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device

Product parameters:

Name Electric pallet truck
Model CBD25
Load kg 2500
Load center mm 600
Minimum ground clearance mm 90
Maximum ground clearance mm 200
Driving mode Walking type
Overall width mm 780
Overall length mm 1790
Fork outer width mm 685/560
Maximum height of handle from the ground mm 1275
Turning Radius mm 1645
Fork size mm 1150*175*70
Right angle stacking channel (1200 x1000mm) mm 2425
Traveling speed (loaded/ unloaded) mm/s 3.5/4
Lifting motor (S3-15%) kw 0.8
Travel motor (S2-60min) kw 1.5
Braking form Electromagnetic braking
Steering form Mechanical steering
Body weight kg 600
Battery weight kg 200
Climbing gradient (full load/ no load) % 5/8
Battery capacity v/ah 210
Charger v/a 30
Number of tires (front/ rear) (X= drive wheel) 4/1X+2
Drive wheel mm Φ230*75
Bearing wheel mm Φ85*70
Auxiliary wheel mm Φ100 *50
Lifting speed (full load/ no load) mm/s 27/35
Falling speed (full load/ no load) mm/s 35/35
Tire type Polyurethane
Battery replacement method Lifting type

The company reserves the right to change the product design and planning, and the parameters are subject to change without notice

FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 5 years.

Q2: How about the delivery time?

A2: About 30 days based on different model. For some standard products, we may have stock and could delivery immediately.

Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.

Q4: Can you provide OEM service?

A4: Yes. We can provide OEM and ODM service.
