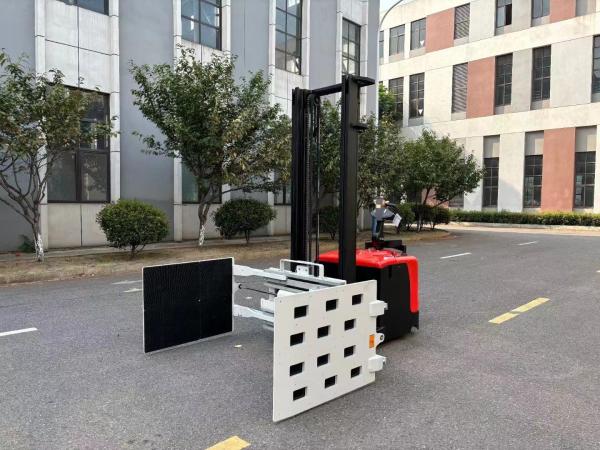

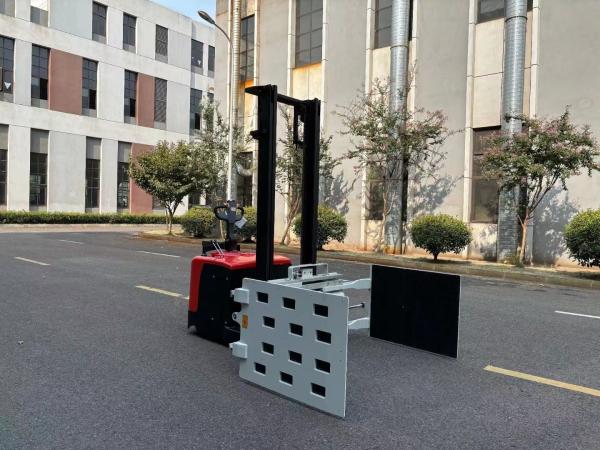

200KG Electric Forklift Truck for Clamping Carton or Wooden Case 4000mm Lifting Height
200KG Electric Forklift Truck for Clamping Carton or Wooden Case 4000mm Lifting Height
200KG Electric Forklift Truck for Clamping Carton or Wooden Case 4000mm Lifting Height
200KG Electric Forklift Truck for Clamping Carton or Wooden Case 4000mm Lifting Height
200KG Electric Forklift Truck for Clamping Carton or Wooden Case 4000mm Lifting Height
200KG Electric Forklift Truck for Clamping Carton or Wooden Case 4000mm Lifting Height
Specifications
Brand Name :
YONGJIELI
Model Number :
CSD
Certification :
CE
Place of Origin :
ANHUI, CHINA
MOQ :
1 SETS
Price :
USD2470.00 - USD4700.00
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
50 SETS PER MONTH
Delivery Time :
30 WORK DAYS
Packaging Details :
EXPORT PACKING
Rated Load :
200 kg
Max.Lifting Height :
4000 Kg
Arm Range :
500-1700 Mm
Lithium Batter :
25.6V160AH
Charging Voltage :
220V60HZ
Description

Main Features:
1.Pallet stacker use Maintenance-free high-power AC drive system which provide reliable driving power. The 210AH large-capacity battery gives strong endurance;
2.Standard CURTIS series controller is reliable and durable. AMP waterproof and dust proof plug-in which provides reliable protection for the line and greatly reduces electrical faults;
3.Station board type, pure electronic steering, integrated joystick. It is safe, labor-saving, flexible operation;
4.The newly designed floating suspension system makes the steering operation more flexible and convenient;
5.The forklift adopts 5 points low gravity design and the frame is made of high-strength steel plate frame structure, which has large spare capacity and long service life.

Product parameters:

Model CDD10BCDD15B
Power type Battery
Operation mode Standing type
Rated loadkg10001500
Load center distancemm500
Installation level and form 2A2A
Tire type Polyurethane
Tire specification (front wheel)mmΦ210*85
Tire specification (drive wheel)mmΦ230*75
Tire specification (multidirectional wheel)mmΦ130*55
Number of tires (front/ rear) (X= drive wheel) 2/1X+2
Mast type Duplex mast
Mast tilt angle (forward tilt/ backward tilt) (optional)°3/5
Standard lifting heightmm2500
Free lifting heightmm/
Height of mast closedmm1830
Height of mast open (incl. blocking rack)mm3485
Min. ground clearancemm70
Overall length (pedal deployment/ retraction)mm3200/26953300/2795
Wheelbasemm12001300
Front overhang distancemm145
Overall width (front/ rear)mm990/ 900
Track width (front/ rear)mm895/ 684
Fork specificationsmm1070*100*35
Outside distance of forkmm240-700
Channel width (1000*1200 tray) (pedal unfold/ fold)mm3420/ 30003510/ 3095
Turning radius (pedal unfold/ fold)mm1920/ 15002010/ 1595
Walking speed (full load/ no load)km/h4.0/5.0
Lifting speed (full load/ no load)mm/s80/15077/150
Descent speed (full load/ no load)mm/s160/105200/105
Climbing gradient (S2-5) (full load/ no load)%6/85/8
Drive motor powerkw1.5
Lifting motor powerkw2.23
Battery (voltage/ capacity)v/ah24/210
Battery weightkg200
Vehicle weight (incl. battery)kg18151885
Steering type Electronic steering
Parking brake type Electromagnetic braking
Battery replacement method Lifting type



FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift for more than 5 years in China.

Q2: How about the delivery time?
A2: About 30 days based on different model. For some standard products, we may have stock and could delivery immediately.

Q3: Is customized solution available?
A3: Yes, we can provide different non-customized solution.

Q4: Can you provide OEM service?
A4: Yes.We can provide ODM and OEM serive.
