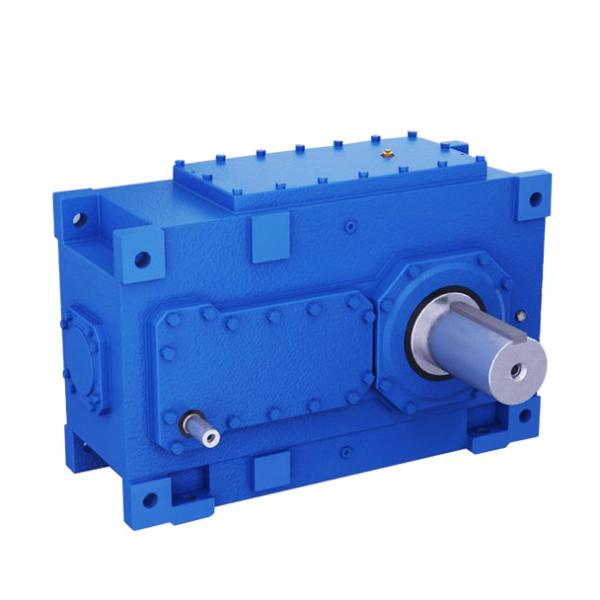

H Type Parallel Shaft Bevel Helical Gearbox High Torque Large Gear Ratio
H Type Parallel Shaft Bevel Helical Gearbox High Torque Large Gear Ratio
Specifications
Brand Name :
Dongtai
Model Number :
DT-H
Certification :
ISO 9001:2016
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
L/C, D/A, T/T
Supply Ability :
6000 sets per month
Delivery Time :
15-30 days
Packaging Details :
The products will be packed in the wooden case or pallet
Product Name :
H Type Parallel Shaft High Torque Large Gear Ratio Industrial Heavy Duty Helical Gearbox
Input Speed :
700-2000rpm
Output Speed :
1-200rpm
Material of housing :
HT250 cast iron
Material of gear :
20CrMnTi with high precision grinding
gear surfcae finishing :
between16.-3.2μm
Gearing Arrangement :
Helical
Customized support :
OEM, ODM
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Lubricant :
Shell Omala220 or equivalent
Warranty :
1 year
Description

H Type Parallel Shaft High Torque Large Gear Ratio Industrial Heavy Duty Helical Gearbox

Henan Dongtai Gear Co., Ltd is a famous and experienced manufacturer in China. Our business focus on the high precision gears, gearbox, gear reducer, gear motor, and other mechanical transmission spare parts. Our products have been exported to Europe, Southeast Asia, the Middle East, Africa, South America and many other countries and regions. They are widely used in crane hoist, paper-making, chemical industry, light industry, machine manufacturing, food line, architecture material, wiring, mines, etc. Our products have the excellent quality and high stability, the advanced performance and competitive prices.

Simply select the ideal gear unit for your requirements and benefit from the advantages offered to you by our standard range. The high quality, the fast availability worldwide, and the attractive price level are the main strengths of this range of gear units. Horizontal or vertical mounting positions, different versions of helical, bevel and bevel-helical gear units, and the compact design of our gear units give you maximum flexibility in the design of your plant.

Product Description

The H series helical gear reducer has sound-absorbable structure, larger surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficiently.

H Type Parallel Shaft Bevel Helical Gearbox High Torque Large Gear Ratio

1.H series gear units adopt currency layout and may transform into special reducer according to customer's requirement.

2. The housing of one size can realize parallel shaftmodes and horizontal mounting modes.Variety of components is reducible, the number of reducer's mode is augmentable.

3. Sound-absorbable structure, lager surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficeintly.

4.Input mode : motor connected flange ,shaft input.

5. Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk, hollow or solid shaft with involute splines , solid shaft with flange.

6. Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, torque-arm-mounted.H Type Parallel Shaft Bevel Helical Gearbox High Torque Large Gear Ratio

Housing material High-strength cast iron HT250
Gear material 20CrMnTi
Input Power 0.12-200KW
Output Torque 3.5-21700N.m
Output Speed 5-371 RPM
Gear Accuracy 7 to 6 level
Gear Surface hardness HRC58°-62°
Input/Output shaft hardness HB220-250
Noise(Max) 60-70dB
Tem.rise(Max) 40°C
Tem.rise(Oil Max) 50°C
Vibration ≤20um
Backlash ≤20Arcmin
Effeciency Single stage 98%, Double-stage:96%, Three-stage:94%
Mounting Position Foot / Flange Mounting
Motor IP55,F Class

Features

1. Big Volecity- Reducing Ratio:Ratio of single-stage speed-reducing is 1/11-1/87; Ratio of double stage speed-reducing is 1/112-1/5133;Ratio of three-stage speed-reducing is 1/2057-1/446571;more-stages can be combined according to the requirement.
2. High driving efficiency:Due to adopting rolling engagement in falling-in part, the driving efficiency can reach above 90%.
3. Small in size, light weight: with compacted structure,small size and light weight. Due to adopting the principle of planet driving so that the input and output shaft in the same axis which will integrated with the motor.
4. Long service life: Has good resistance to abrasion because the main driving engaging parts are made of bearing steel and applying rolling friction.
5. Stable running: for most driving procedure, we adopt multi-teeth falling-in. Then the running will be stable with low noise.Tianqi H B Helical gearbox for cement and food industry.
6. Convenient dismounting:reasonable structure and design.
7. Strong overloading ability,anti-compact,suitable for frequently start and double-side rotation.

Main applied for

H Type Parallel Shaft Bevel Helical Gearbox High Torque Large Gear Ratio
