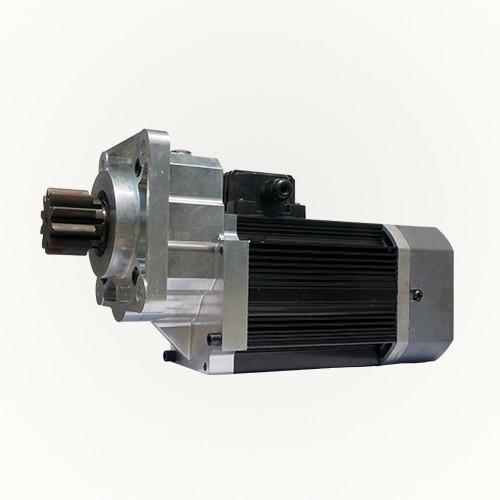

10 Ton European 1800RPM Electric Hoist Motor With Aluminum Gearbox
10 Ton European 1800RPM Electric Hoist Motor With Aluminum Gearbox
10 Ton European 1800RPM Electric Hoist Motor With Aluminum Gearbox
10 Ton European 1800RPM Electric Hoist Motor With Aluminum Gearbox
Specifications
Brand Name :
Dongtai
Model Number :
DTQ-10T
Certification :
ISO 9001:2016
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
T/T, L/C
Delivery Time :
15-30 days
Packaging Details :
Wooden case or pallet
Product Name :
10 Ton European Electric Hoist Operating Drive Unit Motor With Aluminum Gearbox
Gearing Arrangement :
Parallel Shaft Helical Gearbox
Output Torque :
≤5000 Nm
Input Speed :
≤1800RPM
Housing Material :
Aluminum Steel
Gear material :
Alloy Steel 20CrMnTi
Motor power :
16kw
Gear ratio :
216.6
Applicable Industries :
Electric Hoist and Cranes
Description

10 Ton European Electric Hoist Operating Drive Unit Motor With Aluminum Gearbox

Product Description

GF Hoist drive units lift loads between 3.2 t and 40 t with absolute safety and reliability.A compact lifting drive system of wire rope hoist is designed according to FEM standard. Aluminum three-stage parallel shaft gear motor, directly installed on the drum.

High power lifting motor with double side safety brake. Simple assembly through standard interface.

1.Lifting weight: 3ton-40 tons

2. the lifting speed is 0.66-8m / min.

3.output shaft: Din5480 involute spline solid shaft.

4. lifting mode: double speed control / variable frequency control, power 0.45 ~ 38 kW.

5.Drum diameter: 140mm

6.protection grade: Motor IP54, brake IP54

7.the normal working environment temperature of reducer is: - 20 ℃ º C+50 º C

10 Ton European 1800RPM Electric Hoist Motor With Aluminum Gearbox

Features

FEM standard, a compact lifting reducer of wire rope hoist is designed.

Three-stage parallel shaft gear reduction,

Aluminum motor and gearbox shell,

Lower noise,

Light weight and good cooling characteristics,

Direct installation and drum.

Motor:high power lifting motor with double-sided brake.

Assemble:it is connected with the bracket through the standard interface, and the assembly is simple.

Technical parameters

Type of motor 12/2-pole or inverter duty
Rated output Up to 38 kW
Type of gearbox 3-stage aluminium parallel shaft gearbox
Lifting speeds 4 / 5 / 6.3 / 8 m/min at reeving 4/1
Protection class IP 54/IP55(optional IP65)
Cooling Self- or forced cooling
Design Acc. to FEM


Application

10 Ton European 1800RPM Electric Hoist Motor With Aluminum Gearbox

Product advantages

Light weight - low transportation cost and convenient installation

High efficiency - energy saving

Compact design saves space

Long wheelbase for easy installation

Dynamic acceleration characteristics - large starting and limiting torque

Safe braking with double friction surfaces - stable and safe braking

Integrated design of drum bearing support and lifting drive system

Packing

10 Ton European 1800RPM Electric Hoist Motor With Aluminum Gearbox

Tag:European Electric Hoist, Aluminum motor and gearbox shell
